SPECIFICATIONS

Anilox roller: Ceramic Anilox Roller

Control Type: Android

Ink: Wated Based Ink

Keyword: Flexografic Printing Machine

Number of Colors: 4-Color

Printing Width: 320mm

Printing material: Adhesive Paper

Product name: 4 Color Flexo Printing Machine

Type: Flexographic Printer

automatic grade: Semi-Automatic

brand name: henghao

color & page: Multicolor

condition: New

dimensions(l*w*h): 2600mmX1300mmX2250mm

place of origin: Zhejiang, China

plate type: Flexographic

structure: Stack

usage: Paper Printer,Label Printer,Bill Printer,Laser Paper Printer

voltage: 380V/220V

warranty: 1 Year

weight: 3000

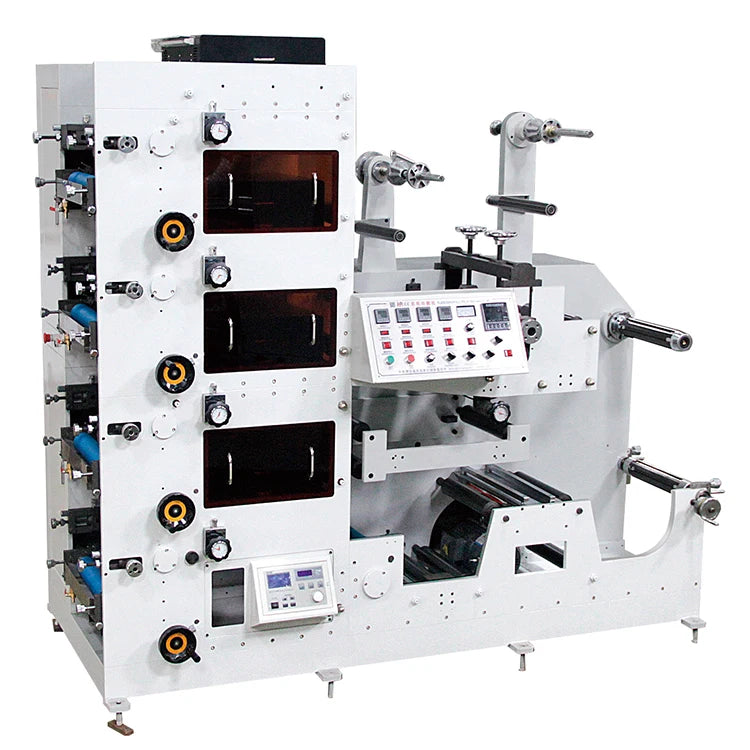

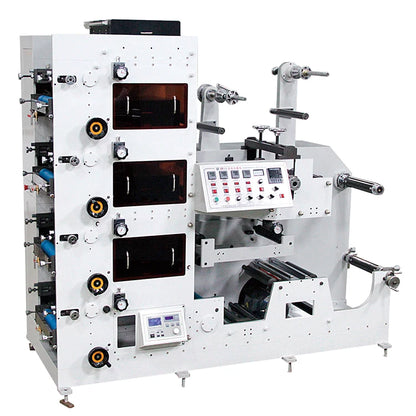

RY-320 Label Flexo Printing Machine

Mainly used for paper product printing, labels, stickers, coated paper, aluminum foil, paper bags, etc.

Main Feature

1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and long using life, etc. It can improve the printing efficiency. 2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type. 3. Printing unit of the flexo printing machine adopt 360º to regulate for registration. 4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional. 5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried. 6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion. 7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material. 8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label,paper cup, aluminum foil, plastic film, etc.

Specification

Machine model	HH-RY320-4C
Machine color quantities	4 colors
Maximum printing width	320mm
Maximum web width	330mm
repeat printing length	175-380mm
Total power	about 15kw
Registering precision	±0.15mm
Die cutting station	one set
Waste rewinding device	one set
laminating device	one set
Total air pressure	0.6MP
Voltage	380V/220V
Machine weight	3000kg
23Machine dimension	2600mmX1300mmX2250mm

Printing Sample

Product Description

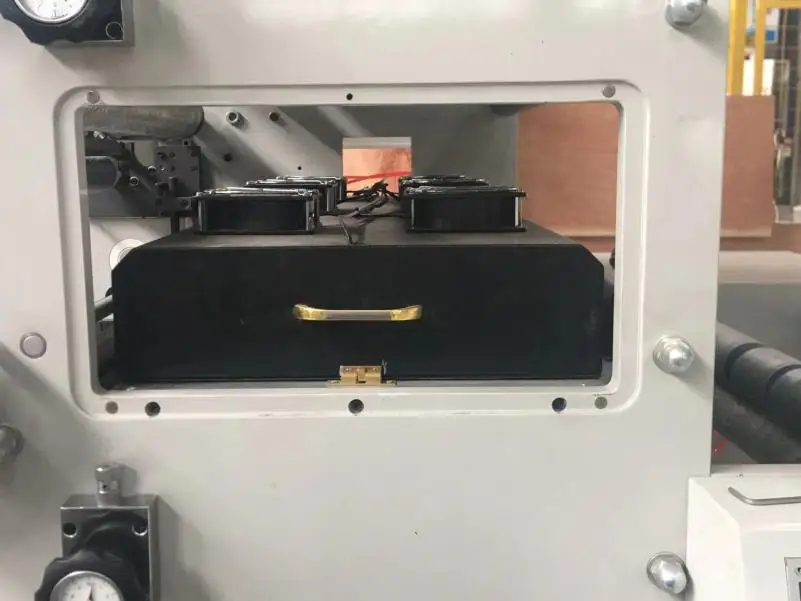

IR dryer

1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven. 2).Infrared Heating Drying Oven is placed on material and after each printing station.

Die cutting station

it need use combination of flexible die and magnetic cylinder to cut various type shape of adhesive sticker, or final product is sheet type, also need this device, but need extra purchase flexible die and magnetic cylinder.

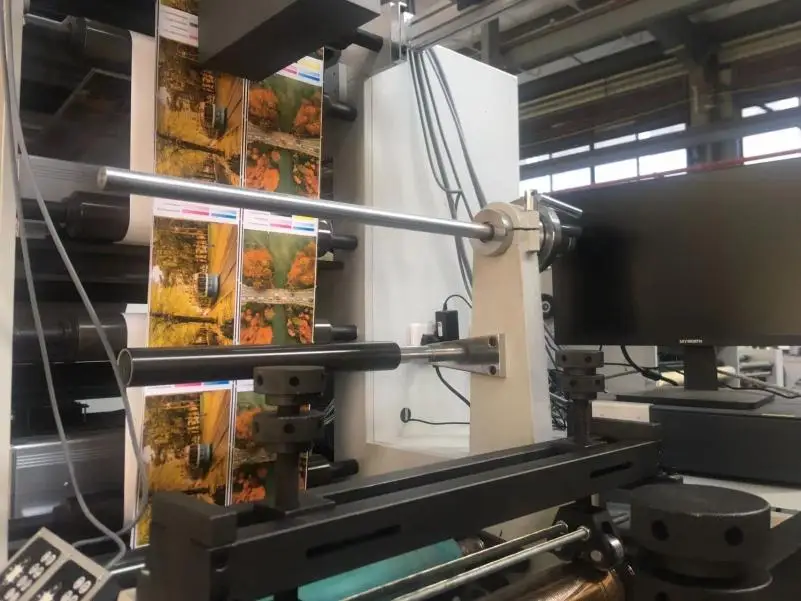

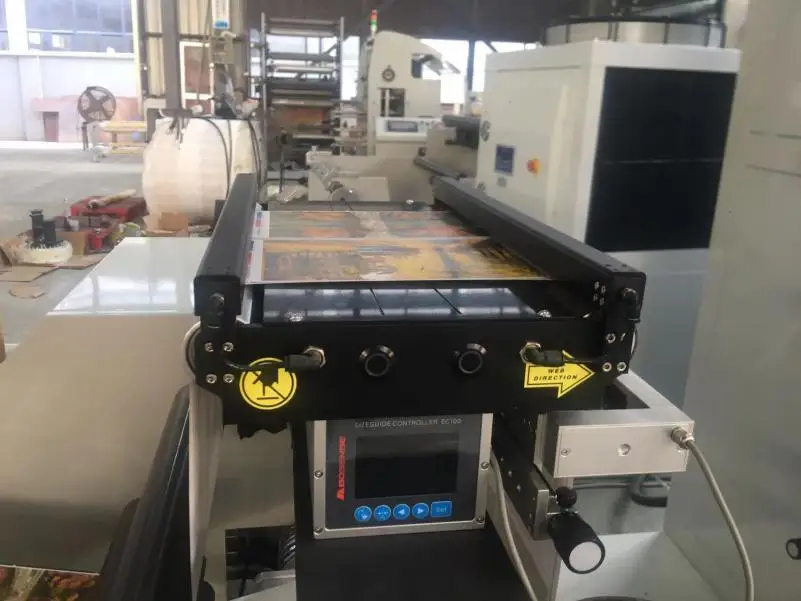

web guide

can control material go straightly,then output final product with good edge.

control panel

1).Power Supply, Stop Button, Start Button and Emergency Stop. 2).Temperature Controller for each Heating Oven. 3).Anilox Roller Rotation Button for each Printing Station. Length Counter and Speed Controller 4)bottom roller tension control

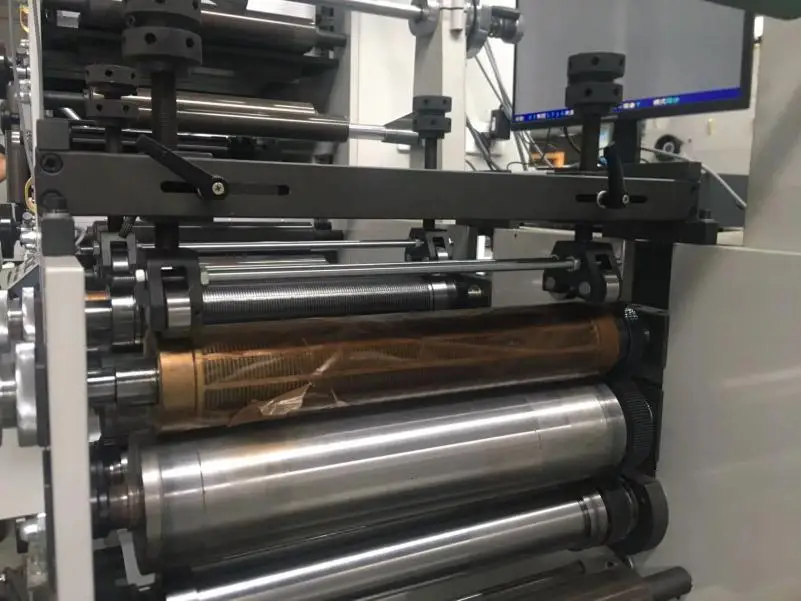

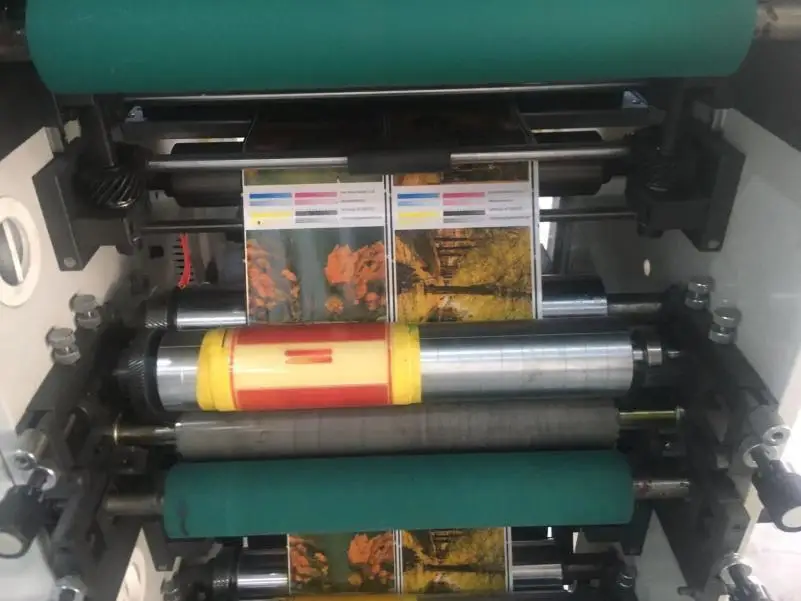

printing unit

Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Containe,depend roller, with Helical Gear

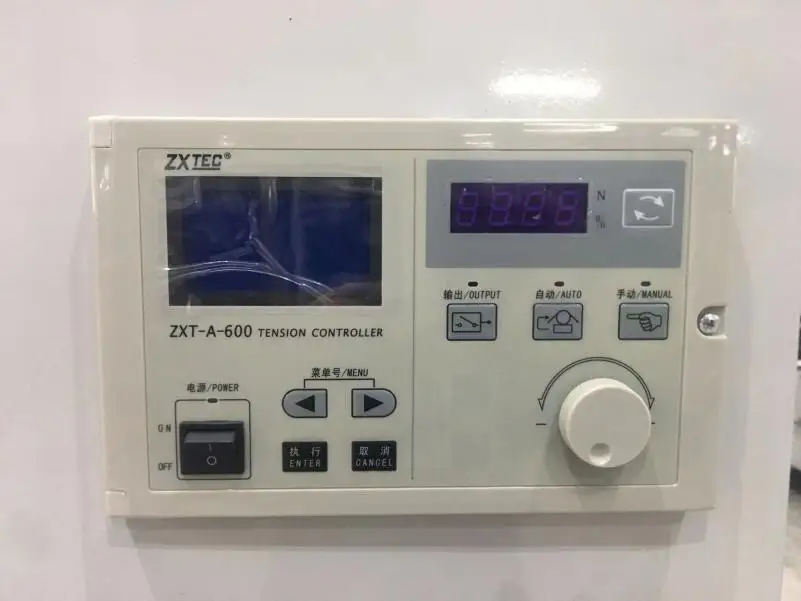

Automatic constant tension control

tension is control pulling material tight or loose.machine come with two Set Auto Constant Tension Controller For Unwind and Rewinding.

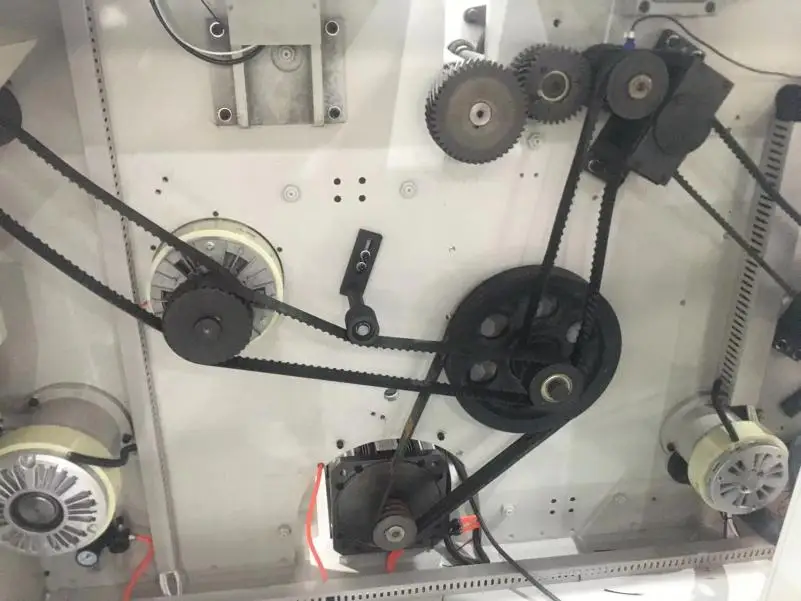

magnetic brake and clutch

1) Machine has two pcs magnetic brake on unwinding, one is control unwinding roller, another is control bottom roller. this can be increased resistance, can be better to controlled material tension.For rewinding, it has one pcs magnetic clutch. 2)Machine Drive By Synchronous Belt. Low Noise and Stable Operation

laminating device

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Company Information

Certifications

Packing & Delivery

FAQ

Q1:Are you a factory or trading company? A1: We have more than 15years experience in the line of printing&package, so we are actual professional factory,welcome you visit our factory views and see machine running.

Q2:Where is your factory located? How can I visit there? A2: Our factory is located at No. 1, Jiangxin Road, the second phase of Dingshan, Zhixin industrial area,Shangwang street, Ruian City, Zhejiang Province, China. It takes about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: How about payment terms? A3:For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.

Q4: Which industries are widely used in of your machine? A4: Those are mainly used in printing, die cutting, stamping ,etc on various raw material such as paper cup, paper bag,plastic bag, plastic film, adhesive tape,etc in the maket.

Q5: What about your main market? A5: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.

Q6:What about the service after sale? A6:One year warranty. if the machine has some problems, our engineers can go abroad to teach your worker how to operate,and also provide online guide work.

Q7:What about warranty and do the engineers available to overseas? A7: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
