SPECIFICATIONS

Application: Carton,For Paper,For Bags,For Plastic Film,Label

Control Type: PLC

Key Selling Points: Multi Color

Label: Adhesive,Paper,Plastic

Machine dimension: 4600mm*1900mm*2200mm

Machine weight: 3500kgs

Maximum printing width: 830mm

Maximum web width: 850mm

Number of Colors: 8-Color

Printing color: 4 Colors

Printing size: 175-370mm

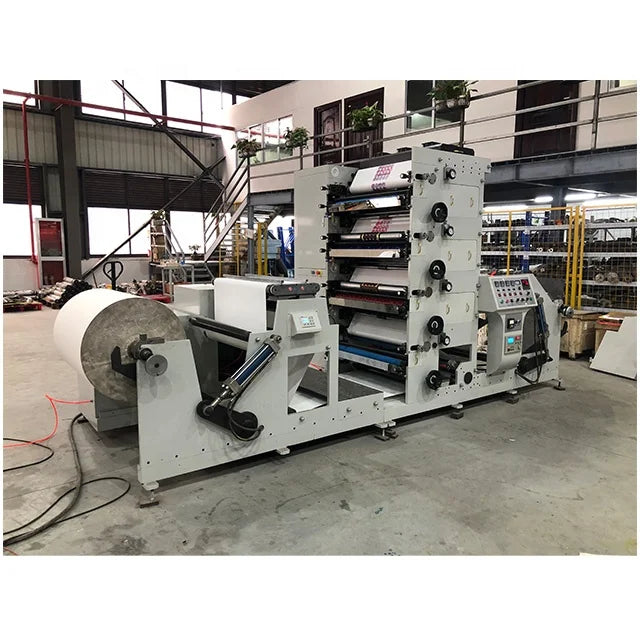

Product name: 4 colors flexo printing machine

Type: Flexographic Printer

Voltage: 380V 50HZ 3PHSE

Warranty of core components: 1 Year

automatic grade: Automatic

brand name: HENGHAO

color & page: Multicolor

condition: New

dimensions(l*w*h): 4600mm*1900mm*2200mm

place of origin: Zhejiang, China

plate type: Flexographic

print speed: 60-80m/min

structure: Stack

usage: Paper Printer,Label Printer,Card Printer,Bill Printer,Plastic Bag

voltage: 380V/220V

warranty: 1 Year

weight: 3500

PRODUCT SPECIFICATIONS

Machine model	HH-RY850-4C	HH-RY950-4C	HH-RY1000-4C
Machine color quantities	4 colors
Printing speed	55-60m/min
Maximum web width	860mm	950mm	1010mm
Maximum printing width	850mm	940mm	1000mm
maximum unwinding diameter	1300mm
printing size	175-380mm
Total power	about 45kw	45kw	50kw
Registering precision	±0.10mm
Total air pressure	0.6-0.8MP
Voltage	380V±10%
Machine weight	4500KG	5000KG	5500KG
Machine dimension	4800*2050*2250mm	4800X2150X2250mm	4800X2200X2250mm

FEATURE

This is an economical and environmental friendly printer for printing thermal paper, cup paper, use water basic ink, you can get different printing size and quality by changing printing cylinders and anilox rollers, so the printing quality can reach your demand.

Machine Configuration

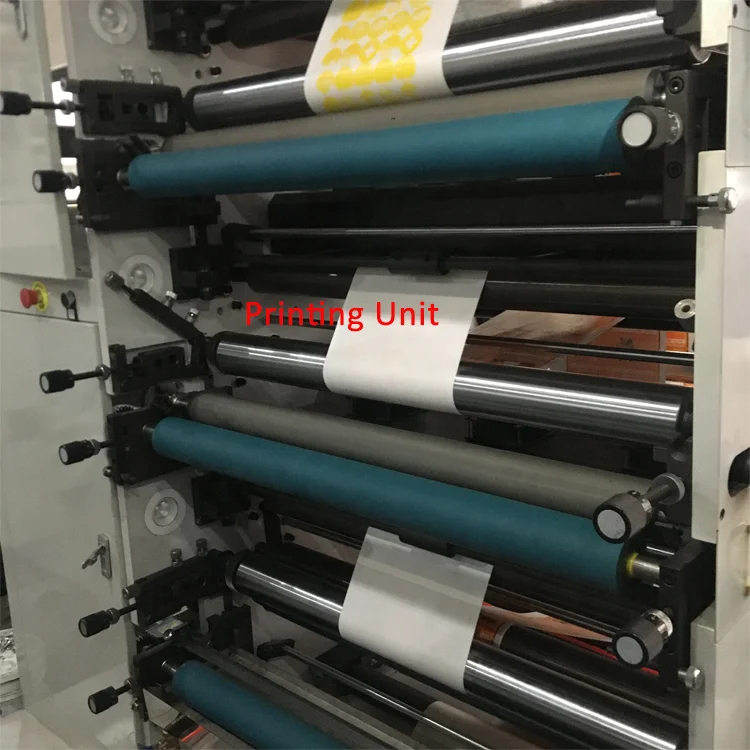

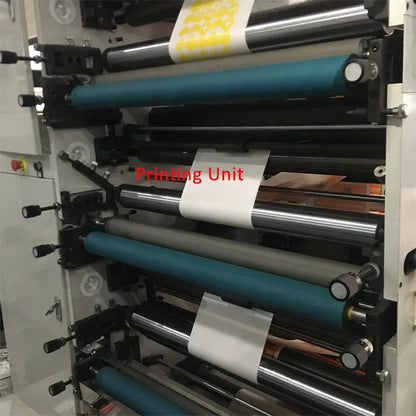

printing unit

Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Containe,platen roller, with Helical Gear

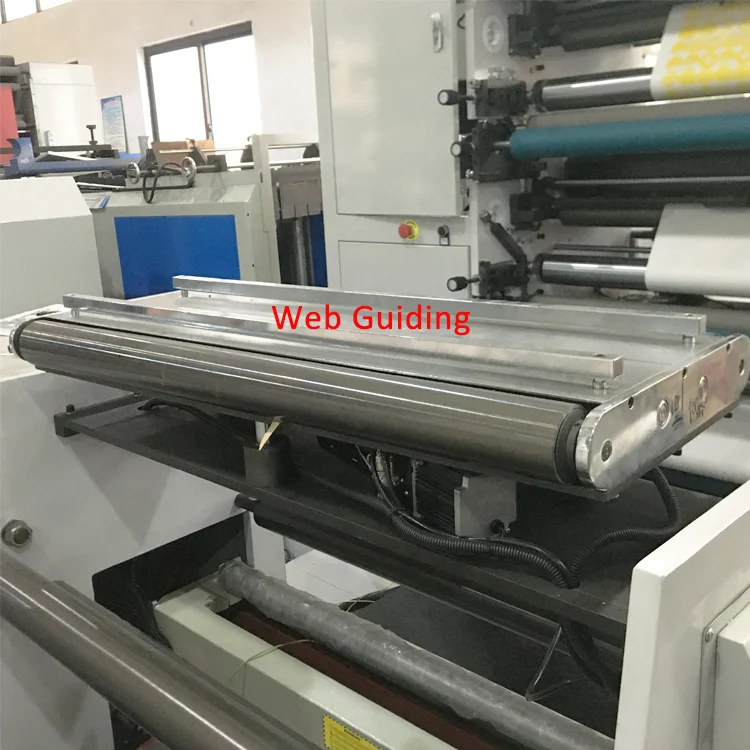

web guide

can control material go straightly,then output final product with good edge.

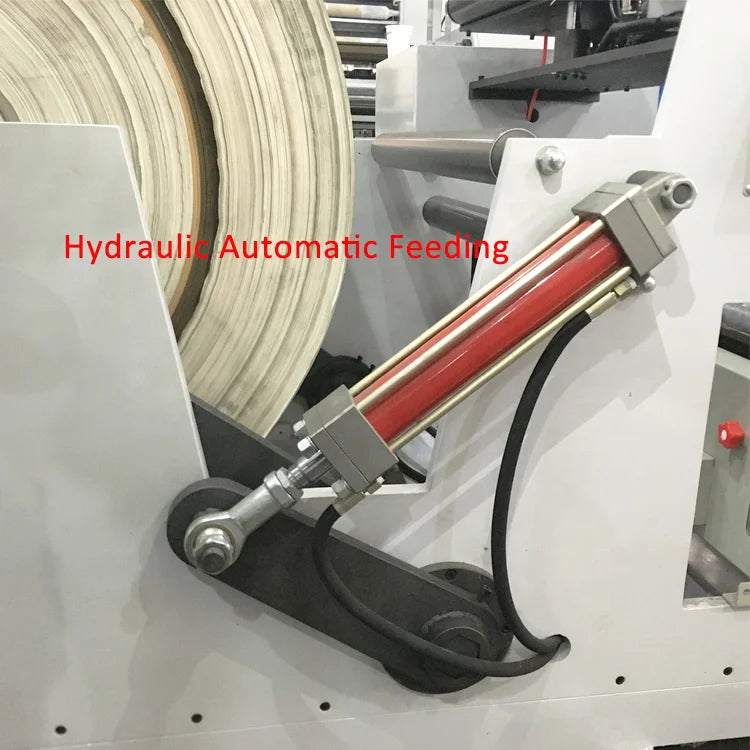

hydraulic lifting and uploading system

Whatever raw material weight is heavy or light, it doesnt need labor to move to unwinding location, it can automatically lift to unwinding location.

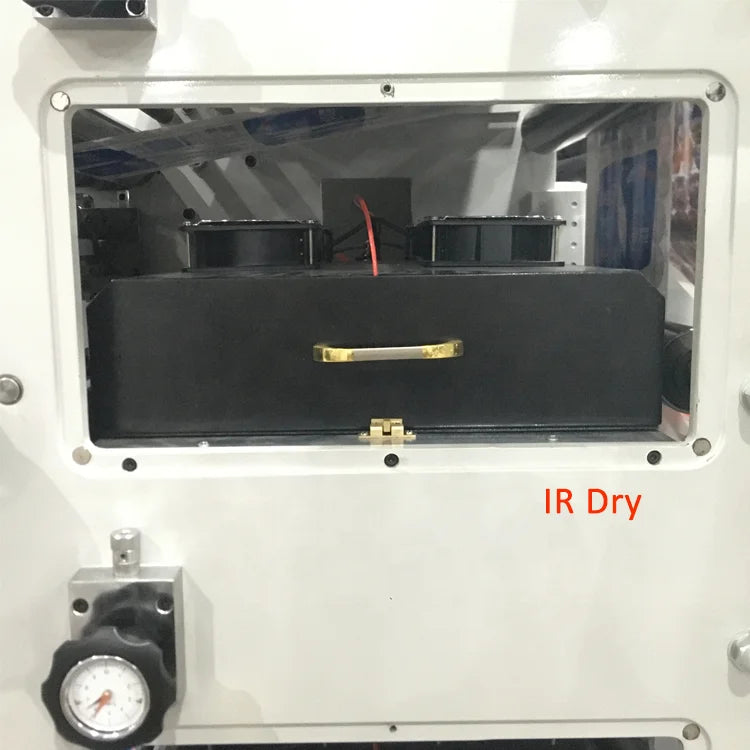

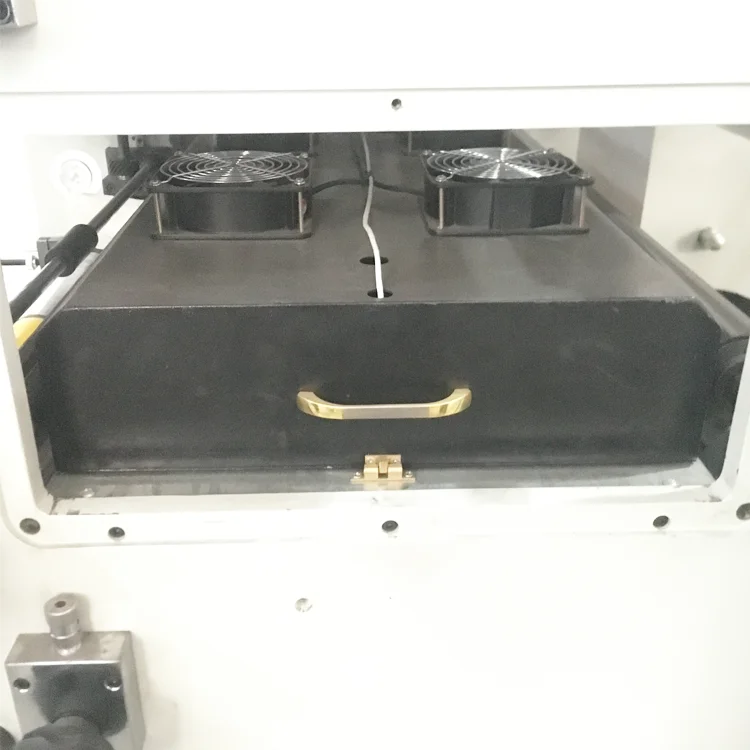

IR dryer

1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.

Packing & Delivery

MAIN PRODUCTS

Company Profile

ABOUT US

WENZHOU HENGHAO MACHINERY CO.,LTD is located in water town of the south of ZHEJIANG province WENZHOU RUIAN CITY. Our selling market is around whole world,such as middle south asia , middle east, south America, Europe, etc. countries and regions.

Our factory is mainly specializing in selling various type of flexographic printing machine , die cutting machine, slitting rewinding machine, stamping machine, other automatic equipment,etc. Also we can make customized machine based on client's requirement.

Our machine can use different type raw material based on client requirement such as paper coated pe, kraft paper, thermal paper, greaseproof paper, double silicon paper,PVC film, bopp film, different type adhesive tape,etc.

For aftersales, We have a professional technical team with rich experience in machine, not only can provide engineer go to abroad to teach worker how to operate machine and online guide worker, but also provide new part in warranty period while the parts has broken.

Our factory advantage is that high quality product, fast production time, rich experience, quickly sales before and after, also has Ce certificate support.

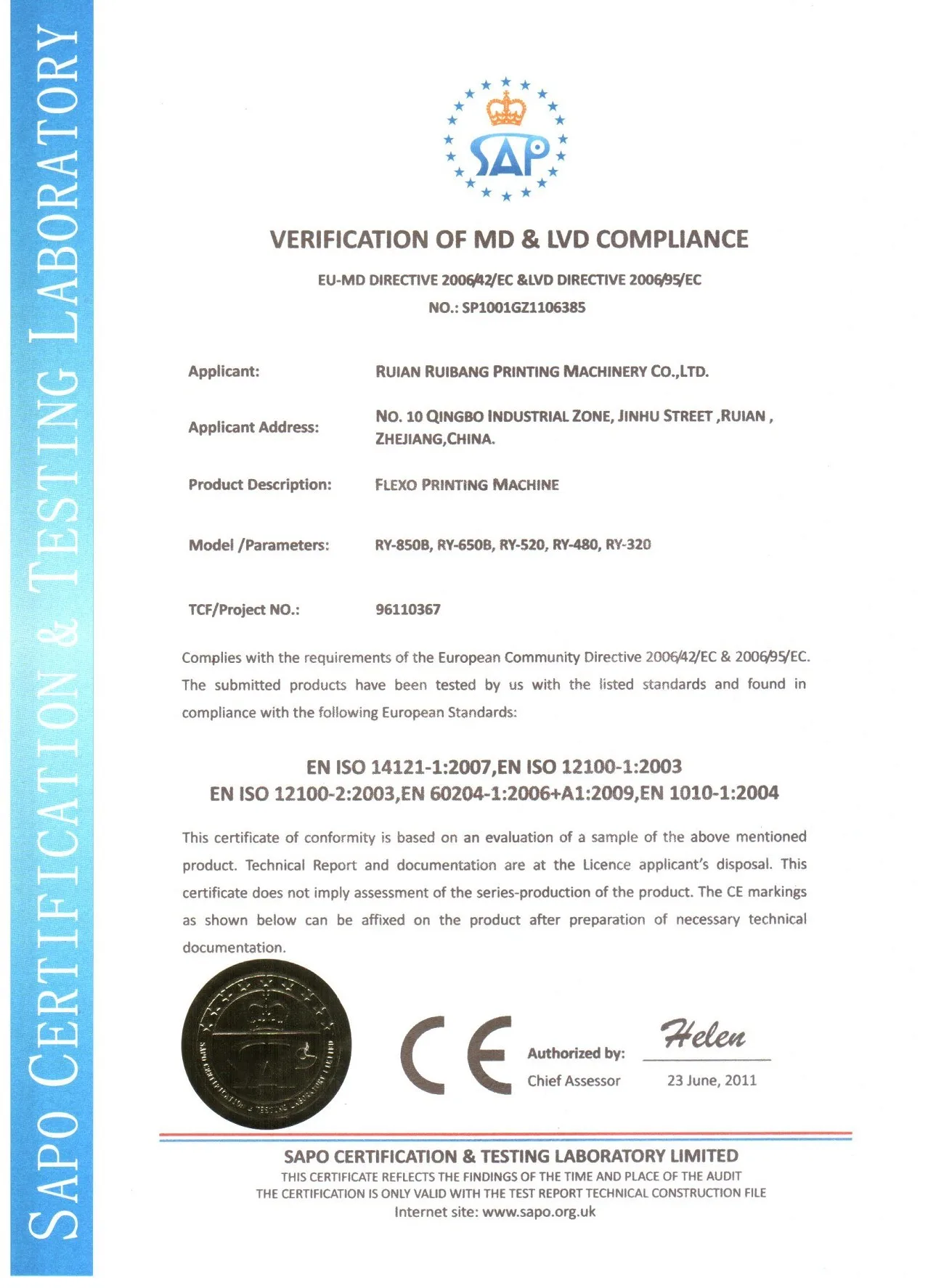

Certifications

Exhibition

FAQ

Frequently Asked Questions (FAQs) for Multi-Color Flexo Printing Machine for Paper, Plastic & Foil

1. What types of packaging materials can this multi-color flexo printing machine handle?
This machine is suitable for various substrates such as paper rolls, PP woven fabric, PE, BOPP, PET plastic films, and aluminum foil — ideal for flexible food packaging, snack bags, and wrapping materials.
-------------------------------------------------------------------------------------------------------------------
2. How many printing colors can I choose from?
You can select 2, 4, 6, or 8 color configurations depending on your printing needs. Each unit ensures stable color registration and consistent print quality for detailed designs.
-------------------------------------------------------------------------------------------------------------------
3. Can this flexo printer be used for food-grade packaging?
Yes, it is widely used in food packaging printing. It supports water-based or solvent-based inks, both compliant with food safety standards when using certified materials.
-------------------------------------------------------------------------------------------------------------------
4. What is the printing width range for this model?
We can customize the printing width from 650mm up to 1300mm or more to fit your packaging roll size and production capacity.
-------------------------------------------------------------------------------------------------------------------
5. Is the machine compatible with aluminum foil and other heat-sensitive films?
Yes! The drying system can be configured for temperature control, making it suitable for metallic foils and thin plastic films without distortion.
-------------------------------------------------------------------------------------------------------------------
6. What kind of drying and ink system does this machine use?
It comes with a hot-air drying system for water-based inks, and UV curing units can be optionally added for UV inks, ensuring efficient and clean drying.
-------------------------------------------------------------------------------------------------------------------
7. Can I use this flexo printer for high-speed mass production?
Definitely. This machine supports speeds up to 150–180 meters per minute, designed for long-run, continuous printing with roll-to-roll operation.
-------------------------------------------------------------------------------------------------------------------
8. How does the machine maintain color consistency during production?
Each color station has a 360° registration control system, along with precision tension control and automatic ink circulation for stable printing results.
-------------------------------------------------------------------------------------------------------------------
9. Is customization available for my specific material or ink type?
Yes. We can configure ink types, drying systems, unwinding/rewinding widths, and color units based on your factory’s requirements or existing material specifications.
-------------------------------------------------------------------------------------------------------------------
10. What after-sales support do you provide?
We offer full installation guidance, online training, and technical support. For large-scale production lines, on-site setup and operator training by our engineers are also available.
