SPECIFICATIONS

Application: MOLDING

Feature: Improves Processing Efficiency

Function: Engraving Milling Drilling

Item: 5 axis cnc router machine

Key words: 5 Axis Milling Machine

Keywords: 5 axis cnc router

Material: Wood Plastic Acrylic Foam Polystyrene Composite

No. of Spindles: Single

Product name: fixed table machining parts milling mold engraving router machine

Spindle Motor Power (kw): cutomized

Table Surface: T-slot Table

Type: CNC Router Milling Machines

brand name: BCAMCNC

cnc or not: CNC

core components: Bearing,Motor,Pump,Engine

dimension(l*w*h): 1300*2500*200mm atc cnc router

key selling points: Multifunctional

machine type: CNC Router

machinery test report: Provided

number of axes: 5

place of origin: SHN

positioning accuracy (mm): 0.01

range of spindle speed(r.p.m): 6000 - 24000 rpm

repeatability (x/y/z) (mm): 0.01

travel (x axis)(mm): 1300

travel (y axis)(mm): 2500

video outgoing-inspection: Provided

voltage: AC380V/50HZ

warranty: 3 Years

weight (kg): 3500

bcamcnc router cnc com atc 2030 cnc router drag knife router cnc axyz

Product Description

Specification

Parameters	Standard Specifications
X Y Z Working area	1300*2500*600mm
X,Y,Z Traveling Positioning Accuracy	±0.01
Max. Rapid Travel Rate	X:45m/min Y:45m/min Z:10m/min
Max.working speed	X:15m/min Y:15m/min Z:8m/min
Tool magazine	10 pcs disc tool magazine

Swivel head machines maneuver the tool around the fixed block of material to machine around and through the piece and get into tight spaces from different angles. One benefit of this method is that a more massive object can be machined since the block of material remains stationary throughout the process.

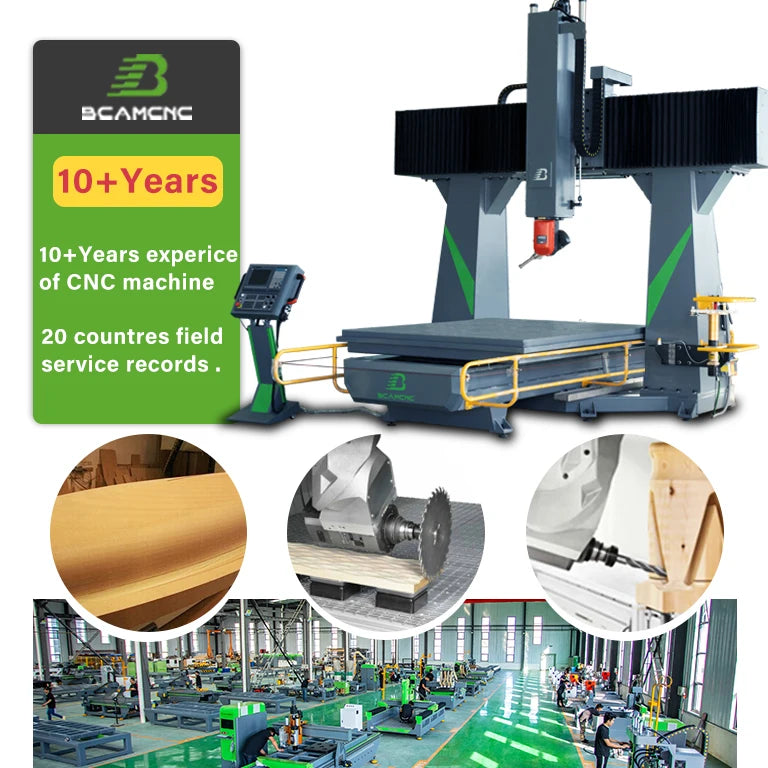

CNC router 5 axis has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries.

5 axis cnc router can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites. MATERIAL Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Soft metal: aluminum, brass, copper, mild steel Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite

1.Our technicians have installed the wood router cnc before shipment. For the installation of some small parts when you get machine, we will send detailed installation videos after you get machine. 95% of customers can learn by themselves by our operation video and User manual .

2. The 3-year warranty is free replacement of the main parts of the machine (except for wearing
parts, some parts will be repaired). 3 years warranty for machines, Accessories and Solutions always be support after 3 years

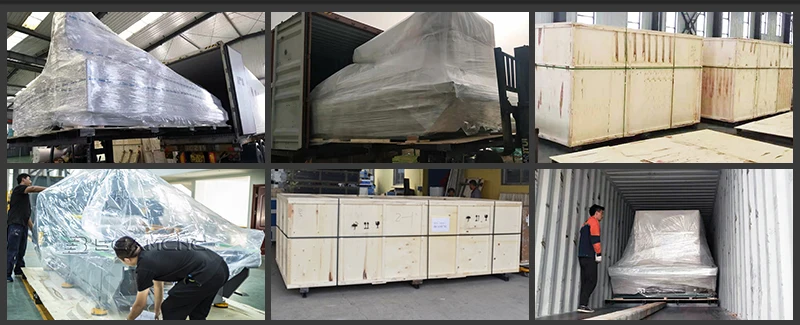

Packing & Delivery

1.Whole film packaging cnc router 5 axis
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at China seaport

Company Profile

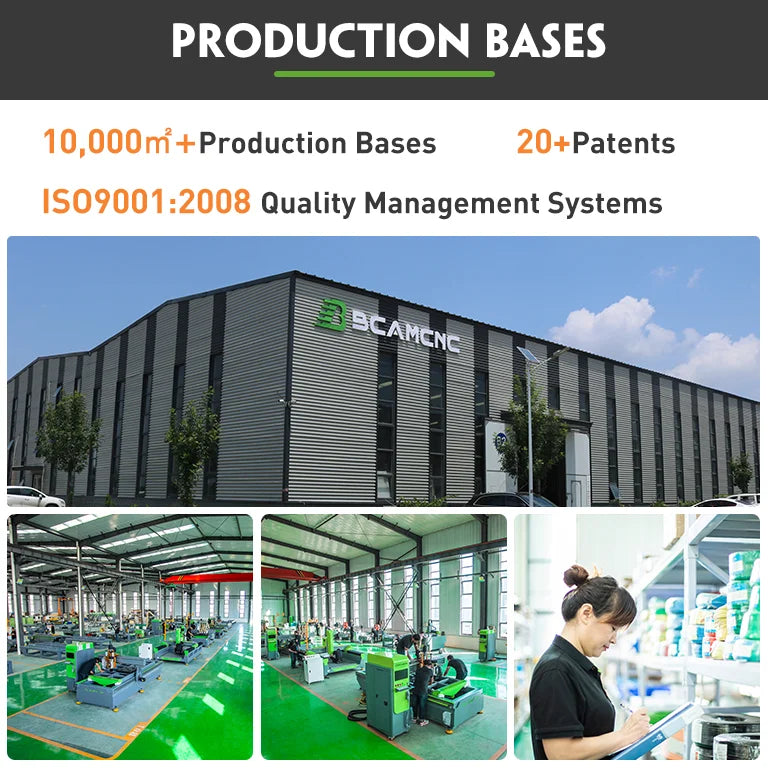

Based on more than 10 years’ experience in engraving machines and has gradually developed into a leader in the CNC machine industry. 10,000+ Production Base 20+ Patents ,ISO9001:2008 Quality Management SystemsUnique design and distinctive color matching have led the aesthetic trend of the CNC router machine industry. We maintain a diversified product composition, and the patents of
our invention are applied to key parts of each product to ensure the practicality, convenience and professionalism of the engraving machine.

FAQ

1.Does your company provide teaching and training?

1 User manual and 100 mins operation videos and 24th online training free
2. How much will cost from China to client location port or door shipping cost ?
90% sea port can be offer Shipping cost at sight after got sea port name and your factory address.
3.Does your engineer speak English? Which countries have you been to? Can you provide on-site installation and training?
20 countries on site service recording, 10 Years Experience for CAM and CNC control system
4.What software do you commonly use? Or adapt to my software (main CAD or CAM software commonly used abroad)?
99% CAM software supported . 100% G code is no problem in our machine
