SPECIFICATIONS

Applicable Industries: Garment Shops

Color & Page: Multicolor

Control Type: Push Button

Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list

Ink type: Environmental UV curing ink

Key Selling Points: A3 LED UV Flatbed Printer

Nozzle spray force range: 2-3mm(0.0787in-0.0118in)

Number of nozzle: 3200 (Individual)

Plate Type: UV Printer

Power: AC220/ AC110V, 50-60HZ, 1 phase; 360W, 3.3A (110V) / 2A (220V)

Power Mode: Power Supply

Print Media: Textile

Print Resolution: 1200 dpi

Print Speed: 20 ppm

Print head: DTF

Print size: 297 x 420mm(11.69in x 16.53in)

Printing Material: Flex

Resolution: 2400 DPI

Type: Inkjet Printer

automatic grade: Automatic

brand name: Calca

condition: New

dimensions(l*w*h): 112 x 102 x 78cm (44.09 x 40.16 x 30.71in)

ink type: UV Ink

place of origin: China

usage: Paper Printer,Label Printer,Card Printer,Tube Printer,Bill Printer,Cloths Printer,Leather Printer,Wallpaper Printer

warranty: 1 Year

weight: 80

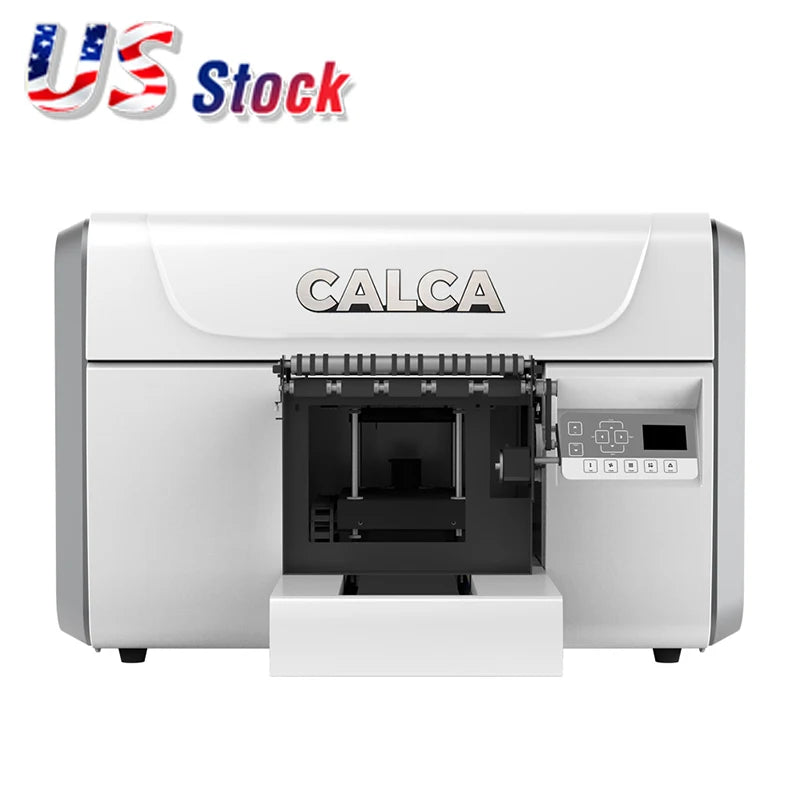

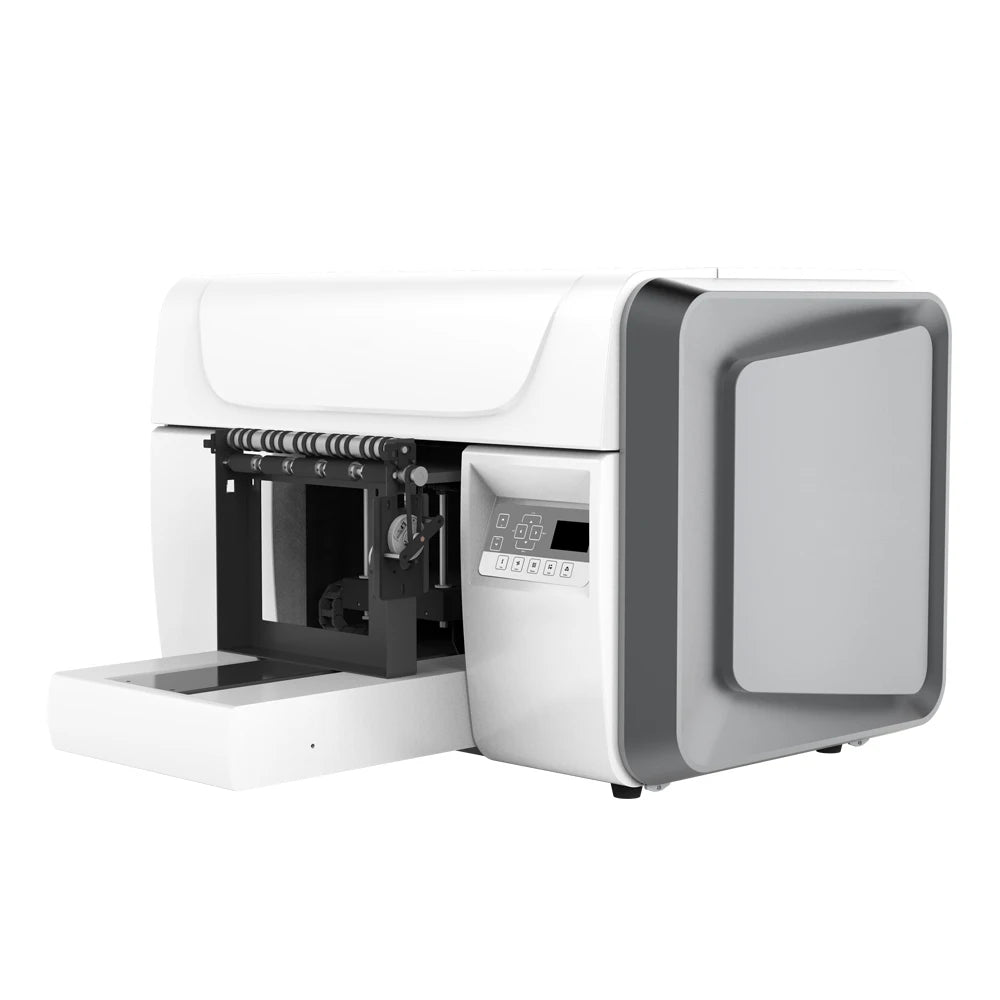

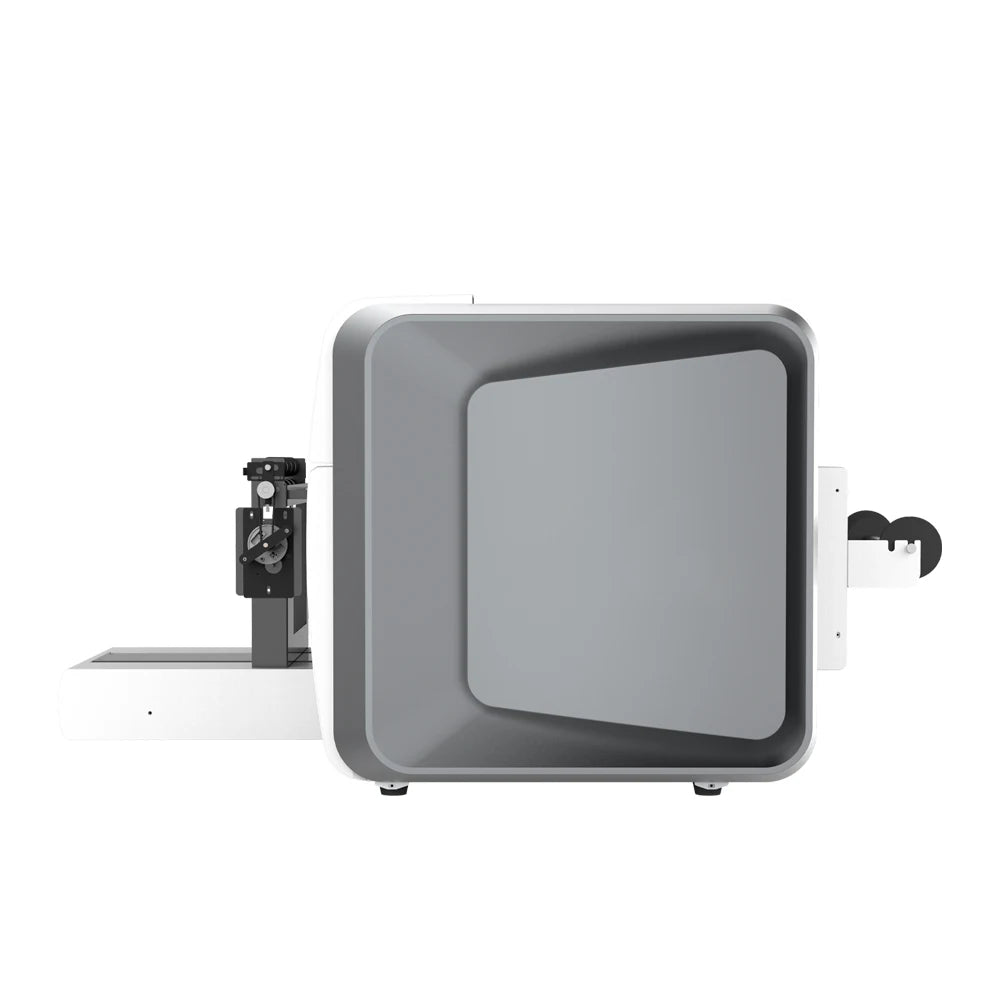

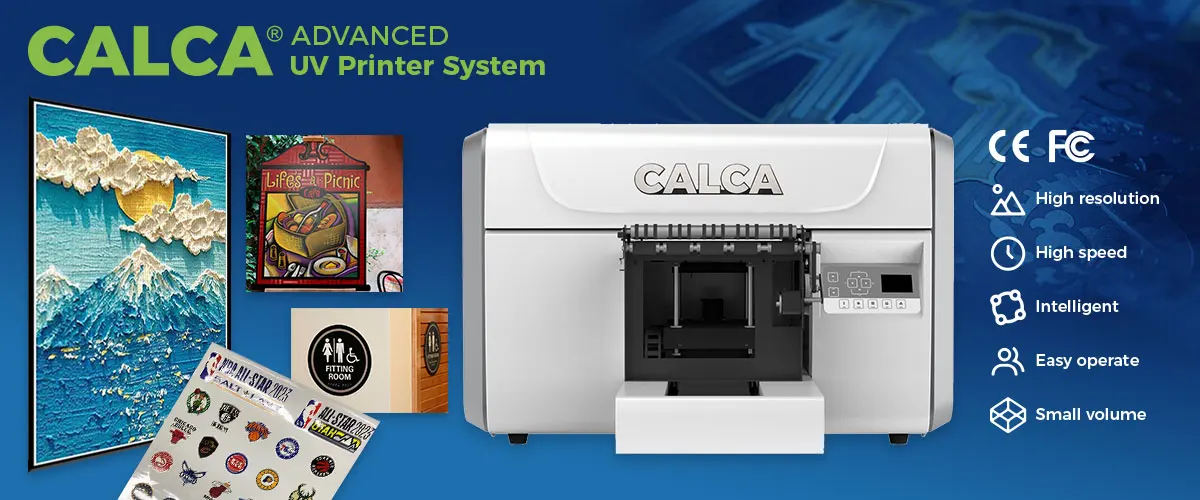

CALCA A3 LED UV Flatbed Printer
Skilful and refined, what is shown is what you see.

Features:
√ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
√ Compact, less foot print.
√ Humanized design operation panel, convenient and fast operation.
√ Various functions, support flat and roll printing.
√ Simultaneous output of white, color and varnish.
√ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
√ Intelligent ink supply system - with ink shortage alarm function. Fixture (optional)

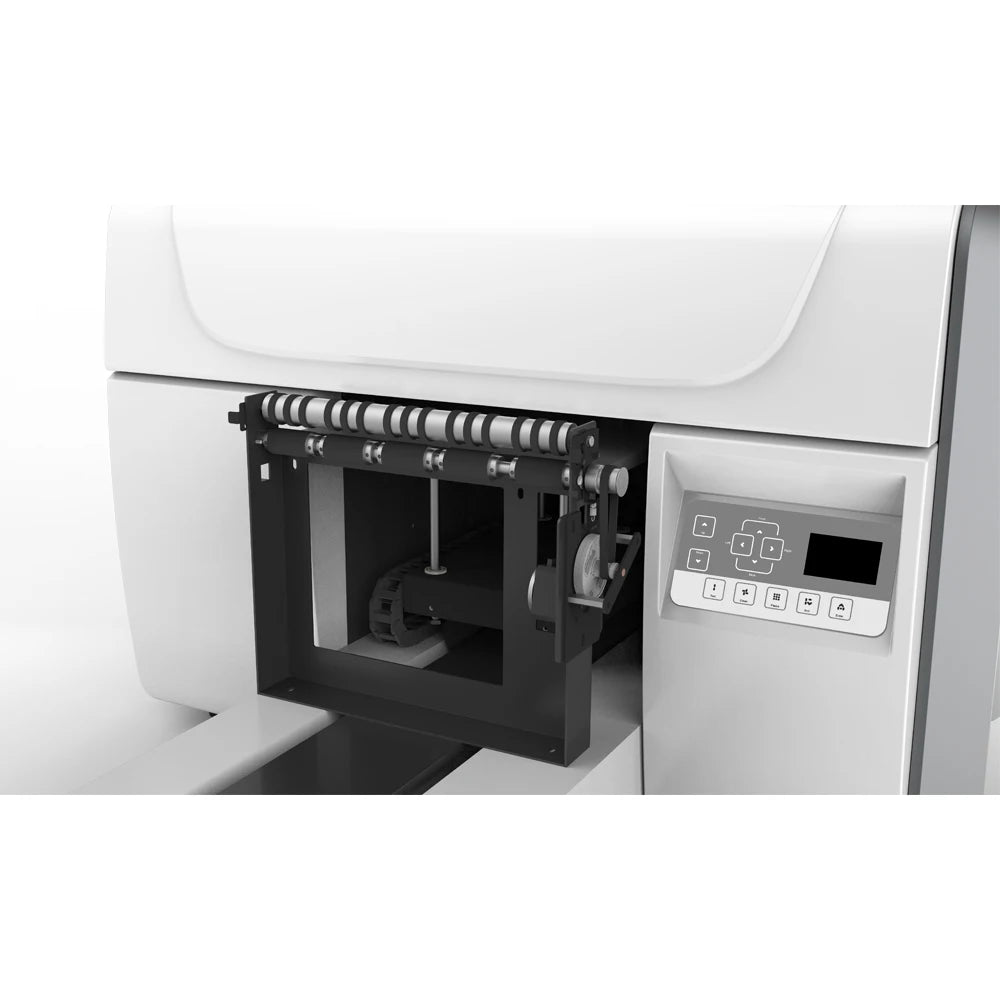

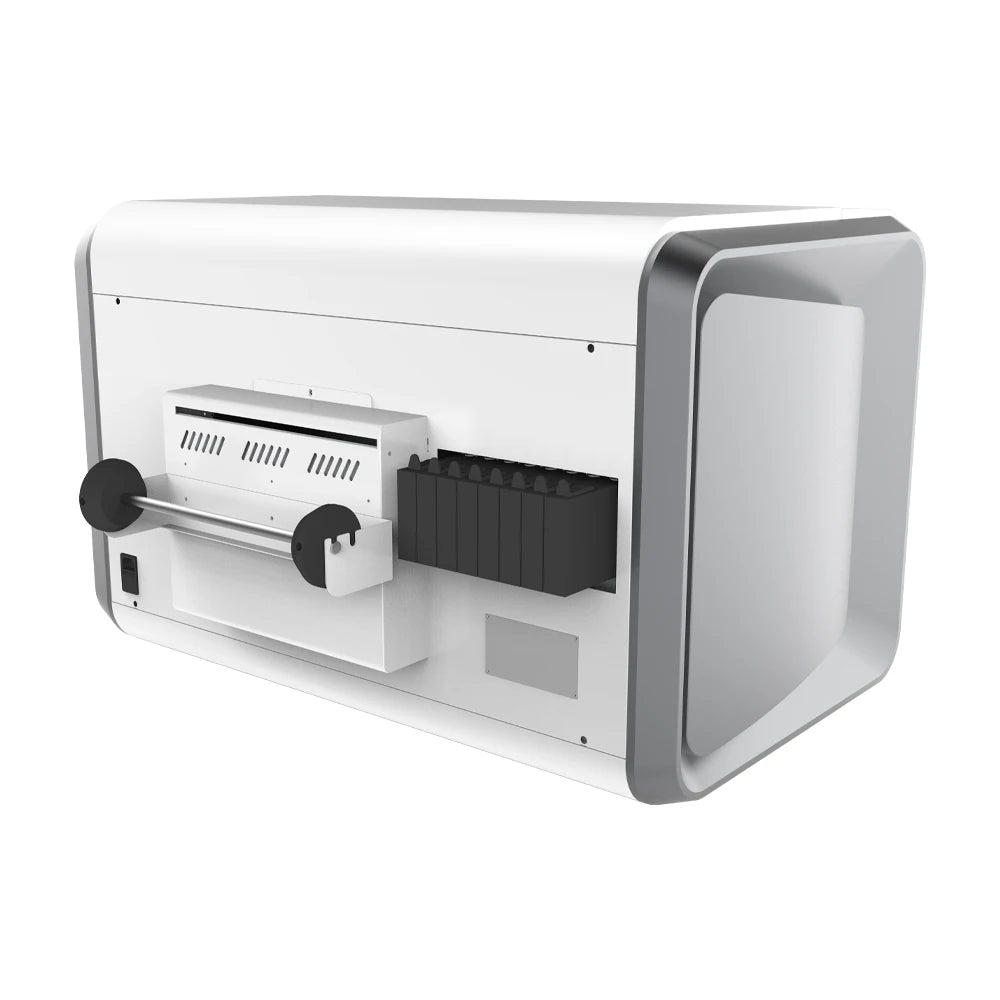

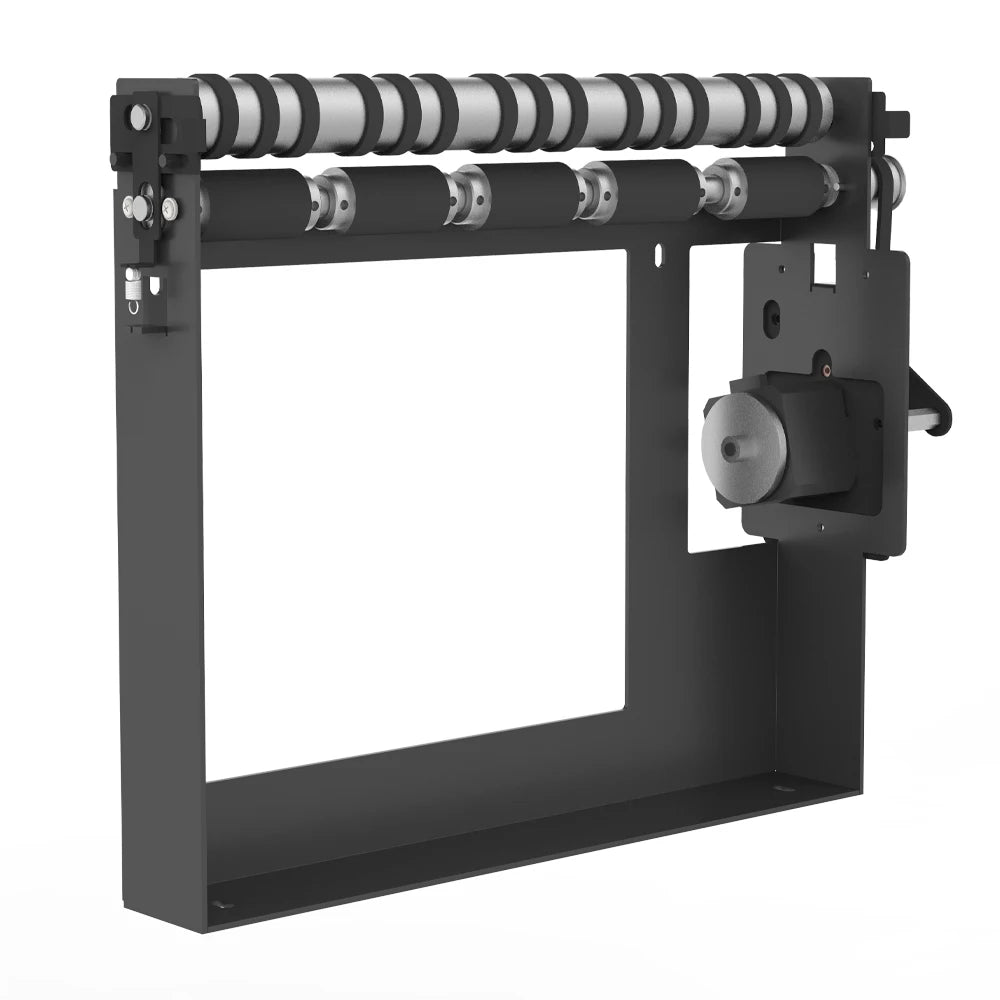

Roll fixture(Standard): Suitable for blanks within 11lbs (5kg) weight, from 30mm (1.1811in) to 250mm (9.8425in) width, inner core
diameter of 3in.
Cylindrical fixture(Optional): Suitable for blanks within 25mm (0.9842in) to 80mm (3.1496in) diameter and 20mm(0.7874in) to 210mm
(8.2677in) length.

Technical Specs:
Print size: 297 x 420mm(11.69in x 16.53in)
Print Head: I3200 x 1pc
Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
Number of nozzle: 3200 (Individual)
Distance between nozzles: 1/300inch
Numbers of nozzle rows: 8
Maximum number of supported ink colors: 8
Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list
Droplet ejection performance(Droplet volume and ejection frequency):
2 levels of grayscale 5 pl (43.2KHz)
3 levels of grayscale 6, 12.5 pl (21.6KHz)
4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
Print height: 0-85mm(0-3.34in)
Ink type: Environmental UV curing ink
Print version: White and color and varnish print as same time
Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK
RIP Software: Future Rip
Print speed: 0.28-3sqm/h
Highest print solution: 720 x 1200dpi
Connection method: Network cable
Graphic format: Tiff, Jpg, Eps, Pdf, Png
Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
Net Weight: 60kg (132.28lbs)
Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
Gross Weight: 80kg (176.37lbs)
Power: AC220/ AC110V, 50-60HZ, 1 phase; 360W, 3.3A (110V) / 2A (220V)
Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%

Package Includes:
UV printer x 1
Future Rip x 1
Power cable x 1
Network cable x 1
Roll fixture

Details:

Applications:
Handicraft industry: Earrings, bookmarks, Rubik's cube, bowling ball, fridge magnets, brooches, buttons, key-chains, pendants,
small badges, small metal billboard, bottle openers, etc.

Electronics digital industry: Watches, u disk, earphones, mobile power banks, mobile phone case, tempered film, small speakers,
power cords, electronic cigarettes, etc.

Stationery industry: Ballpoint pen, glass case, notebook, Pencil case, ruler, eraser, correction fluid, mouse pad, stapler,
pencil, label paper, etc.

Personalized gift customization: Lithographs, art books, mobile phone case, puzzles, car Accessories, stationery gift sets, gift
lights, etc.

Warranty
> Lifetime Technical Support
> Limited to 2-year warranty on non-consumable parts.
> Warranty on parts only for printer(s) using CALCA UV inks, and printer(s) under proper maintenance and usage.
>1 year warranty on non-consumable parts if you don't use CALCA’s UV inks.

Company or person requesting warranty repair shall contact CALCA for pr-authorization and selection of a qualified repair
technician to service the equipment prior to performing service on the equipment. Failure to request pr-authorization for service
repair and selection will result in denial of a warranty claim.

CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime
or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is
the user’s responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty
claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal
operation.
