SPECIFICATIONS

Applicable Industries: Garment Shops

Color & Page: Multicolor

Control Type: Push Button

Graphic format: Tiff, Jpg, Eps, Pdf, Png

Plate Type: UV Printer

Power: AC220/ AC110V, 50-60HZ, 1 phase; 360W, 3.3A (110V) / 2A (220V)

Power Mode: Power Supply

Print Media: Textile

Print Resolution: 1200 dpi

Print Speed: 10 ppm

Print head: UV,I3200 x 1pc

Print size: 297 x 420mm(11.69in x 16.53in)

Printing Material: Flex

Resolution: 1200 dpi

Type: Inkjet Printer

Working environmentTemperature: 20℃-28℃(68℉-82.4℉); humidity: 35%-65%

automatic grade: Automatic

brand name: Calca

condition: New

dimensions(l*w*h): 112 x 102 x 78cm (44.09 x 40.16 x 30.71in)

ink type: UV Ink

place of origin: China

usage: Paper Printer,Label Printer,Card Printer,Tube Printer,Bill Printer,Cloths Printer,Leather Printer

warranty: 1 Year

weight: 80

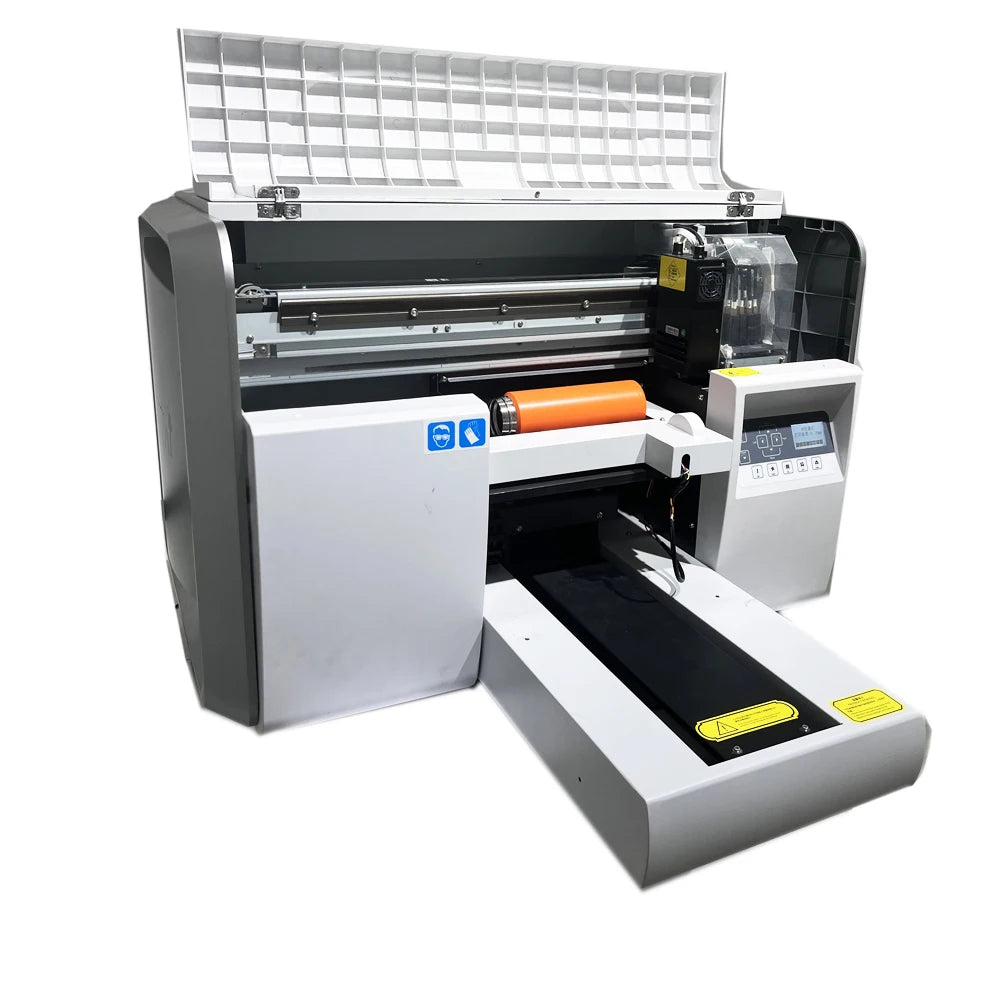

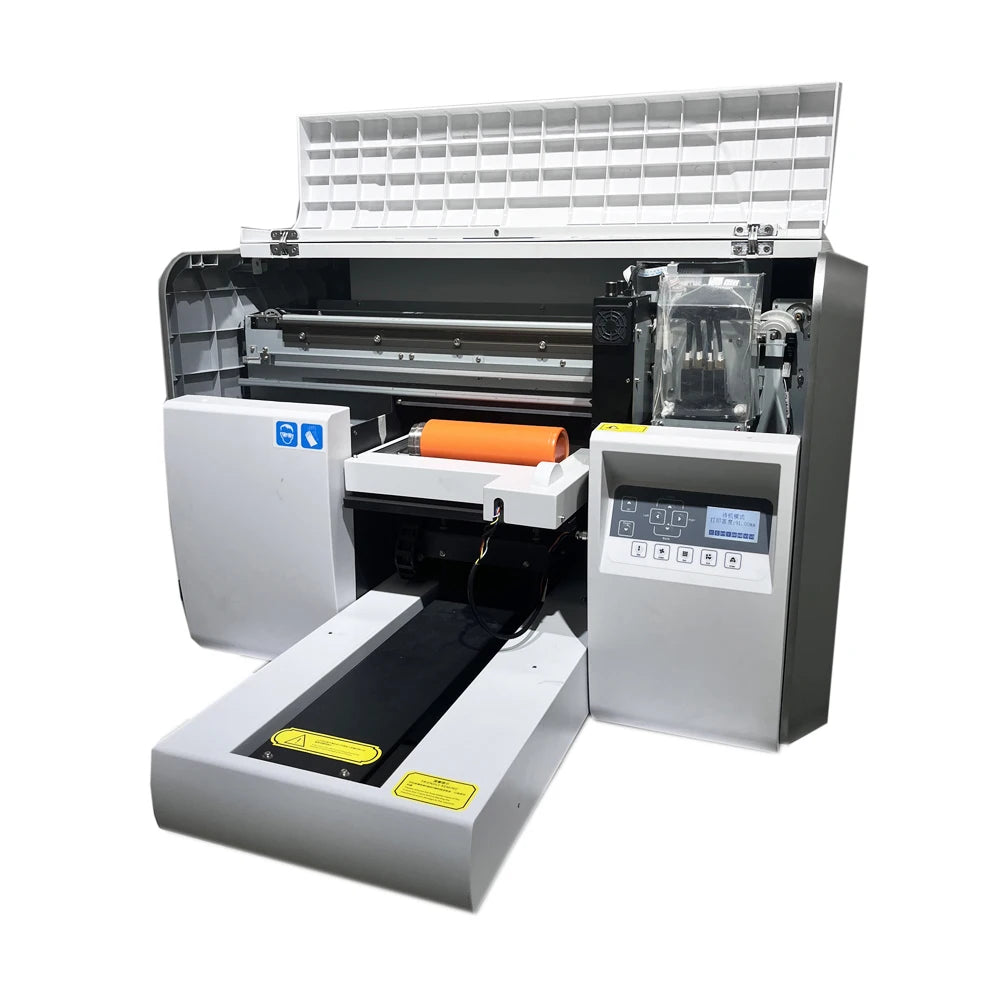

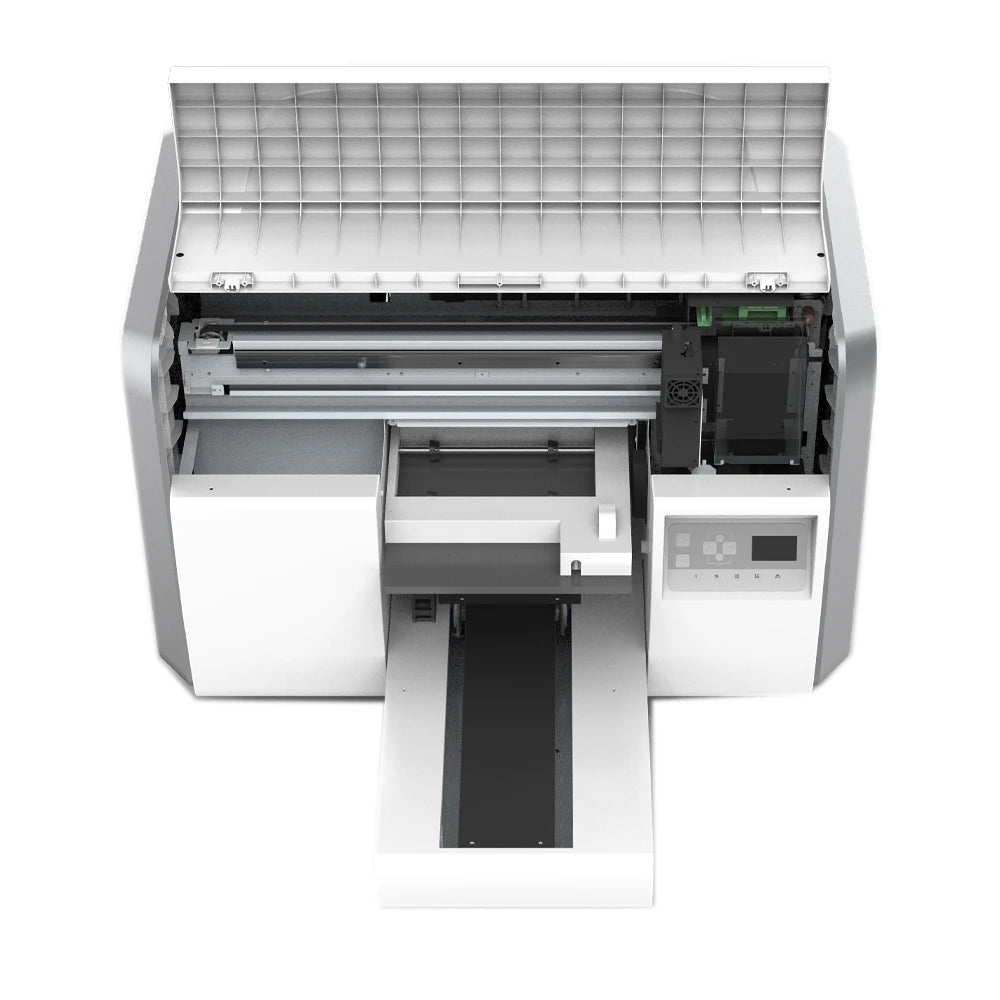

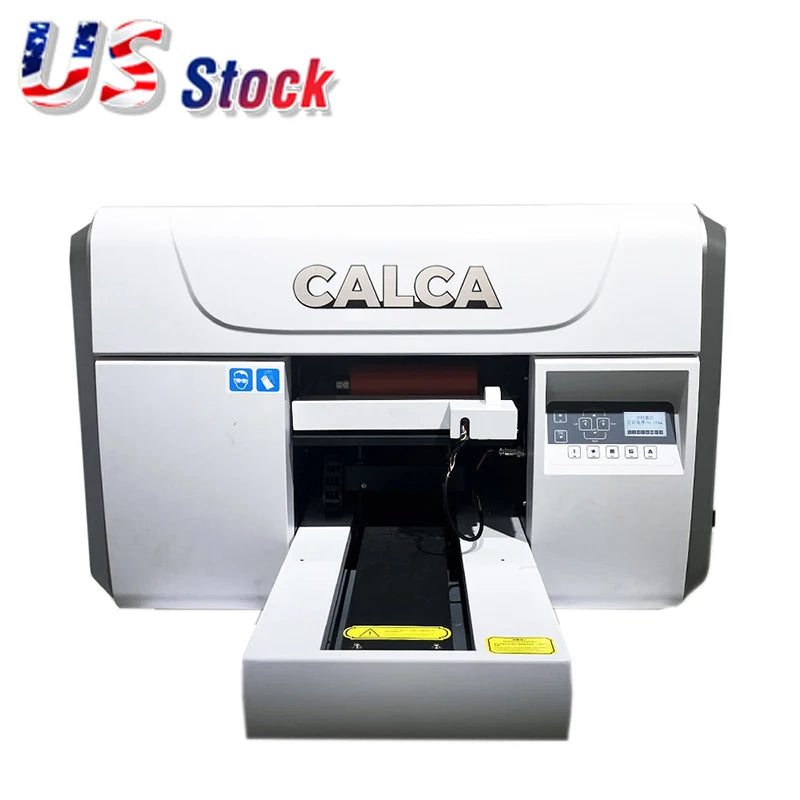

CALCA A3 LED UV Flatbed Printer
Skilful and refined, what is shown is what you see.

Features:
√ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
√ Compact, less foot print.
√ Humanized design operation panel, convenient and fast operation.
√ Various functions, support flat and roll printing.
√ Simultaneous output of white, color and varnish.
√ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.

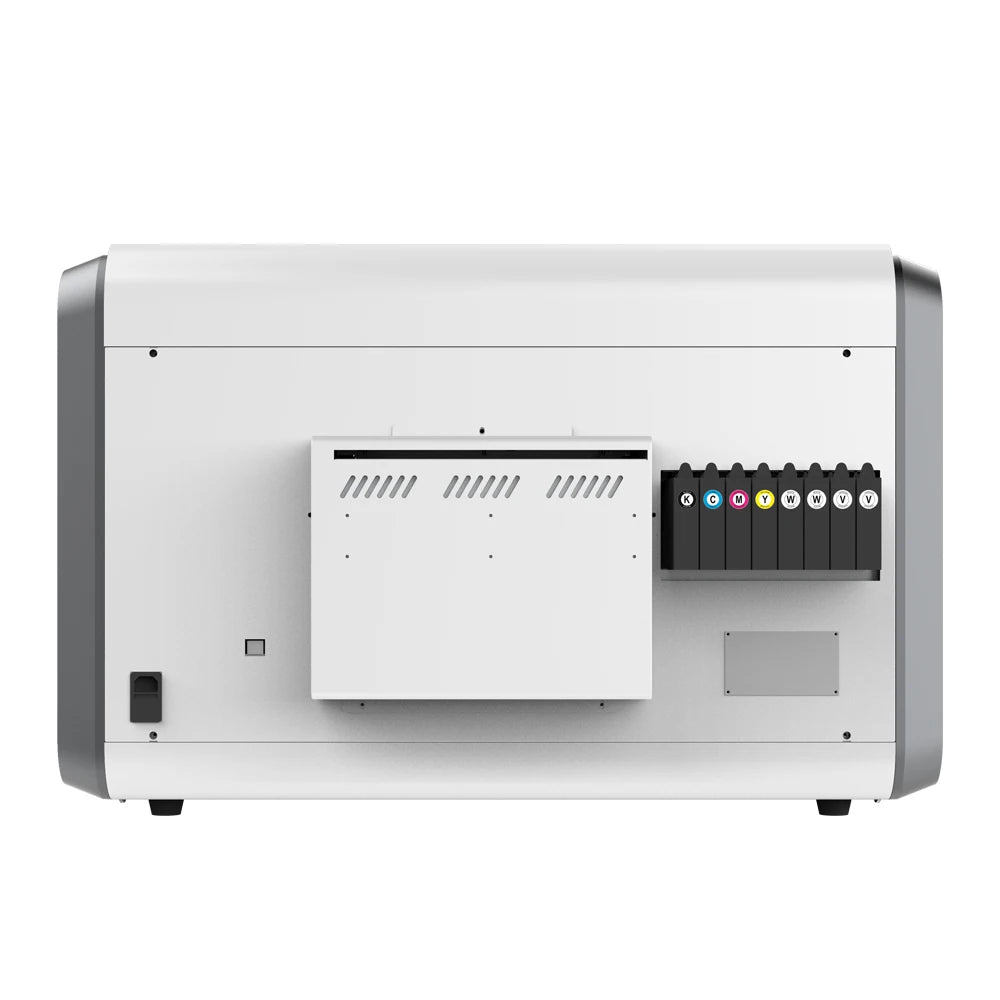

√ Intelligent ink supply system - with ink shortage alarm function. Fixture (optional)
Cylindrical fixture(Standard): Suitable for blanks within 25mm (0.9842in) to 80mm (3.1496in) diameter and 20mm(0.7874in) to 210mm
(8.2677in) length.

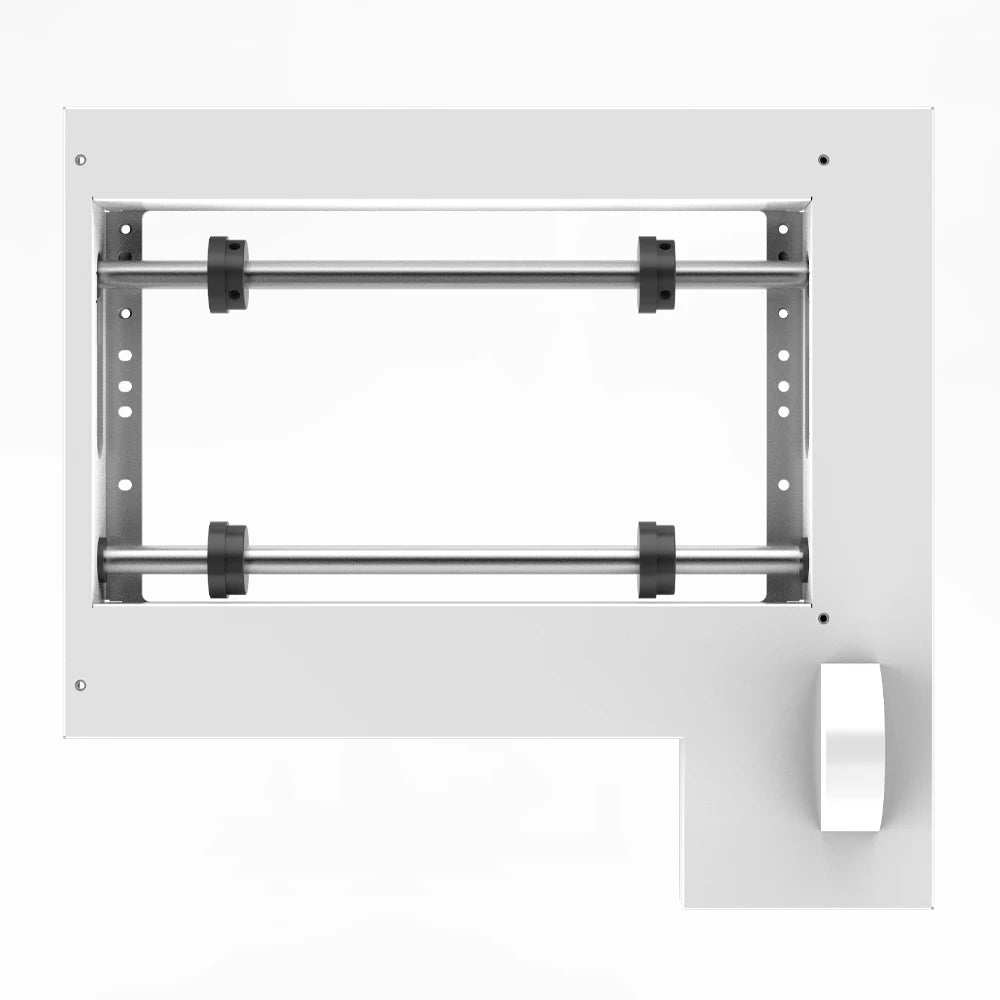

Roll fixture(Optional): Suitable for blanks within 11lbs (5kg) weight, from 30mm (1.1811in) to 250mm (9.8425in) width,inner core
diameter of 3in.

Technical Specs:
Print size: 297 x 420mm(11.69in x 16.53in)
Print Head: I3200 x 1pc
Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
Number of nozzle: 3200 (Individual)
Distance between nozzles: 1/300inch
Numbers of nozzle rows: 8
Maximum number of supported ink colors: 8
Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list
Droplet ejection performance(Droplet volume and ejection frequency):
2 levels of grayscale 5 pl (43.2KHz)
3 levels of grayscale 6, 12.5 pl (21.6KHz)
4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
Print height: 0-85mm(0-3.34in)
Ink type: Environmental UV curing ink
Print version: White and color and varnish print as same time
Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK
RIP Software: Future Rip
Print speed: 0.28-3sqm/h
Highest print solution: 720 x 1200dpi
Connection method: Network cable
Graphic format: Tiff, Jpg, Eps, Pdf, Png
Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
Net Weight: 60kg (132.28lbs)
Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
Gross Weight: 80kg (176.37lbs)
Power: AC220/ AC110V, 50-60HZ, 1 phase; 360W, 3.3A (110V) / 2A (220V)
Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%

Package Includes:
UV printer x 1
Future Rip x 1
Power cable x 1
Network cable x 1
Cylindrical fixture

Details:

Applications:
Handicraft industry: Earrings, bookmarks, Rubik's cube, bowling ball, fridge magnets, brooches, buttons, key-chains, pendants,
small badges, small metal billboard, bottle openers, etc.
