SPECIFICATIONS

After Warranty Service: Spare parts

After-sales Service Provided: Online support

Control Type: Customized

Number of Colors: 4-Color

Type: Flexographic Printer

automatic grade: Automatic

brand name: CECLE

color & page: Multicolor

condition: New

dimensions(l*w*h): 15000 X 2800 X 2700mm

place of origin: Zhejiang, China

plate type: Gravure

print speed: 80 m/min

usage: Paper Printer

voltage: 220av/380v

warranty: 1 Year

weight: 22000

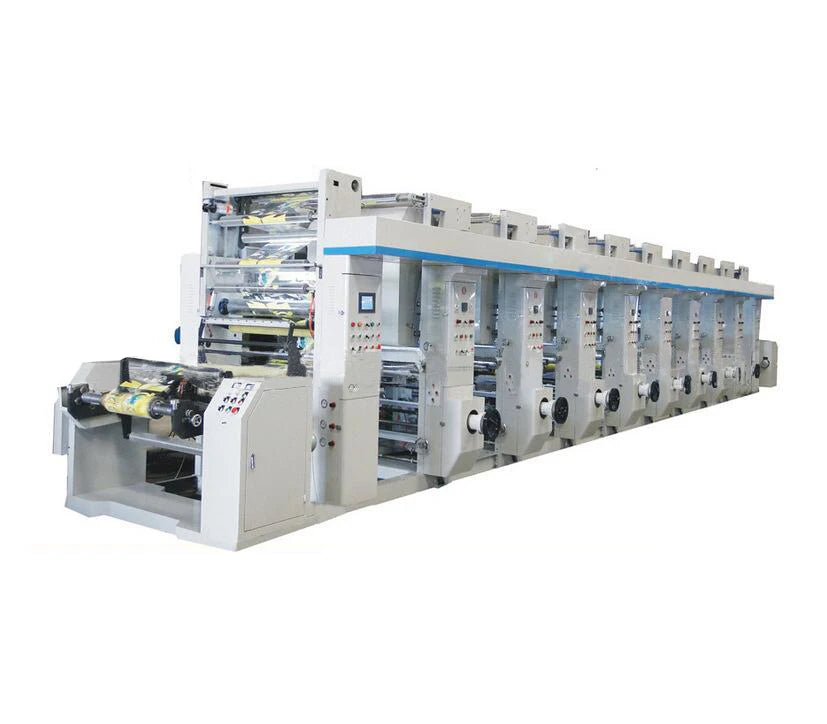

Product Description

Adopting technologically advanced control system, dynamic synchronous differential compensation system tension and zero speed differential automatic, sealed drying box with secondary air return function, unique circular hole array air curtain type hot air drying, high-speed work

Specifications

Model:	HYAY-8800E
Color:	8
Speed:	180m/min
Printing plate diameter	ø120mm~ø320mm
Power	170KW
Printing width	800mm
Guide roller width	850mm
Maximum diameter of reel	ø600mm
Tension range	3- 25Kg
pressure of roller	200kg
Cylinder specifications	Φ50X50
Installation length	450mm~850mm
Wind speed	≥25m/s
Maximum air supply	≥2300m3/H
Guide roller	Φ80mm-Φ100mm-Φ120mm
Size	15000 X 2800 X 2700
Weight	22T
