SPECIFICATIONS

Applicable To The Crowd: Unisex

Battery: 36V 7.8AH

Battery Capacity: 10 - 20Ah

Brand: H&O

Category: Two-wheel Scooter

Certification: ETL/CE/EMC/ROHS/SAA

Charging Time: 4h

Foldable: Yes

Keywords: Folding Electric Mobility Scooter

Material frame: Magnesium alloy frame

Max Speed: 25km/h,25-30km/h

Max load: 100kgs

Model Number: H10

Motor power: 250W

Place of Origin: Zhejiang, China

Product name: Escooter Off Road

Range Per Charge: 25-30km

Smart Type: Bluetooth,Electronic,Digital

Company Introduction

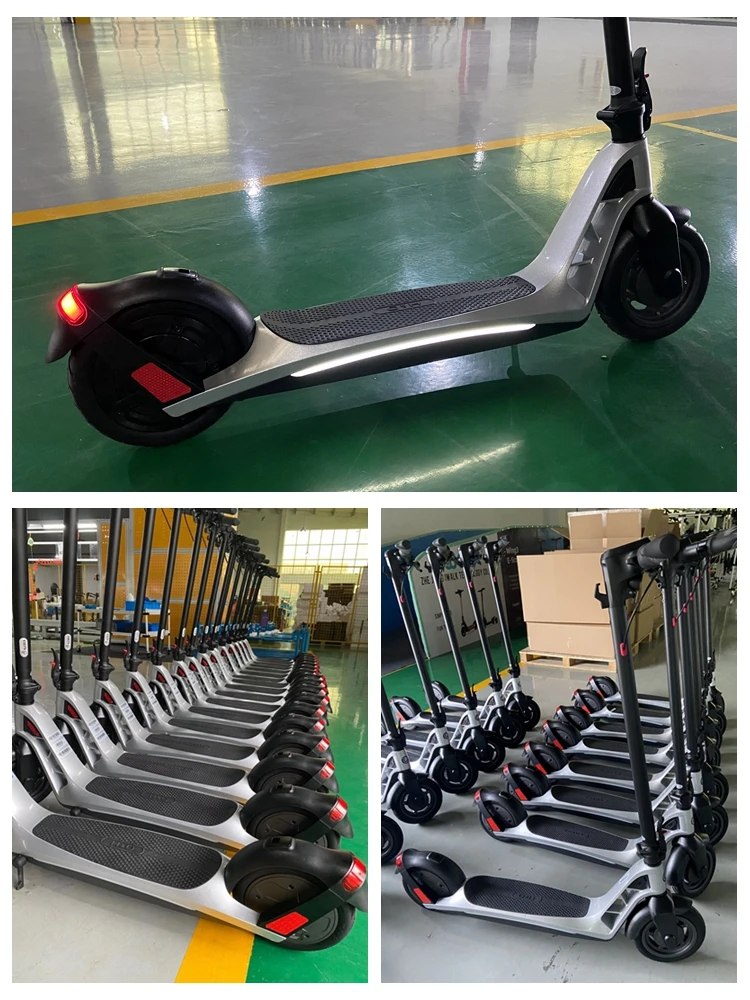

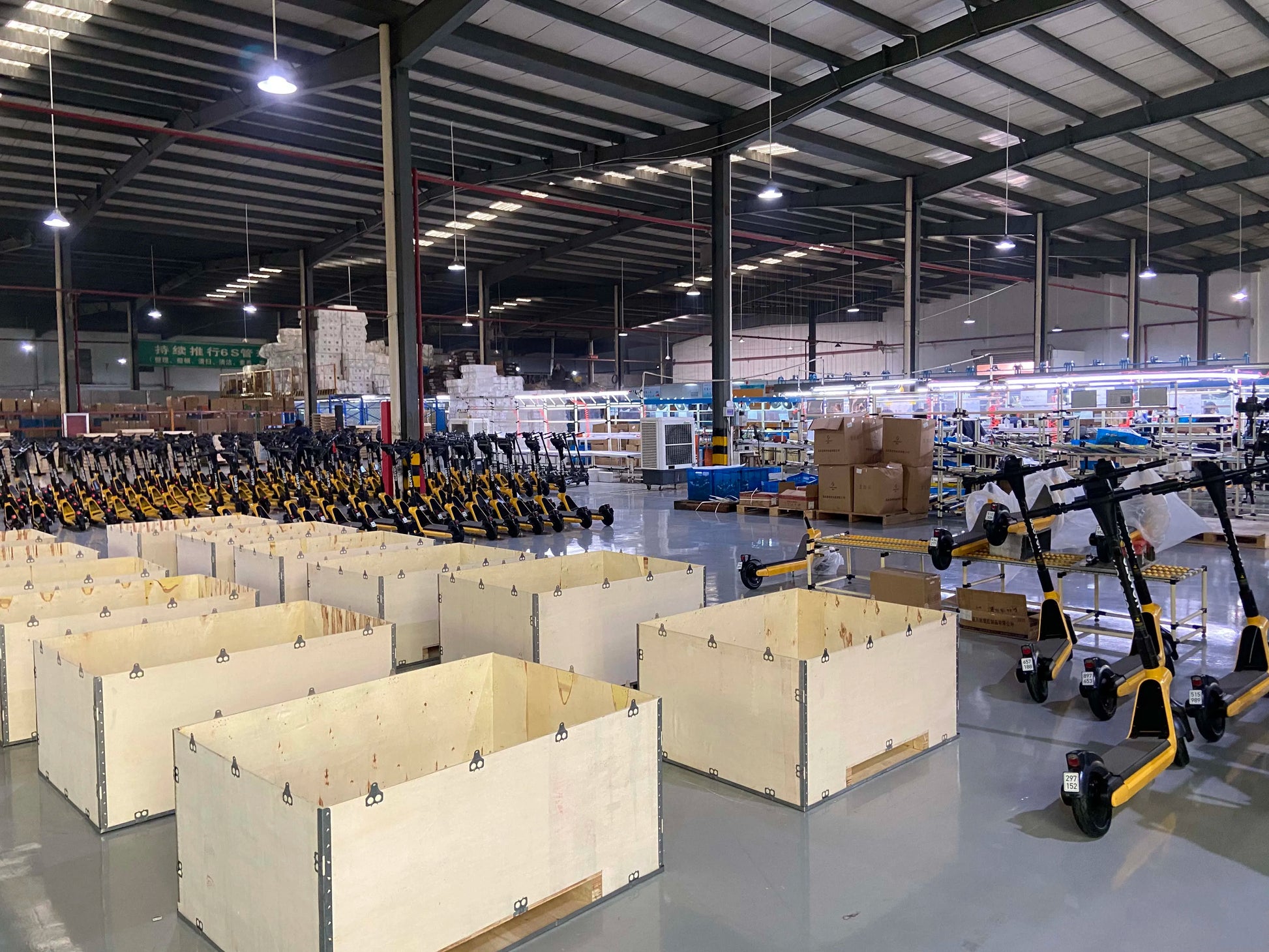

Workshop

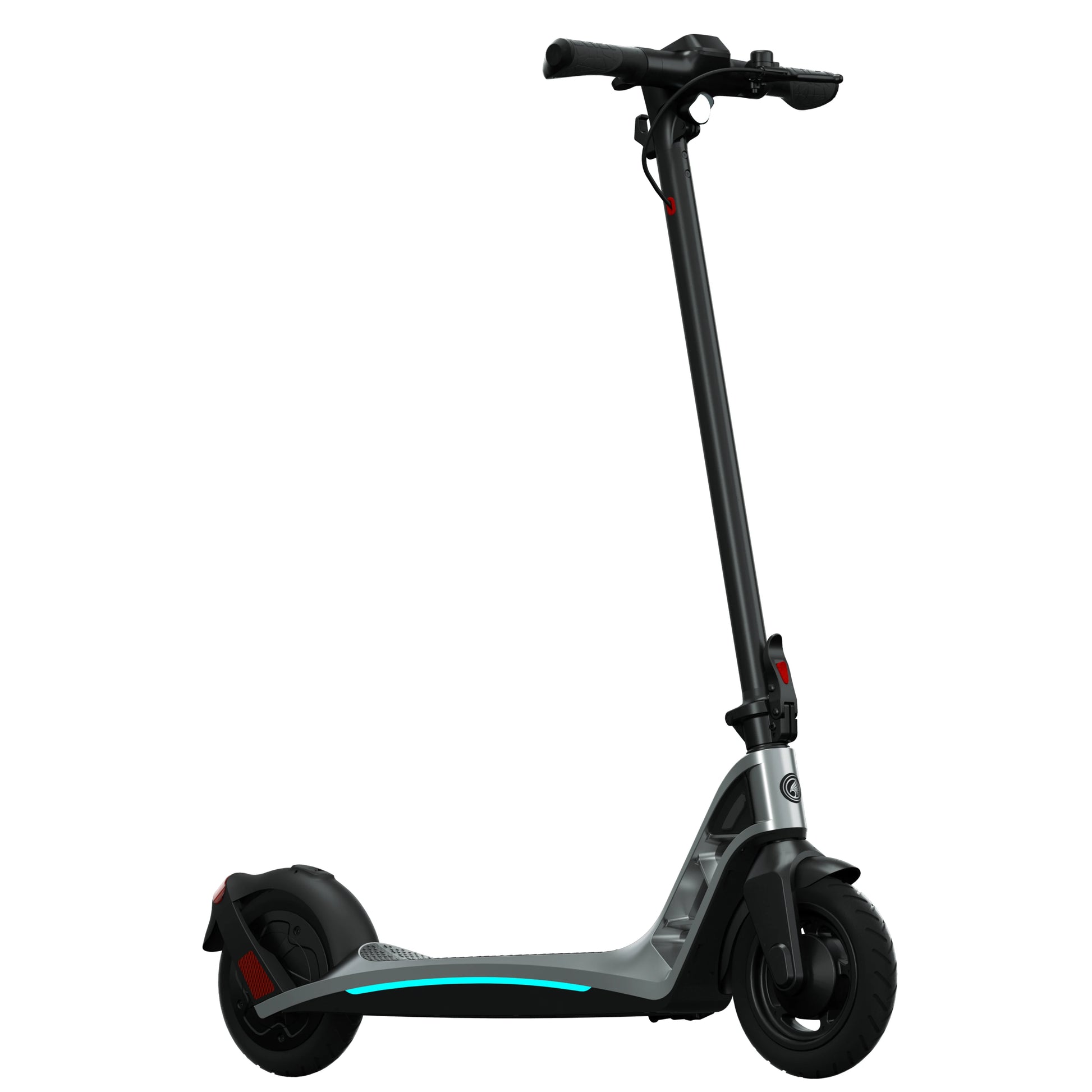

Product Description

Product Paramenters

Net weight	Around 15.8kg
Max. Load	Around 100kg
Battery Capacity	36V 7.5Ah (270Wh)
Max. Speed	25km/h
Typical Range Per Charge	25-30km
Wheel Size	9 inch (front & rear)
Max. Angle Of Climb	14°
Waterproof Lever	IP54
Frame	Magnesium alloy
Front Tube	Aluminium alloy

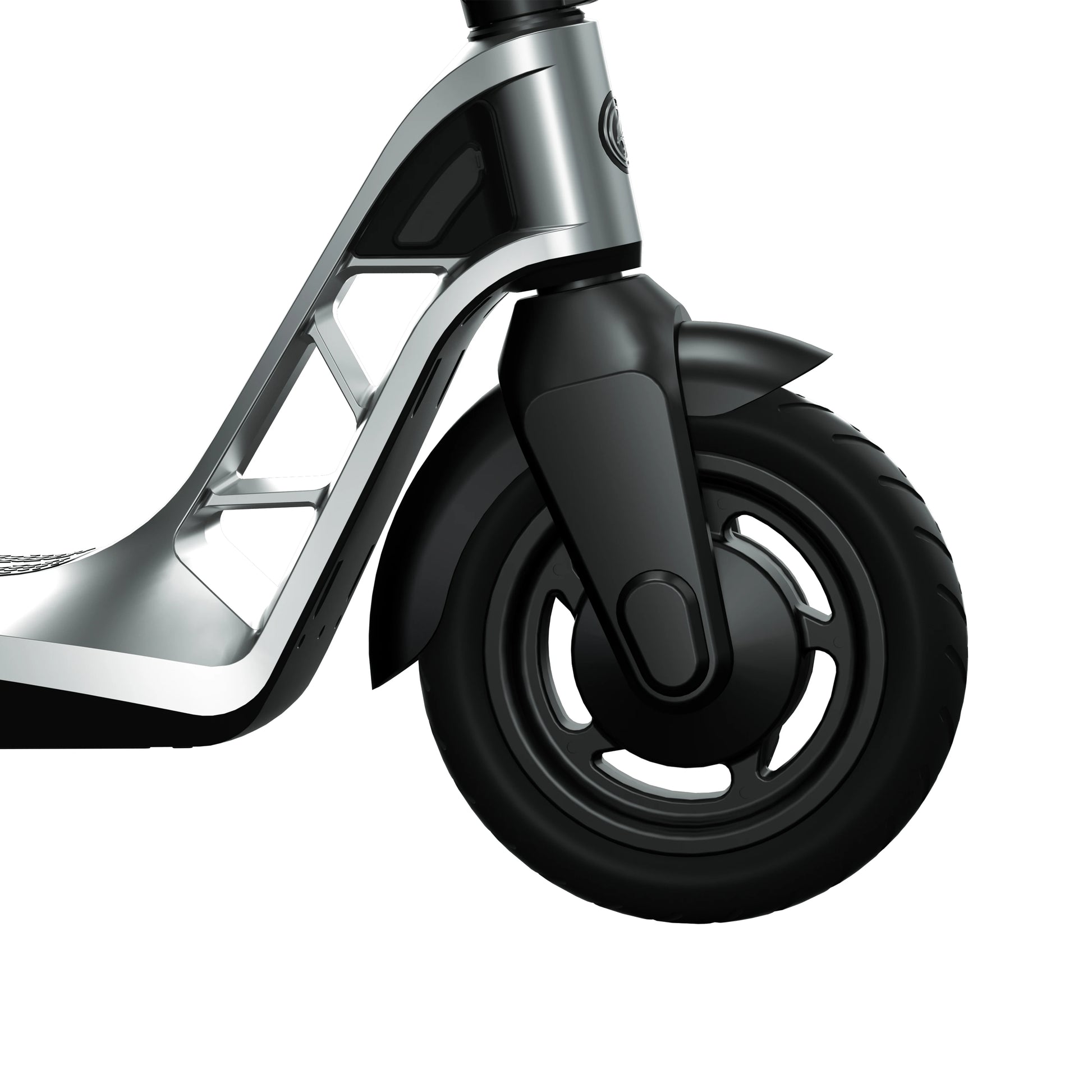

Tires (Front&Rear)	9" flat-free tires (PU foamed inner tube)

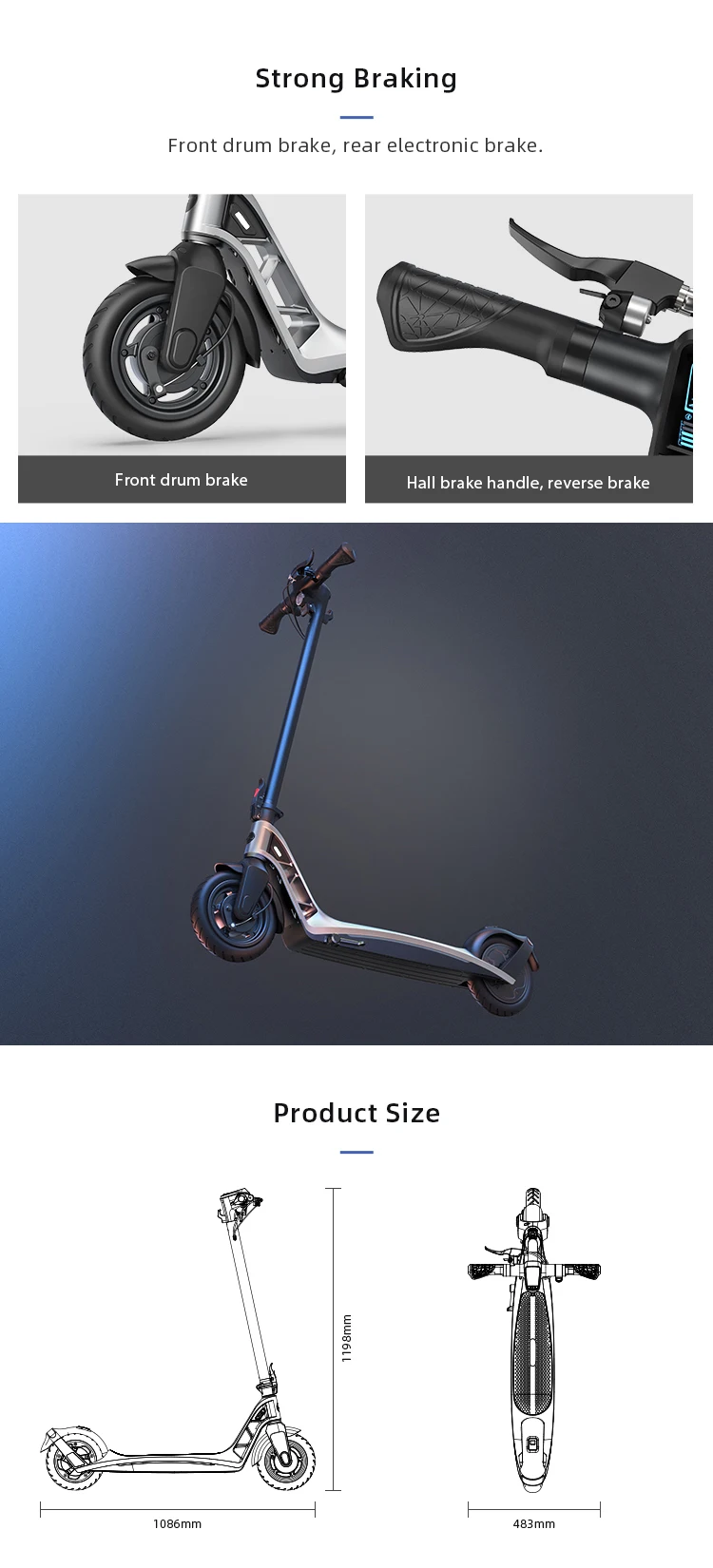

Brake	Front mechanical drum brakeBack E-ABS electronic brake
Motor Power	300W
Battery Max. Discharge Current	15A
Charging Hours	Around 4 hours
Charger Output Voltage	DC 42V 2A
Light	Front & Tail LED light                   Amibient light on sides

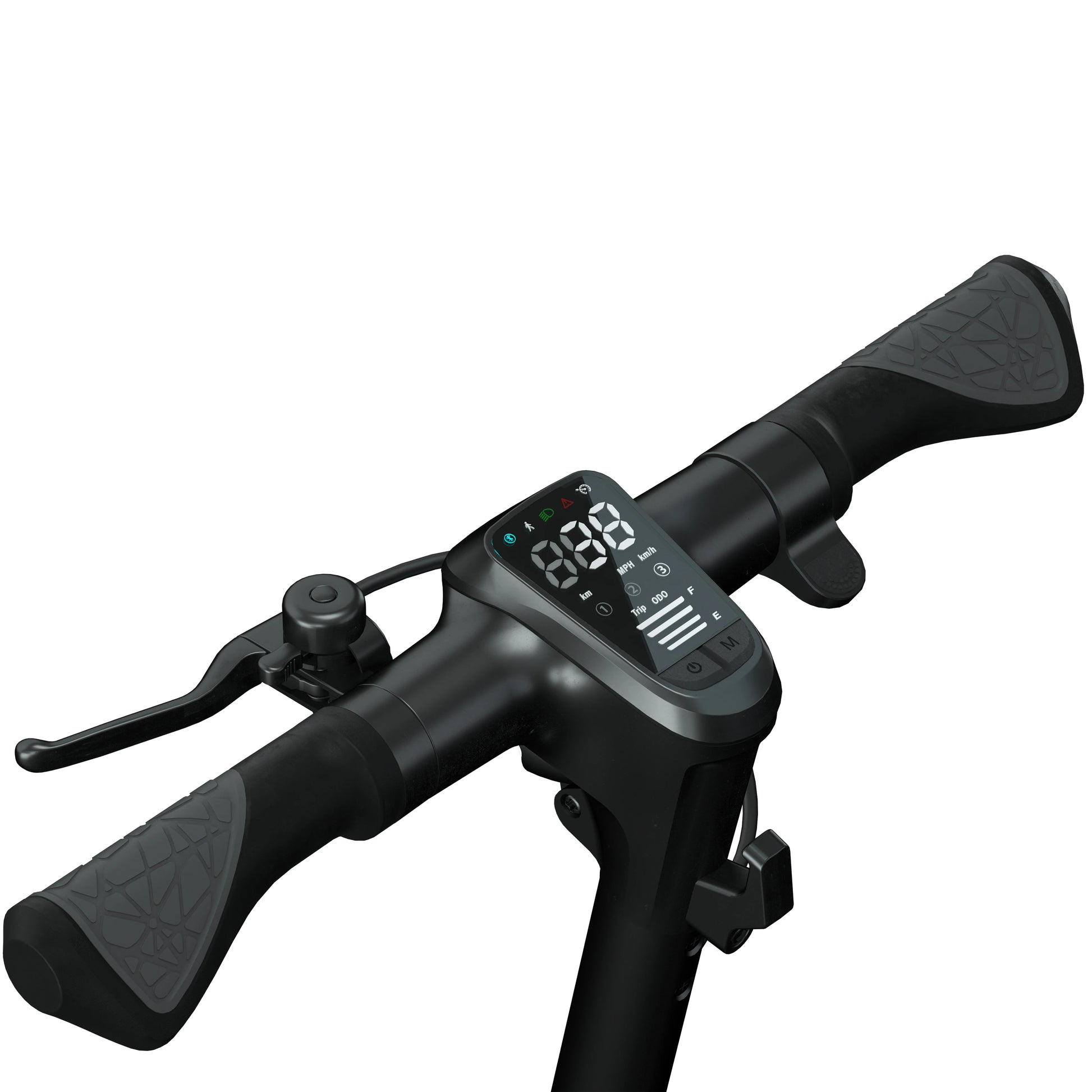

LED Dashboard	Display battery power, speed, range

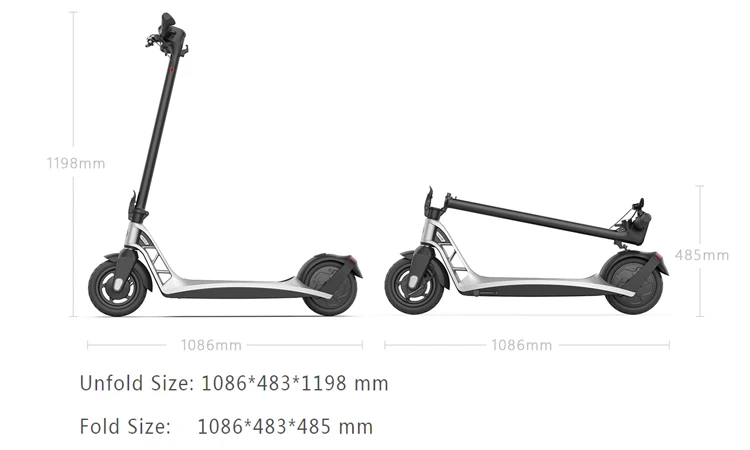

Packing Size LXWXH	1120x180x505mm

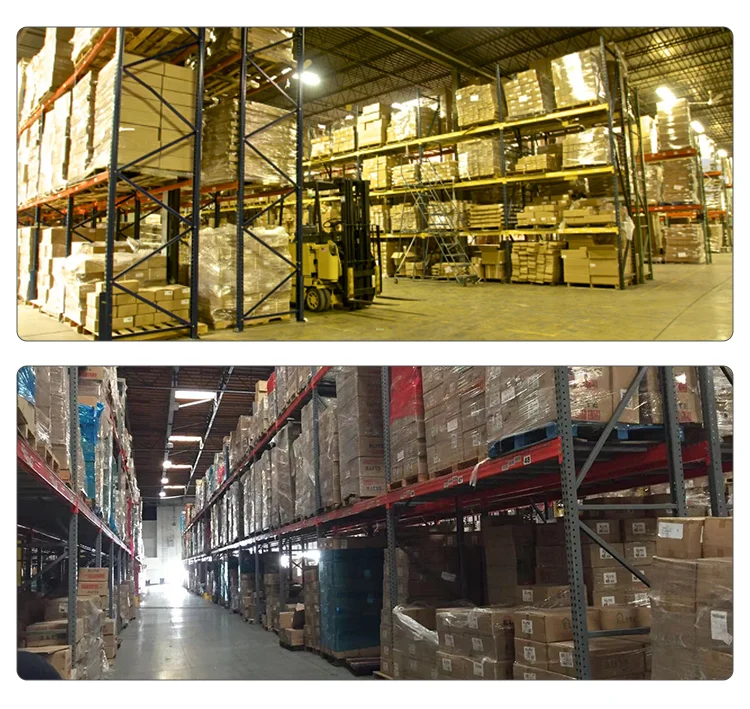

Warehouse

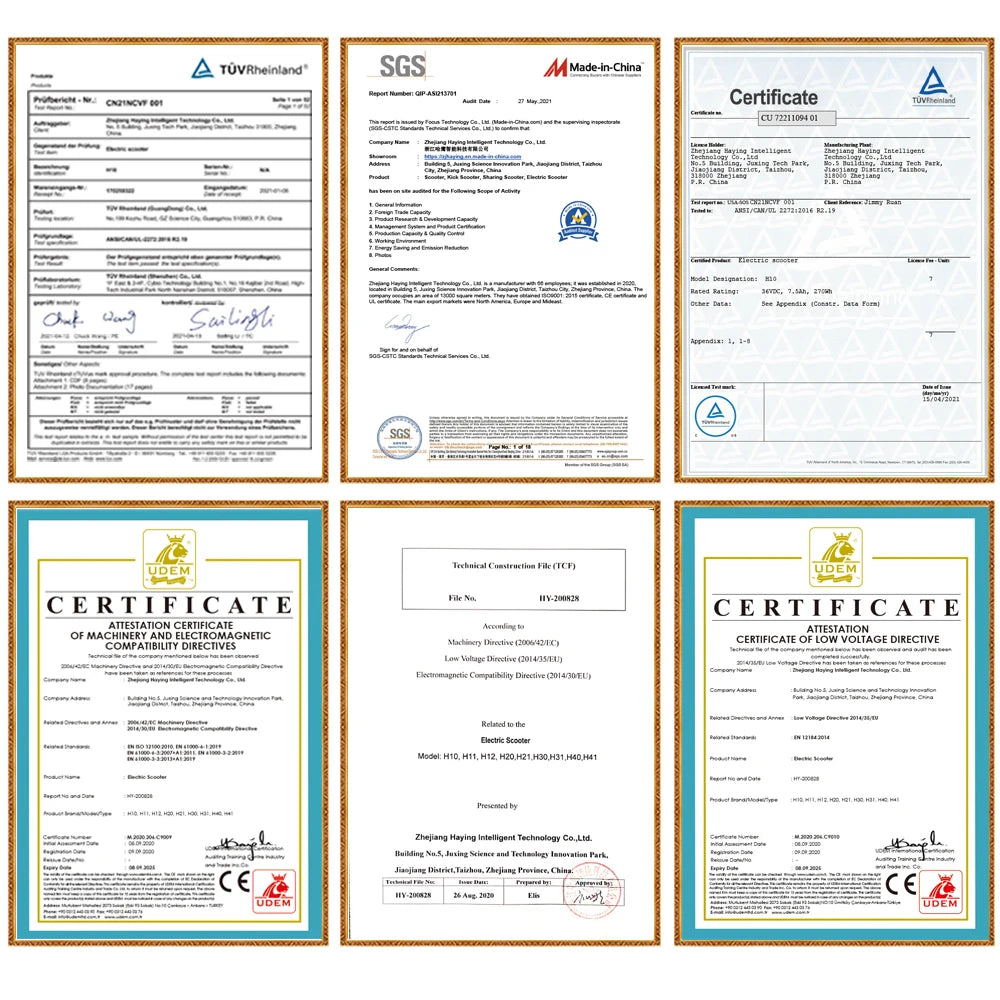

Certifications

Packing&shipping

Packaging Information:

Packing size (L×W×H)：1120*180*505mm
Packaging Material：5 layers corrugated carton
Gross weight：around 18kg Number of Scooters for one 40HQ： 685pcs (without pallet)
Package accessories：User manual, Charger, 2.5mm allen wrench

Logistics information:

Express, air shipping, sea shipping, land transportation

FAQ：

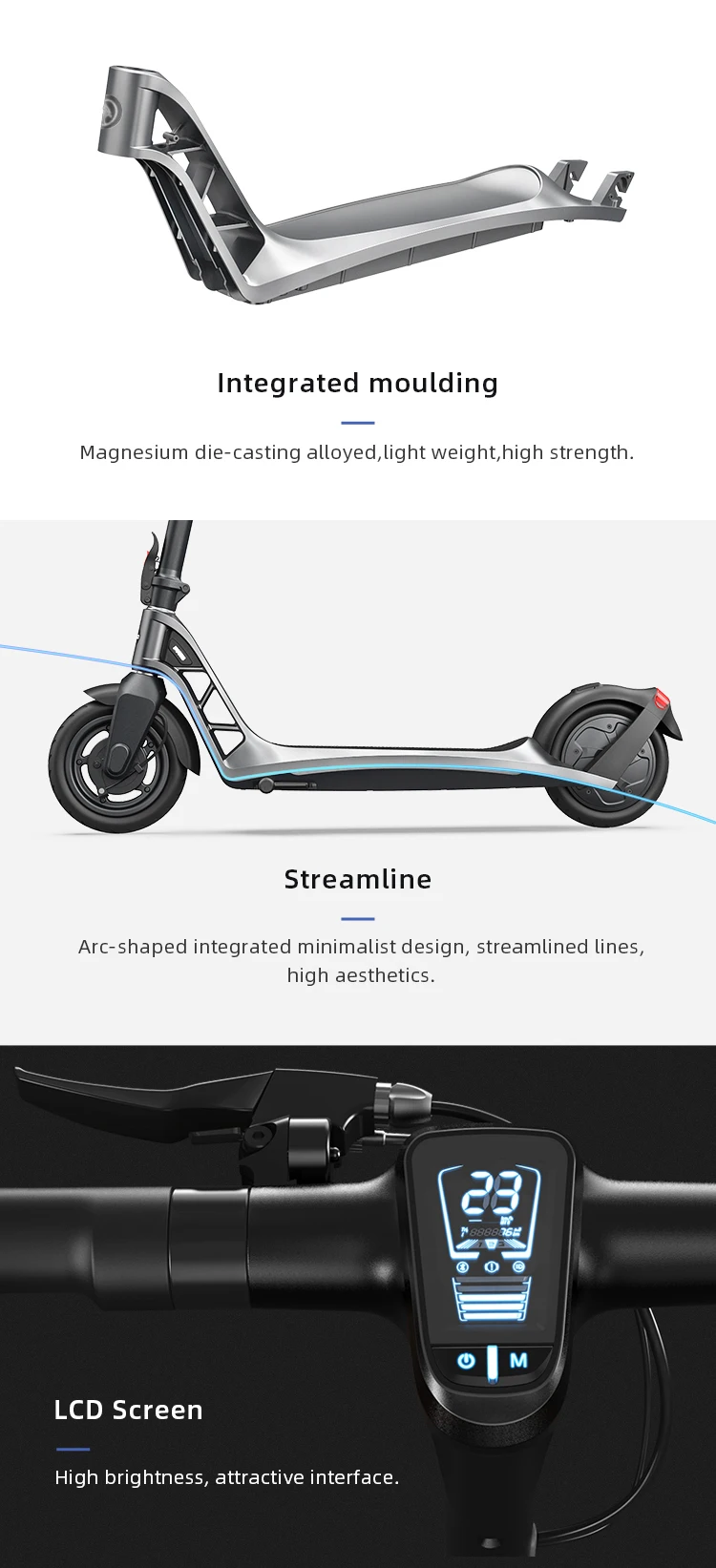

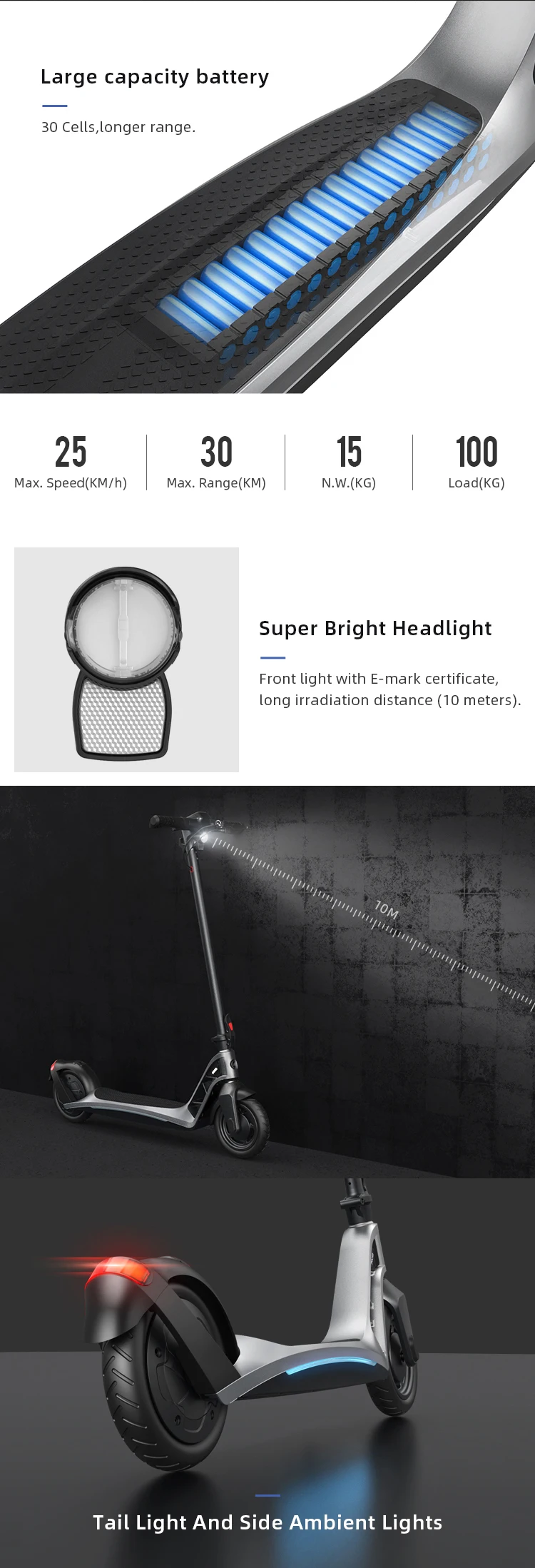

1.The body outline adopts a simple, streamlined design style, with a strong sense of fashion. 2.The aviation-grade magnesium alloy is light and strong. 3. Atmospheric lights on both sides of the car body make it cool and dynamic, which makes it highly recognizable and safer to ride at night. 4.3 seconds and easily fit into the trunk of the car. 5.9 inch rubber tire, PU-free inner tube, maintenance-free. 6.LED digital dial, the power speed is clear at a glance. 7. Intelligent battery management system, 6 intelligent protection. 8.Highlight the headlights, which illuminates brighter and farther when riding at night. Curved rear light design makes riding at night safer. 9. Double brake system, front wheel drum brake, rear wheel E-ABS anti-lock electronic brake, efficient braking to ensure riding safety.
