SPECIFICATIONS

Accessory Type: Dust collection,Scanner

After-sales Service Provided: Service Machinery Overseas

Application: FOAM MDF WOOD ACRYLIC ALUMINUM

Control system: Nc-studio/Mach3/DSP Control System

Function: Foam 3d Models Making

Item: 5 axis cnc router machine

Keywords: 5 axis cnc router

Material: Wood Plastic Acrylic Foam Polystyrene Composite

Name: 5 Axis Cnc Engraving Machine

No. of Spindles: ATC

Product name: 5 axis milling router machine for sale

Spindle Motor Power (kw): 13

Type: CNC Router Milling Machines

brand name: BCAMCNC

cnc or not: CNC

core components: Bearing,Motor,Pump,Engine,Pressure Vessel,PLC,Gear

dimension(l*w*h): 1300*2500*200mm

key selling points: High Productivity

machine type: CNC Router

machinery test report: Provided

number of axes: 5

place of origin: Shandong, China

positioning accuracy (mm): 0.01

range of spindle speed(r.p.m): 6000 - 30000 rpm

repeatability (x/y/z) (mm): 0.01

travel (x axis)(mm): 1300

travel (y axis)(mm): 2500

video outgoing-inspection: Provided

voltage: AC380V/50HZ

warranty: 3 Years

weight (kg): 3500

High Power Automatic Tool Changer 1325 Wood Foam Plastic Aluminum Cnc 5 Axis Milling Router Machine for Sale

Product Detail

Product parameters

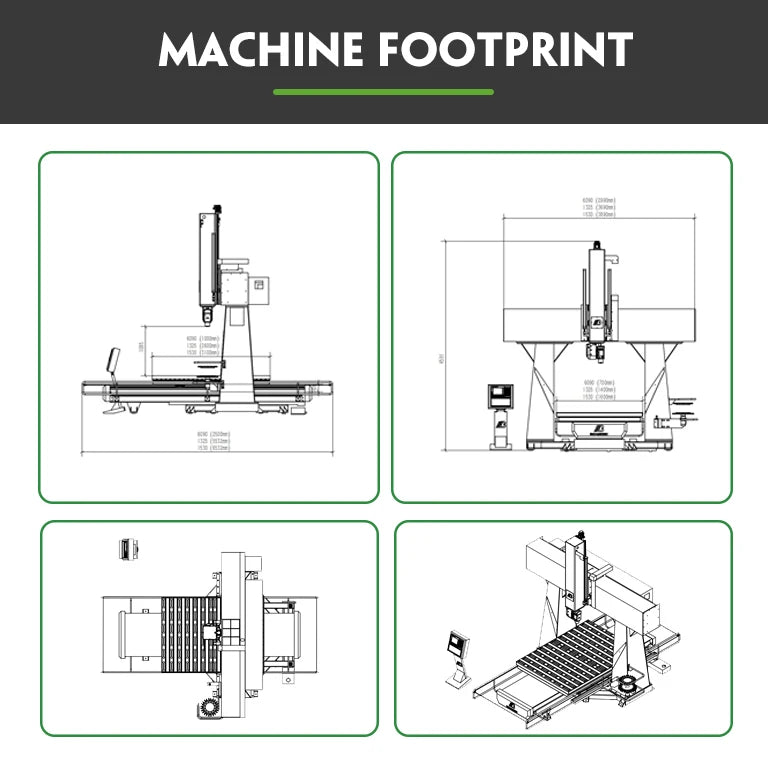

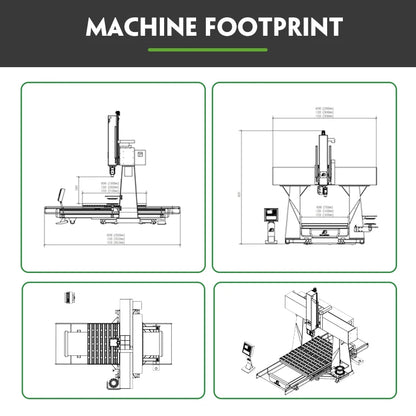

X,Y,Z Working Area	BCM1325D – 5axis 1300*2500*800mm(500-1500mm)
		BCM1530D – 5axis 1500*3000*800mm(500-1500mm)
		BCM2030D – 5axis 2000*3000*800mm(500-1500mm)
Spindle Power	13.5kw Italy HITECO air cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.05
Repeat positioning accuracy	±0.05mm/1000mm
Table Surface	Vacuum table+T-solt table
X,Y,Z Rail and Trasmission	X Y Z axis screw drive
Max. Rapid Travel Rate	20m/min
Max. Working Speed	10m/min(Calculated based on the material 8 meters of foam)
Cutting thickness	According materials
Spindle Speed	6000-24000RPM
Drive Motors	Japanese Yaskawa servo motor and drivers
Working Voltage	AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ
Command Language	G Code
Operating System	Taiwan Syntec 610MA-E5 CNC system with RTCP
Interface	USB
Software Compatibility	Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment	Temperature: -20℃~45℃ Relative Humidity: 5%~75%

Samples

Company Profile

Certifications

Customer Visit

FAQ

1. How to use the machine after receiving the machine
Firstly, when you got machine, you need to contact with us, our engineer will work together with your to deal with it, Secondly, we send user manuals and CD to you before you get the machine. Thirdly, Our professional technician online teach you until you can use it well by yourself.
2. Payment terms, There are 2 ways to pay money.
1)T/T, means international bank transfer. 50% deposit, we produce the machine for you. 50% before shipping. It is convenient and fast.
2)Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee. 3)Other kinds of payment we can consider if acceptable for us.
3. How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
4. Do you have a setup and equipment commissioning service?
Yes, we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
5. What is the warranty period for the equipment?
Three years warranty and 24 hours online professional technical support.
