SPECIFICATIONS

Command Language: G Code

Interface: USB

Max. Rapid Travel Rate: 70m/min

Max. Working Speed: 50m/min

No. of Spindles: Multi

Operating System: Taiwan Syntec 6MB control system

Software Compatibility: Option:Type3/Ucancam/Artcam/Solidworks,etc.

Spindle Motor Power (kw): 9.5

Spindle Power: HSD

Table Surface: Vacuum table + T-solt table

Working Voltage: AC380v/50HZ/3 phase

X,Y,Z Working Area: 1300*2500*200mm

brand name: BCAMCNC

cnc or not: CNC

core components: Bearing,Motor,Engine

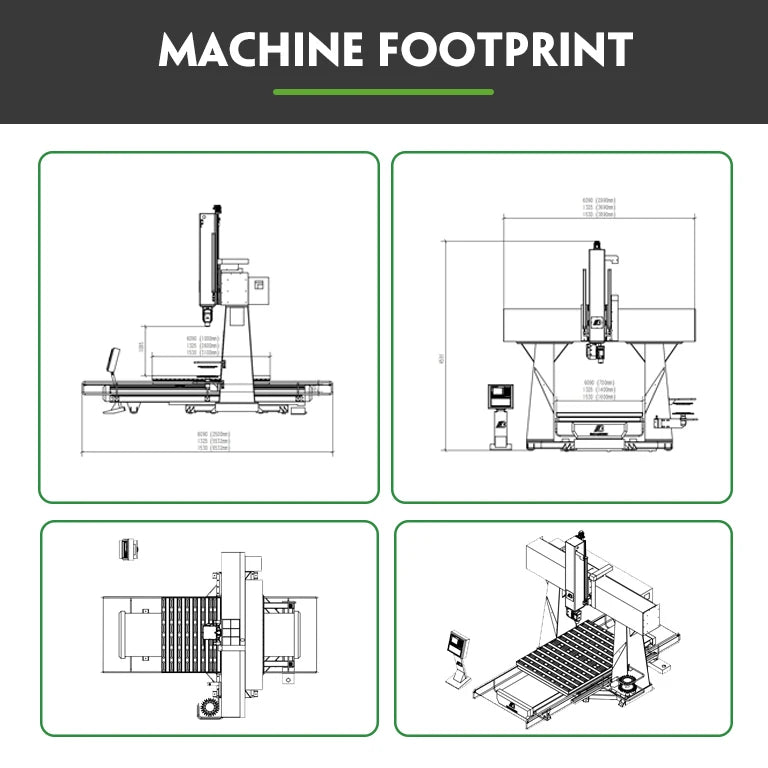

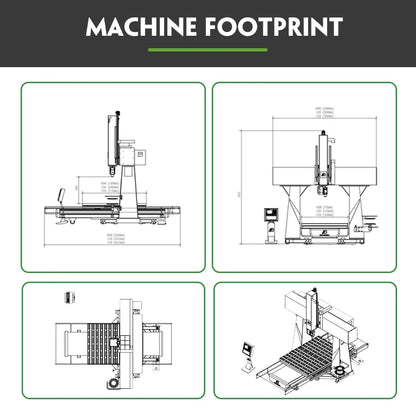

dimension(l*w*h): 6200*2200*2200MM

key selling points: High-Accuracy

machine type: CNC Router

machinery test report: Provided

number of axes: 5

place of origin: Shandong, China

positioning accuracy (mm): 0.03

range of spindle speed(r.p.m): 6000 - 24000 rpm

repeatability (x/y/z) (mm): 0.03

travel (x axis)(mm): 1300

travel (y axis)(mm): 2500

video outgoing-inspection: Provided

voltage: 380V 50HZ 3P

warranty: 3 Years

weight (kg): 4000

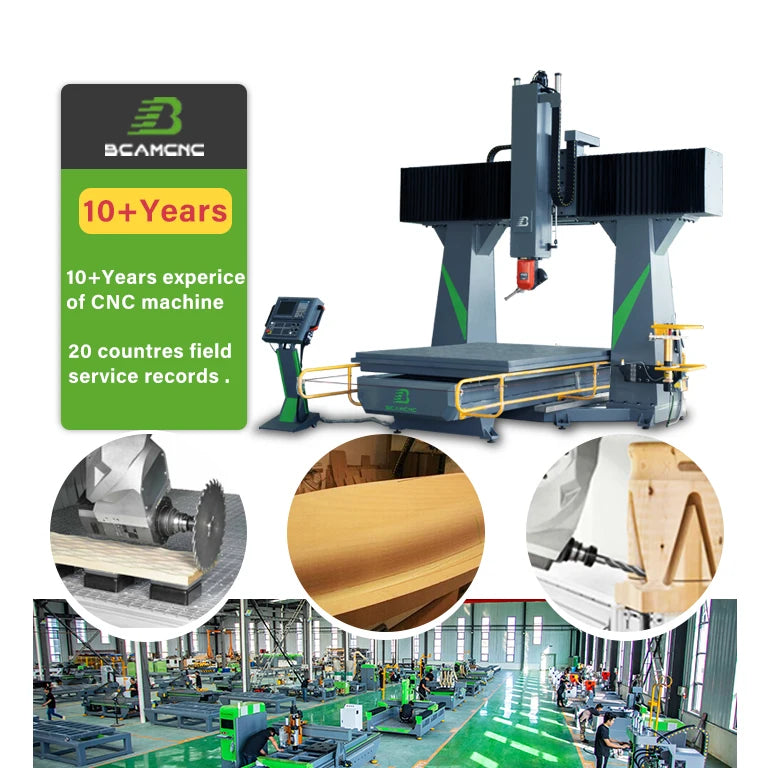

High precision 5 axis CNC router 1325 for processing complex curved plastic products

Product Parameters

Model	BCM1325-5axis
Spindle Power	Italy 13.5kw Italy HSD air cooling spindle cooled Up to 24,000, fully programmable HSK 63
Max. Rapid Travel Rate	70m/min
Max. Working Speed	50m/min
Software Compatibility	Option:Type3/Ucancam/Artcam/Solidworks,etc.

Product Detail

Samples

Company&Customer visit

Company certification

Related Machine
