SPECIFICATIONS

Color & Page: Single Color

Control Type: Android

Plate Type: Roll-To-Roll Printer,Digital Printer

Power Mode: Power Supply

Print Media: Paper (Plain)

Print Resolution: 1200 dpi,600 dpi

Print Speed: 10 ppm

Print head: Epson I3200,I3200

Print resolution: 600x1200dpi

Print speed: 80m/min

Printer Function Type: Multifunction

Printing width: 440mm

Printing Material: Flex

Printing material: paper

RIP software: Printfactory

Resolution: 600 dpi,1200 dpi

Type: Inkjet Printer

Voltage: 380v

automatic grade: Automatic

color: 4 color

condition: New

dimensions(l*w*h): 7600x1400x2100mm

ink: Water Based ink

ink type: Eco Solvent Ink

place of origin: Shandong, China

usage: Paper Printer,Label Printer,Bill Printer,Wallpaper Printer

warranty: 1 Year

weight: 4000

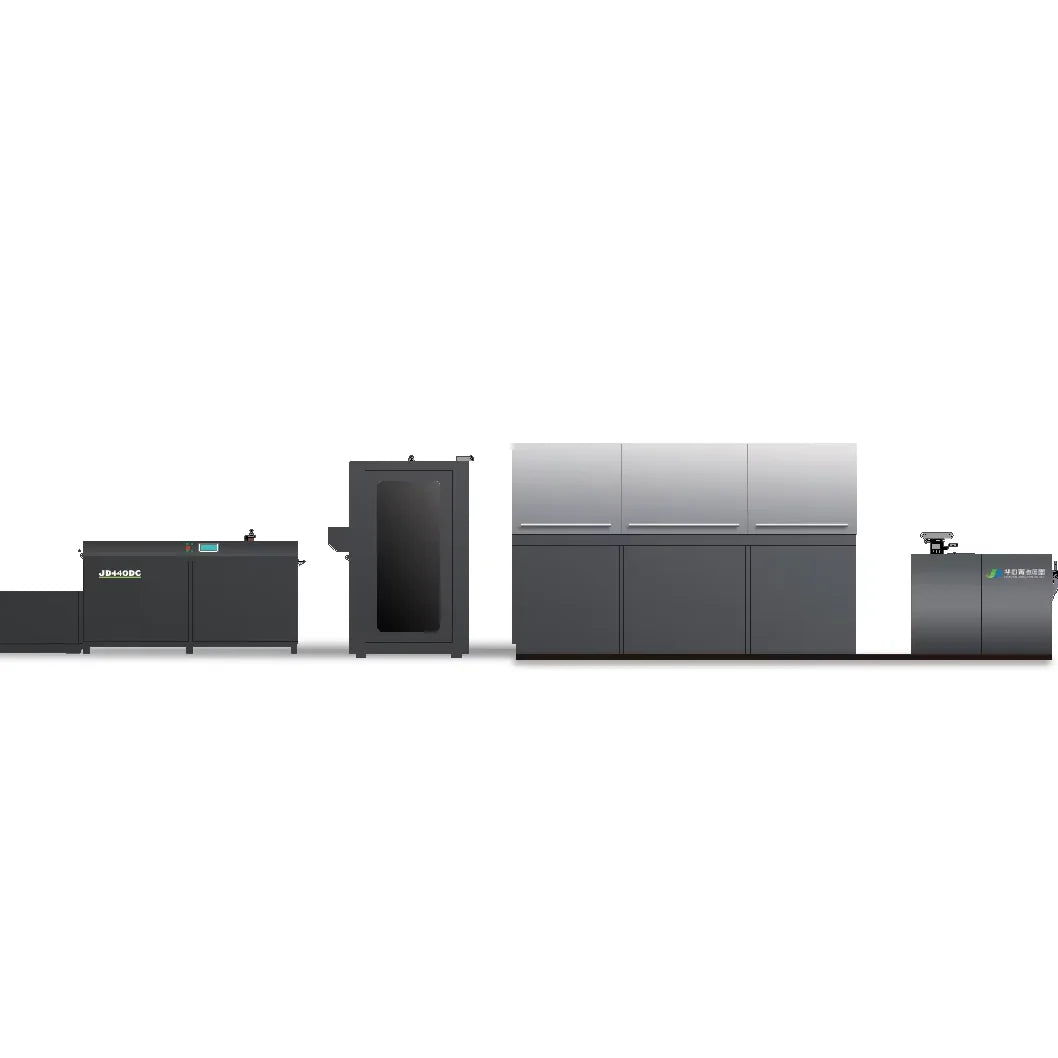

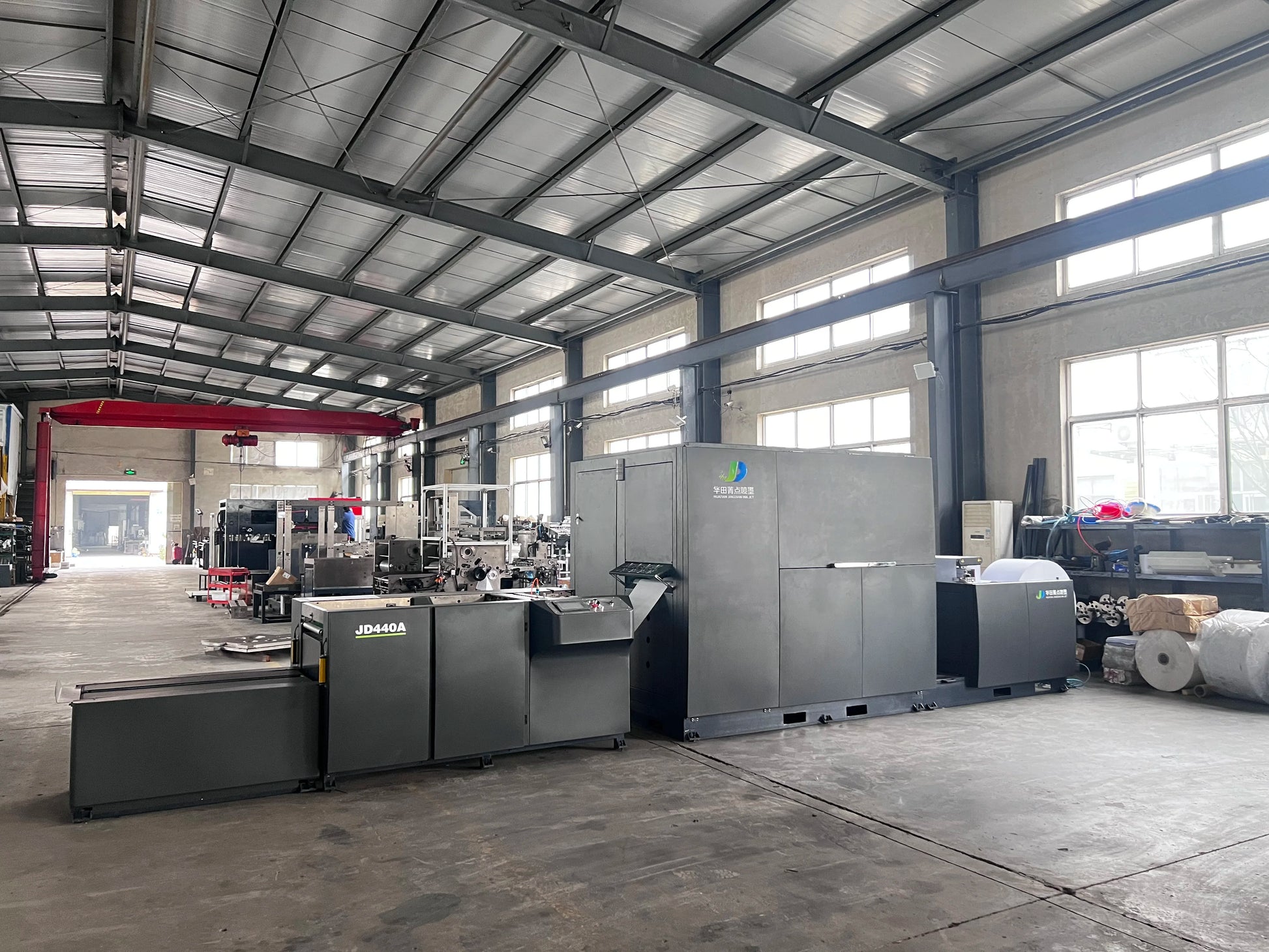

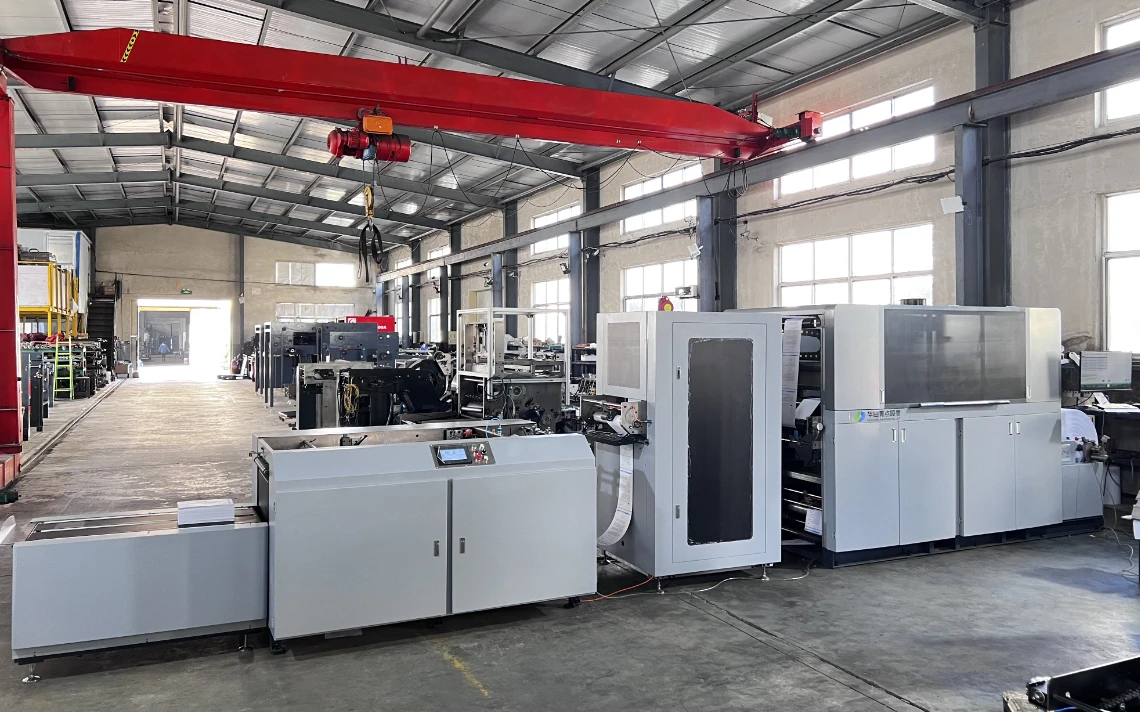

JD440E  Rotary digital inkjet printer

Printed sample

Characteristics:

JingDian Color Inkjet Rotary Digital Printing Machine, black and white/ color/single and double-side sheetfed inkjet digital printing machine are produced by Huatian Precision machinery. Founded in 2003, Huatian Precision has been specialized in the production of sheetfed paper, single-color, multi-color, single and double-side offset printing machines, water-based flexo graphic printing machines, packaging equipment and other precision machines for 20 years. With the large database and rich experience in designing and manufacturing, through independent design and independent production of parts, the company has manufactured a variety of inkjet digital printing machines.The machine has a compact design, small footprint, complete functions and high configuration, which is a very cost-effective product.

Mechanical part:

1. The machine is composed of unwinding unit, front printing, back printing, hot air plus IR dryer unit, paper storage unit, cutting unit and paper delivering unit.

2. The unwinding unit is equipped with: paper roll automatic lifting mechanism, paper roll automatic tension control mechanism, paper automatic correction mechanism, paper automatic powder removal, static removal mechanism. In order to ensure the high-precision printing quality and prevent changing the accuracy of the machine when transportation and handling, the printing unit adopts the overall base and the overall wall plate design and manufacturing, the guide roller uses small bearings, high-precision manufacturing, to ensure the operation accuracy unchanged , and the paper transportation is more stable. Due to the deformation of paper printing after drying, this machine adopts unique design of post-constant tension mechanism, so different thickness of paper and different ink absorption  after drying by printing, the post-tension is constant, and the front and back printing accuracy is higher.

3. The drying mechanism of the front and back side is independent and parallel to the printing unit, the temperature of each drying unit can be set according to the amount of ink on the front and back side, effectively preventing the paper deformation caused by high temperature, and the drying mechanism parallel to the printing unit avoids the blockage of the nozzle caused by the upward discharge of heat.

4. The independent paper storage unit can ensure the normal operation of cutting, shifting and delivery stations when the machine prints at high speed.

5.  The cutting unit adopts flying knife type and small diameter knife cutting device, with small power, fast speed and stable performance; the cutter has a long service life, equipped with a vertical cutter mechanism, and micro adjustment of the left and right cutting size without stopping machine. and the shift division function, which is convenient for the postpress process; The automatic non-stop paper delivery function can meet the working mode of one person and two machines.

6. The whole machine control system adopts imported PLC , which has stable performance and long service life. Touch screen operation mode of man-machine interface, artificial intelligence; Multi-axis linkage servo motor, driven by motion controller, high precision and stable performance. The whole machine control system is completely independently developed and designed. Parts production, assembly, adjustment are carefully selected, the materials are appropriate, the manufacturing is fine, the precision is high, and the life is long, which provides an effective basic guarantee for high-precision printing.

Printing part:

1. The nozzle adopts Epson i3200, the resolution is 1200*600/1200*900dpi/2bit, and the four-channel on-demand piezoelectric nozzle makes the printing quality more delicate.

2. The ink supply system adopts advanced negative pressure control device, and the ink supply is more stable.

3. Intelligent digital file processing, imposition, RIP, variable data, color management, set file standardization and other functions in one of the prepress document process, fast/efficient and convenient , truly realize intelligence, digitalization and informatization.

4. Advanced printing software control system, fast document processing process,  industrial-grade piezoelectric four-color nozzle, four-color domestic ink, which make the printing text is clear, the graphic pattern saturation is high, the flat screen and gradient color are good, and the printing quality is high.

5. Low carbon and environmental protection, saving paper, ink and electric energy, low cost of use, easy to operate and maintain, high efficiency, high production capacity, high added value, it is a new products of technology revolution .

Parameter :

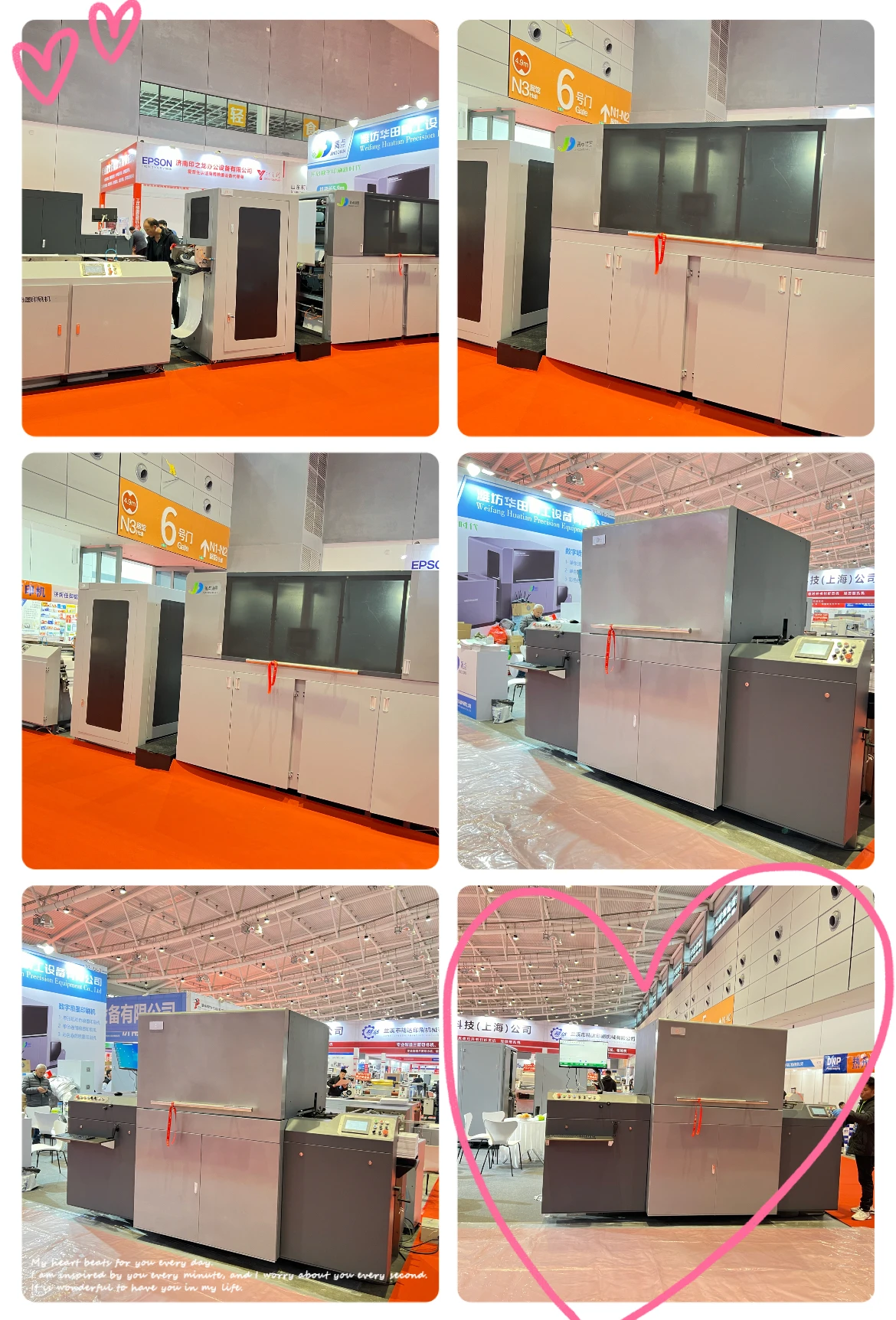

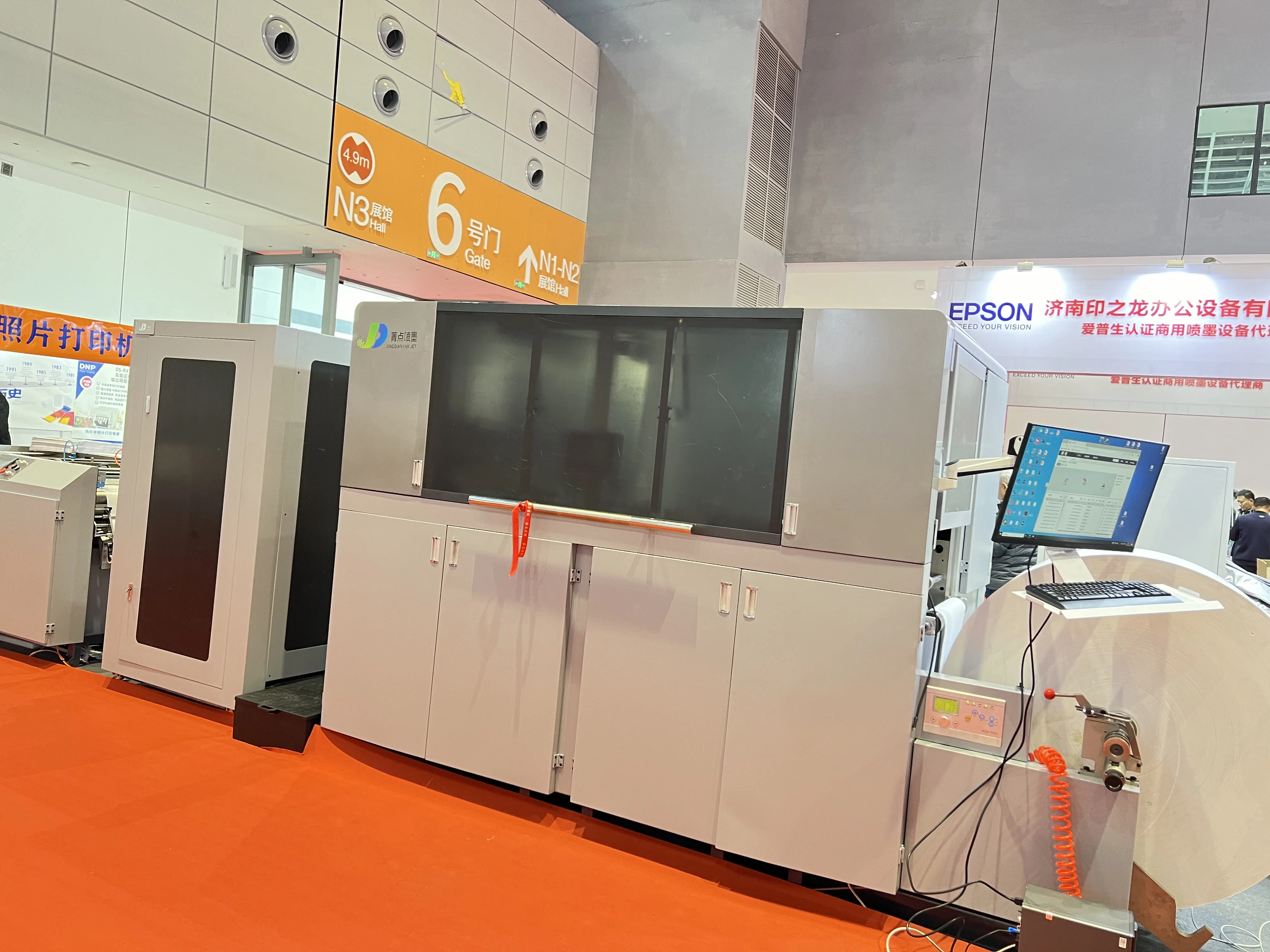

exhibitoon:
