SPECIFICATIONS

Colors: 6 Colors

Gear module: 1.5mm

Heating method: Electricity heating

Marketing Type: Flexo printing machine

Material feeding width: 1000mm

Max Printing Width: 960mm

Model: JT-YTC61000

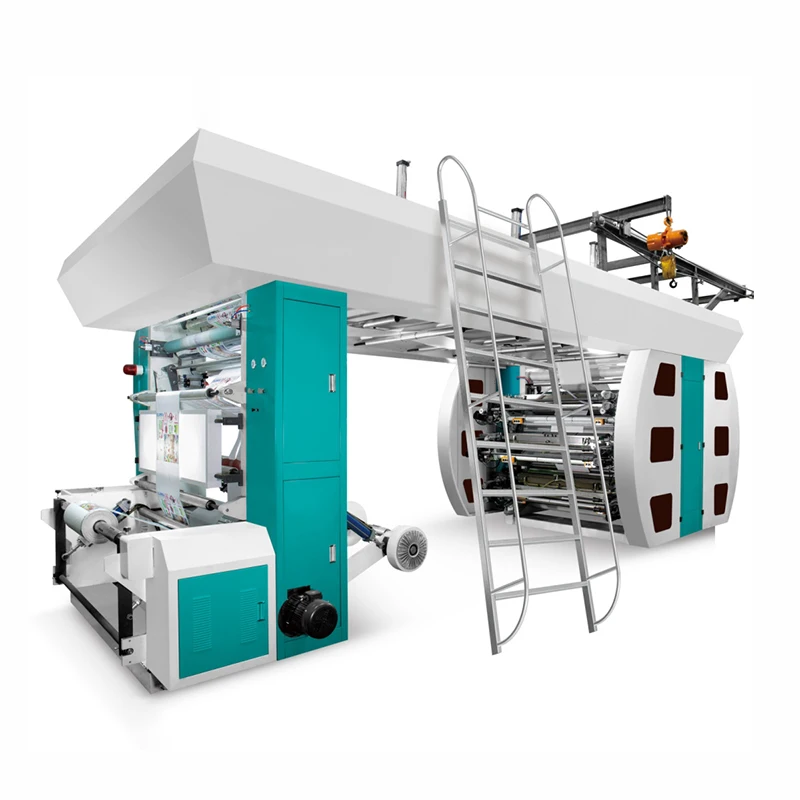

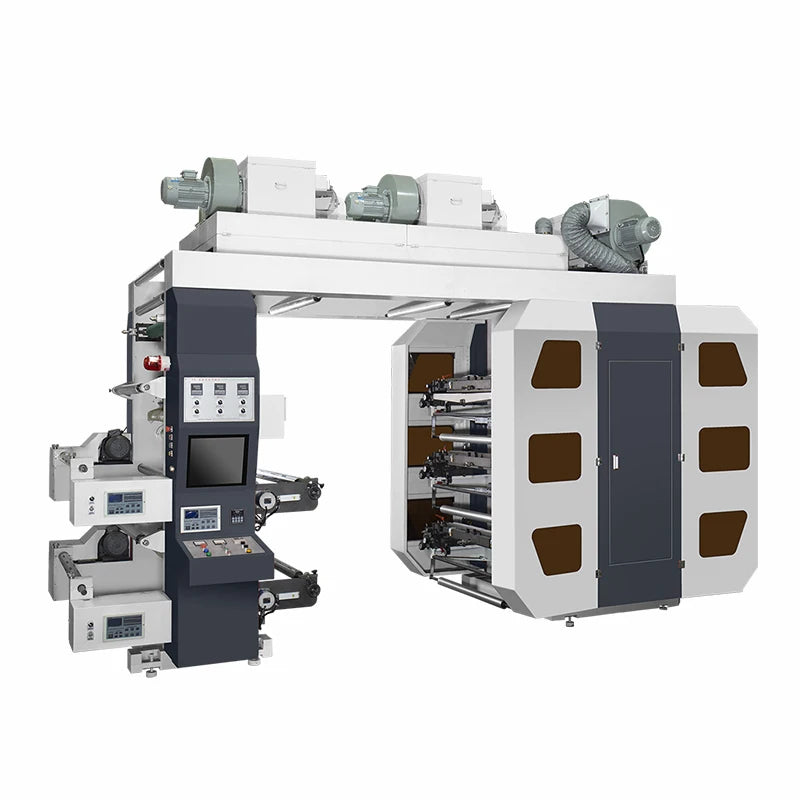

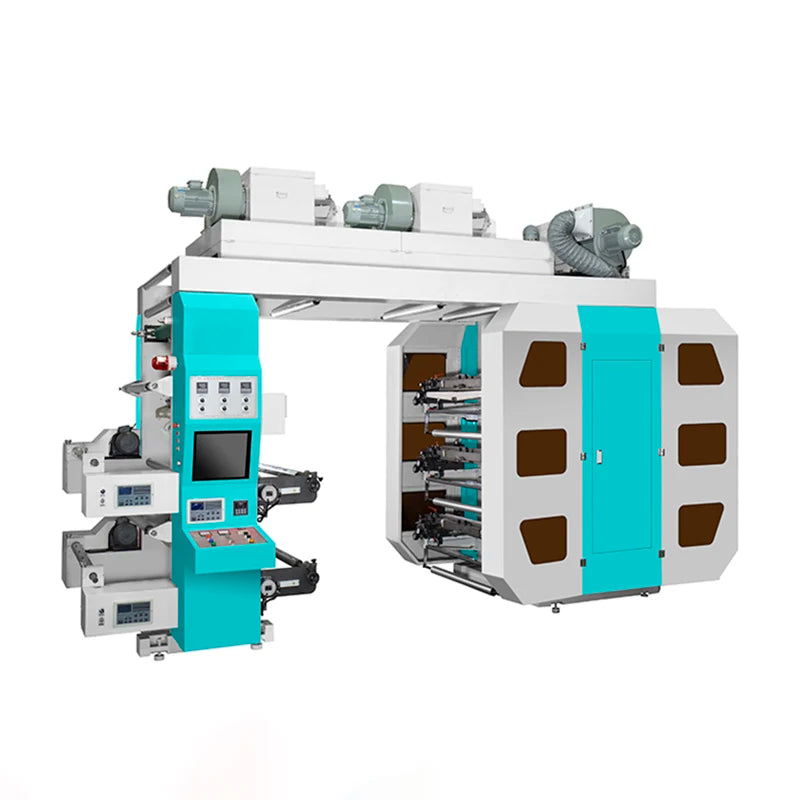

Product name: Auto Feeder Machine Of Flexo Printing Machine

Structure type: Central impression(central drum)

Thickness of plate: 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available

Type: Flexographic Printer

automatic grade: Automatic

brand name: Jeta

color & page: Multicolor

condition: New

dimensions(l*w*h): 7340*2050*3600mm

place of origin: Zhejiang, China

plate type: Letterpress

print dimension: 960 mm

print speed: 120m/min

structure: CI

usage: Paper Printer,Card Printer

voltage: 380v

warranty: 1 Year

weight: 8000 KG

Products Description

Application:

This CE Certificate High Speed CI Type Auto Feeder Machine Of Flexo Printing Machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Features:

* [JT-YTC61000]CE Mini Flexo Printing Machine UV Flexo Printing Machine Second Hand Flexo Printing Machine is 00supported by the big drum, and greatly improving color registration, especially with extensible materials
* All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, 00increase the registration precision.

* Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation
* The machine is equipped with blower and heater; and the heater employed central temperature control system, 00automatic temperature controller, and separated heat source.

* The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
* Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
* Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, 00beating small, achieves finally perfect printing effect.

* Accurate printing effect achieved by special gear transmission device

* The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

Specification

Model	YTC-61000
Material feeding width	1000mm
Max Printing Width	960mm
Colors	6 Colors
Material	Non-woven fabric. Paper. Film. Aluminum foil. PVC.OPP.PE.BOPP.PE.NY.PET.CPP.
Thickness of plate	1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm ,Customized is available
Printing length	Standard is 400mm, Customized is available from 300-1000mm
Maximum machine speed	150m/min
Printing speed	120m/min
Register precision	longitudinal registration≤0.1mm Transversal registration≤0.1mm
Structure type	Central impression（central drum）
Gear module	1.5mm
Heating method	Electricity heating
Max. oven temp.	Max. 80℃(room temp. 20℃）
Web fixing method forun/rewinder	Safety chuck+ Air expanding shaft
Unwinder/rewinder paper	core 3＂
Max.unwinder/rewinder dia.	1000mm
Adhesive tape thickness for stick printing cylinder	0.38mm

SUITABLE MATERIAL
Kraft paper	40-350g/㎡		woven	15-120g/㎡
Single-sided coated paper	30-350g/㎡		Weave fabric	15-500g/㎡
Copy paper	15-350g/㎡
Firecrackers and paper	40-350g/㎡
Paper money and incense	25-350g/㎡		PVC	10-120g/㎡
Silicone paper	50-350g/㎡		OPP	10-120g/㎡
Coated paper	30-350g/㎡		PE	10-120g/㎡
Dust-free paper	25-350g/㎡		PET	10-120g/㎡
Release paper	40-350g/㎡		CPP	10-120g/㎡
Composite paper	30-350g/㎡

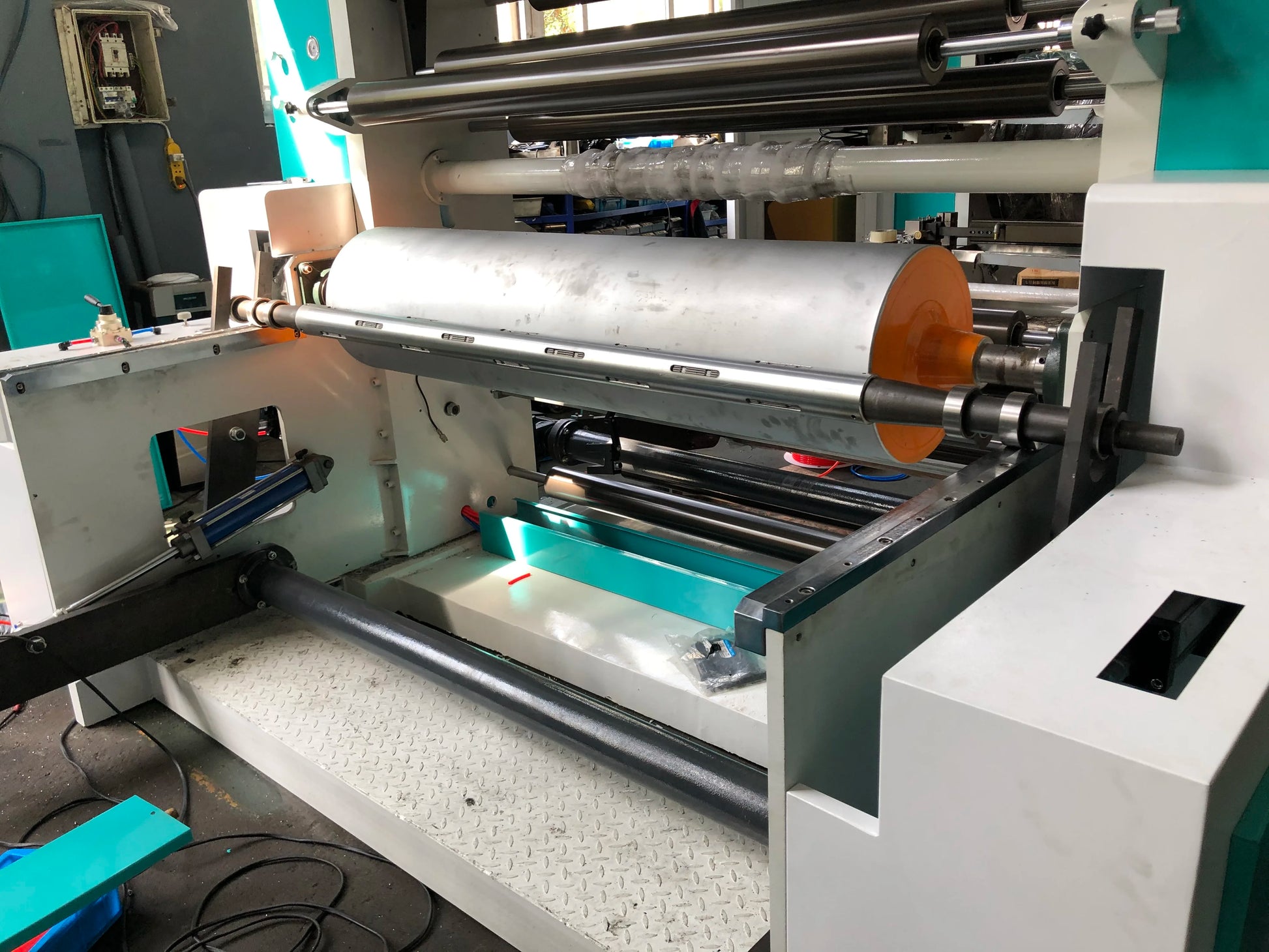

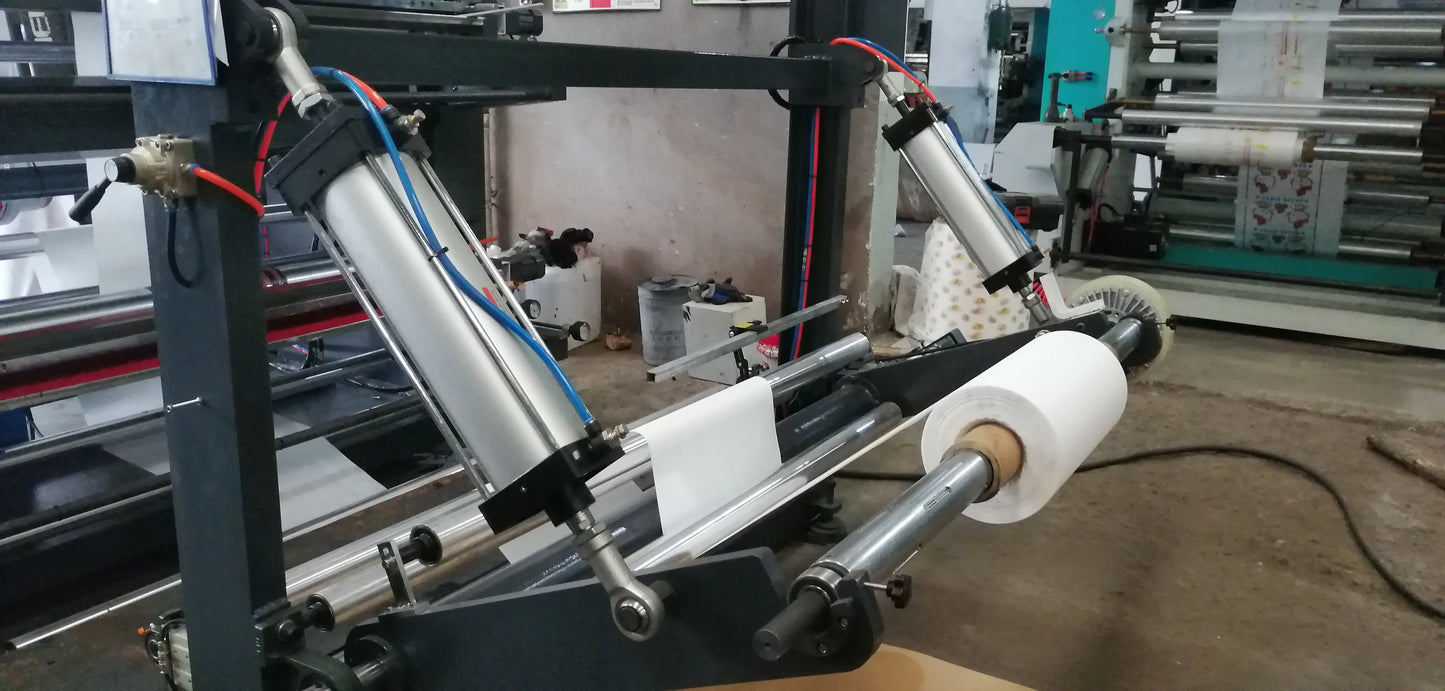

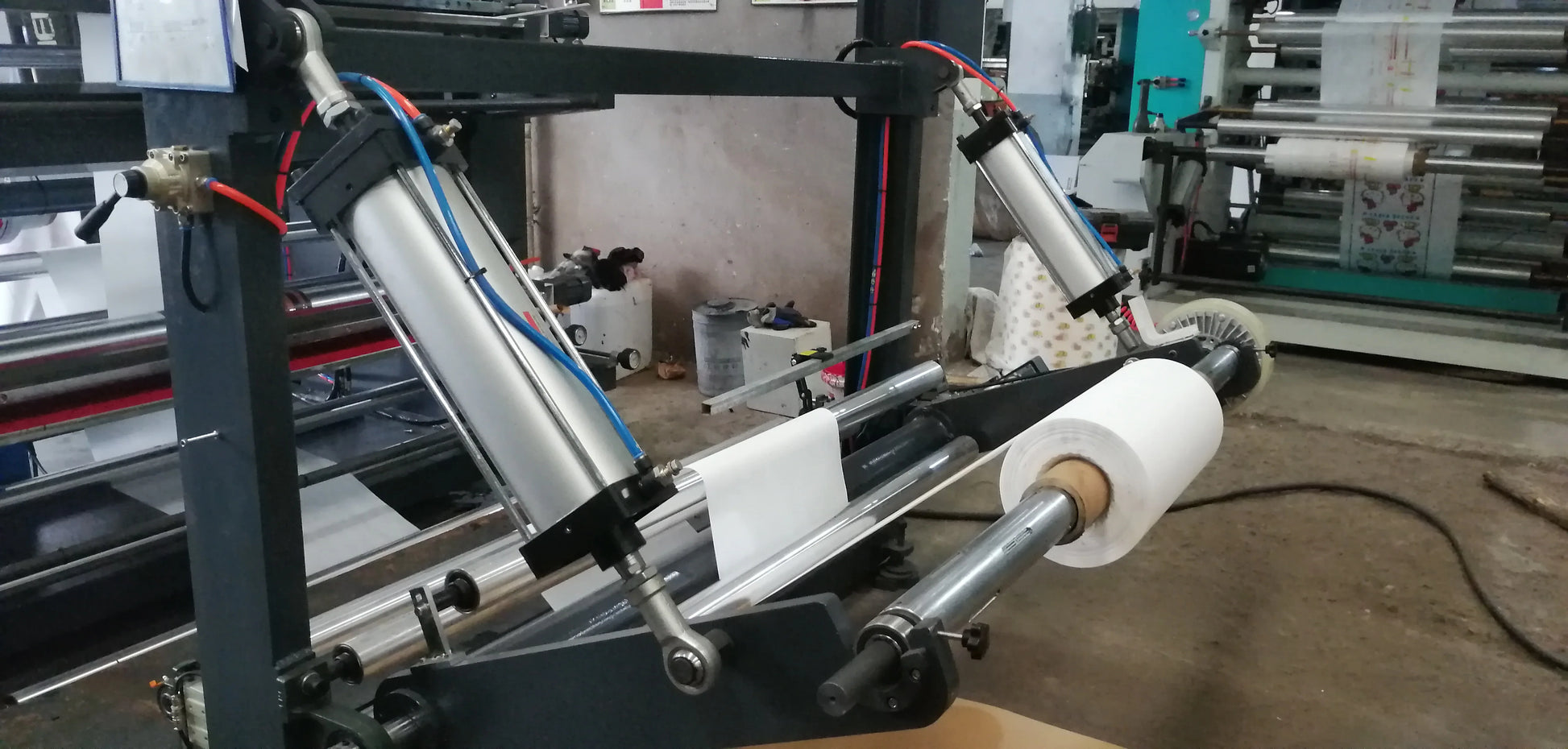

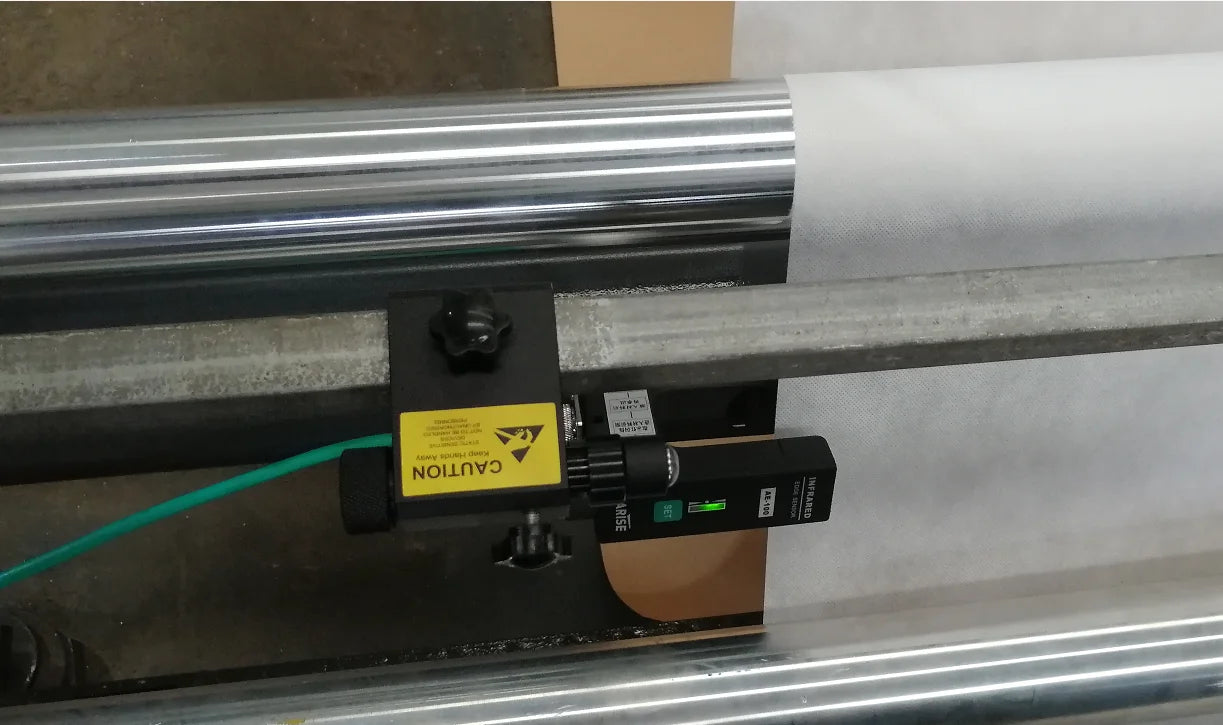

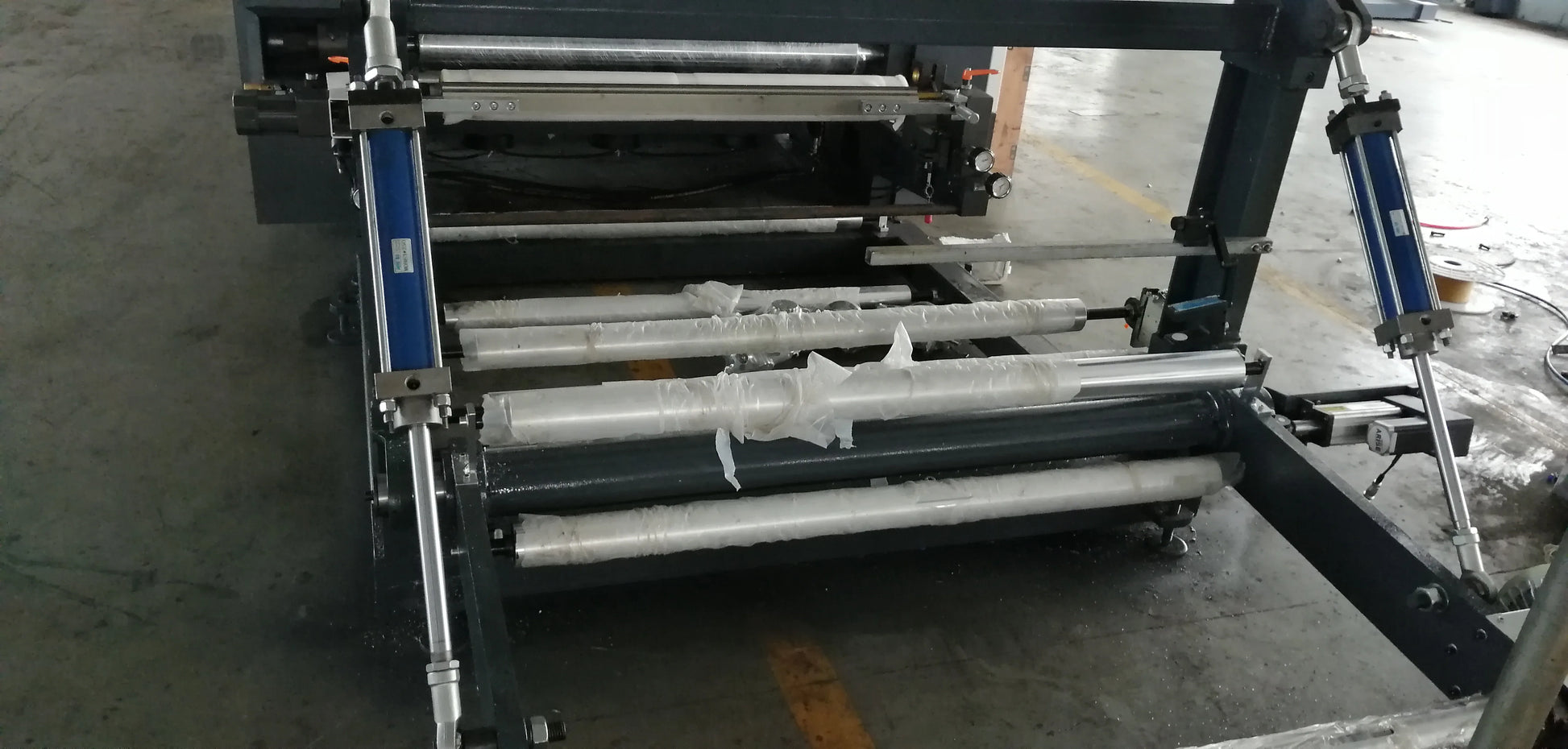

Details Images

Product packaging
