SPECIFICATIONS

Applicable Industries: Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Printing Shops,Construction works ,Energy & Mining

Bearing types: 2 types

Brand Name: MDBOT

Diameter(mm): 457.2

Dimension: 18 inches

MAX load(KG): 2000

Model: MW457

Thickness(mm): 230

Warranty: 1 Year

Product Overview

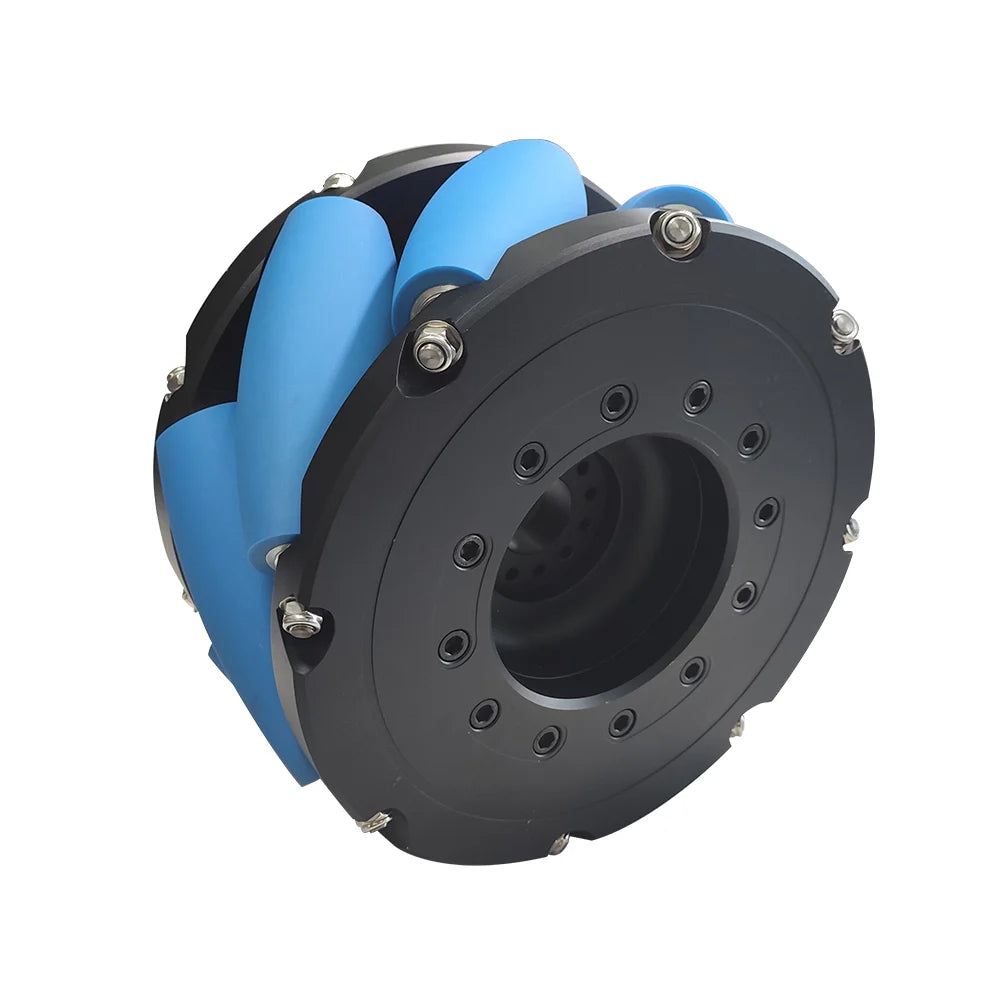

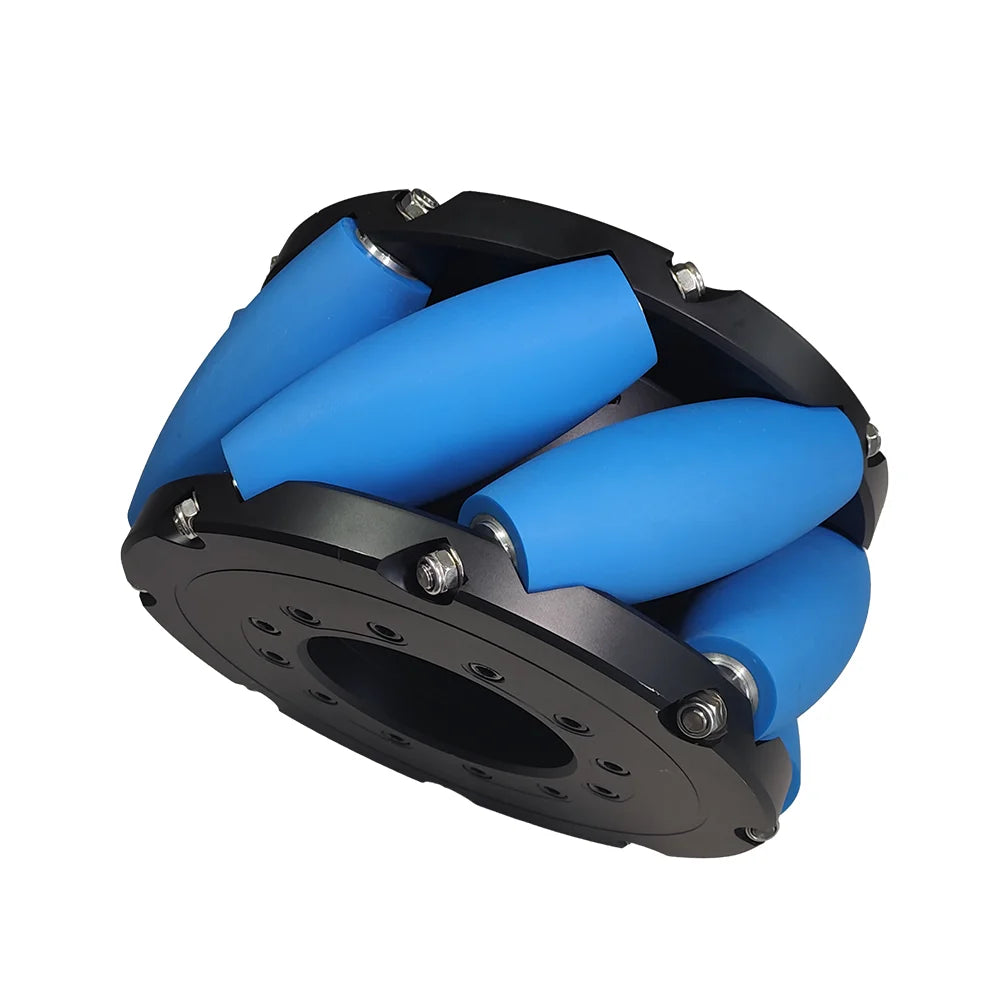

MDCAH Series Heavy Duty Universal Casters For AGV

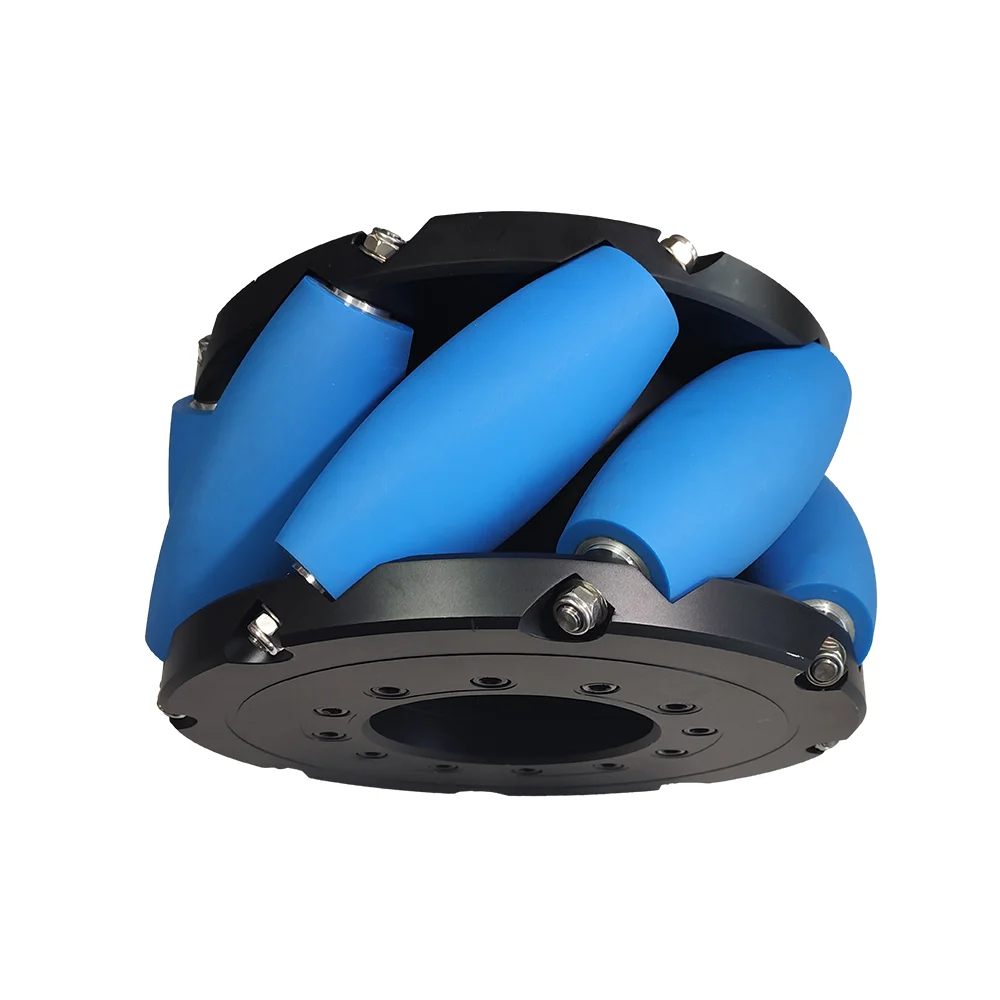

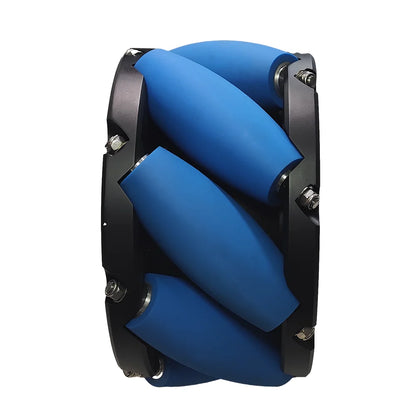

Mecanum wheels MW457 the rollers can move forward or backward like traditional wheels, they allow sideways movement, spinning wheels, front axle and rear axle in opposite directions. The center of these mecanum wheels is equipped with a roller shaft and the hub is connected. This mecanum wheel central mounting roller is divided into two rollers and the rollers are always in contact with the working surface, allowing for uneven surfaces For better performance, it has to be split into two vectors, one forward/backward and one left/right. When turning on the side of the wheel in the opposite direction, forward and backward. And to the side vector Add up. Otherwise the result of the other two wheels is the sideways carrier attached in four reverse directions.

Product Paramenters

Model	MW457
Diameter	457
Thickness	230mm
Shaft hole type	keyway of flange
Bearing types	2 types
Wheel material	Aluminum alloy 6061 or 7075
Wheel surface treatment process	Anodic oxidation
Roller material	Imported polyurethane
Wheel hub processing technology	CNC processing
Material of  roller shaft	40Cr
Max load capacity	8000KG/set,4 pieces/Set

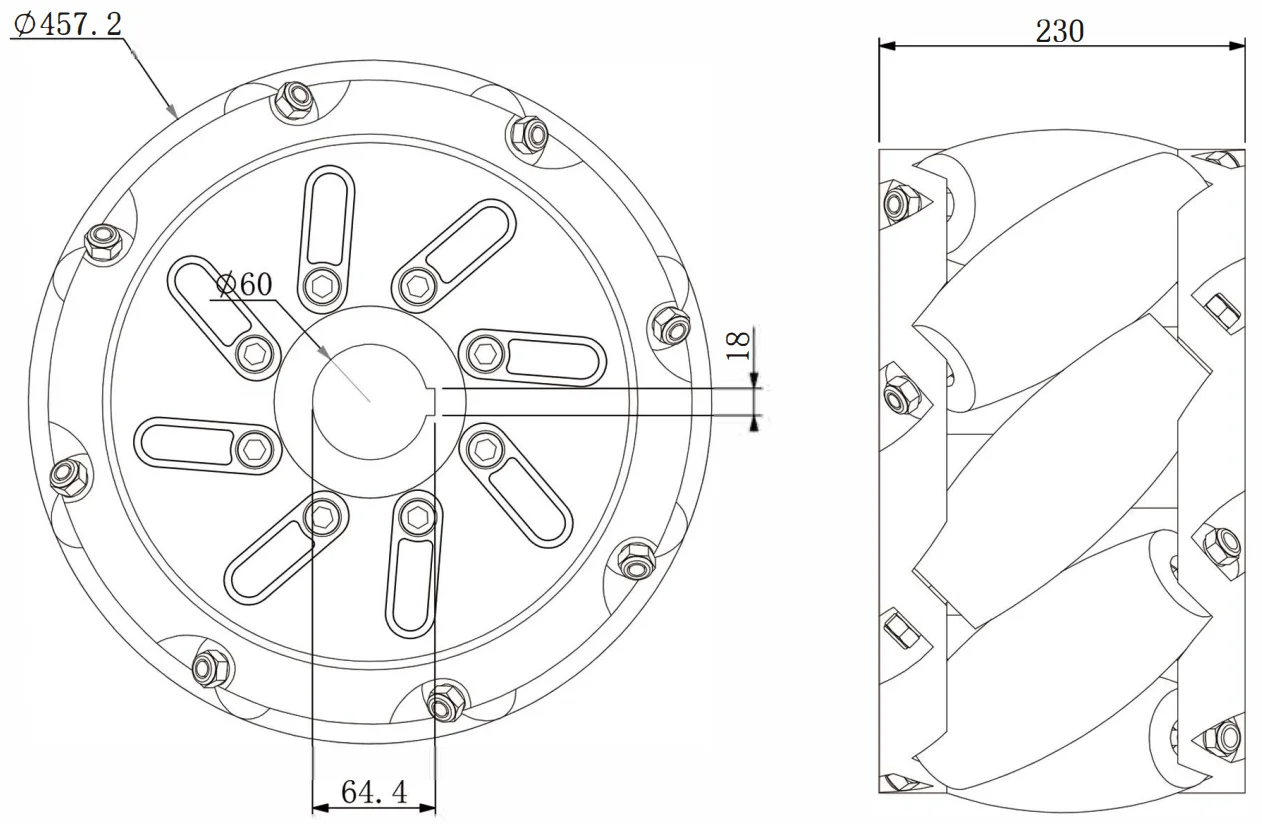

Dimensions

Product Advantages

Omnidirectional Movement

It can move forward and backward, move left and right, rotate in situ with zero radius, turn at a specified radius...

High Precision

Precise micro-movement, precise positioning

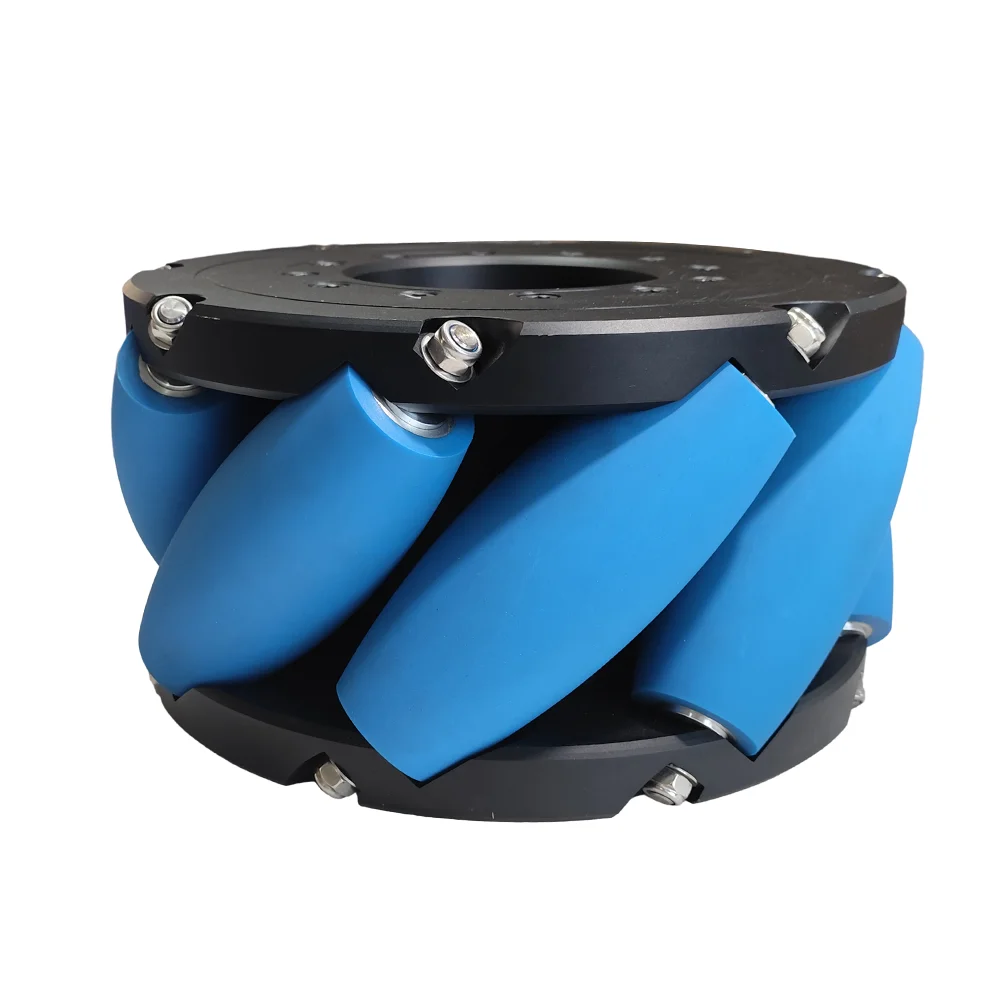

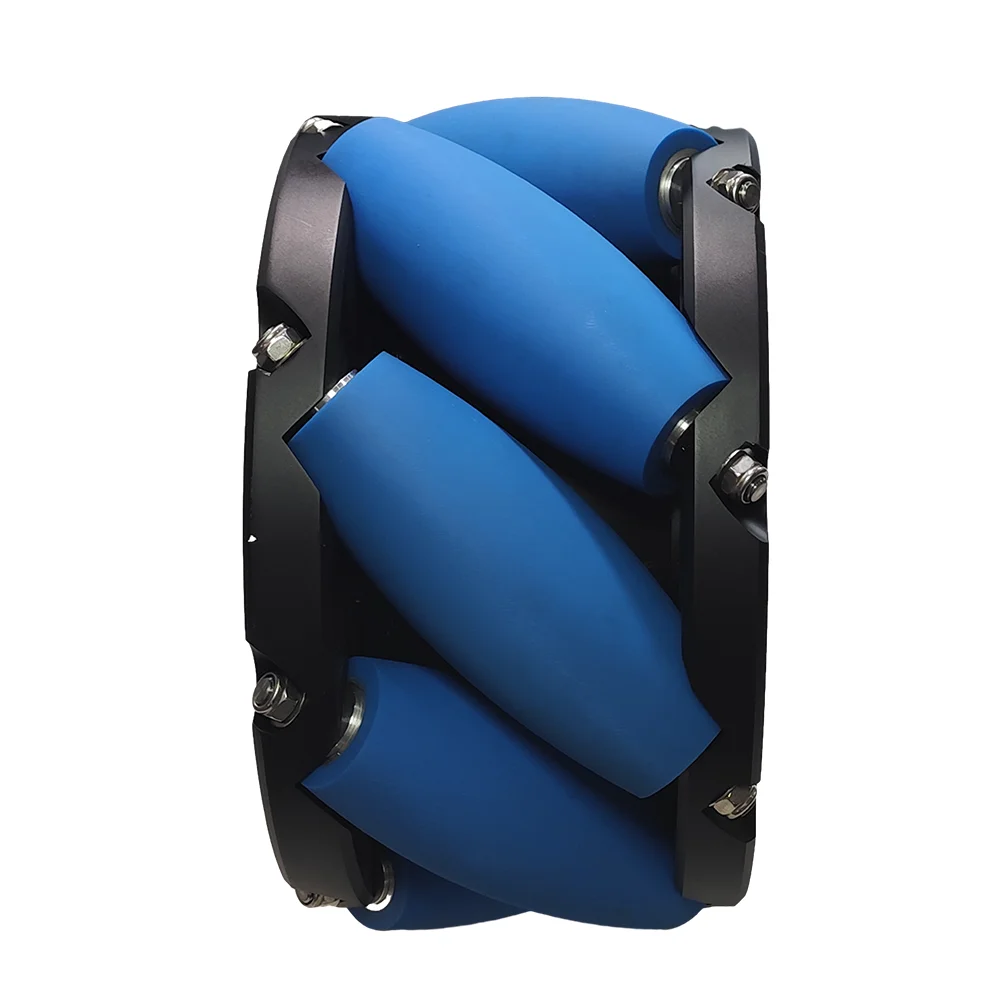

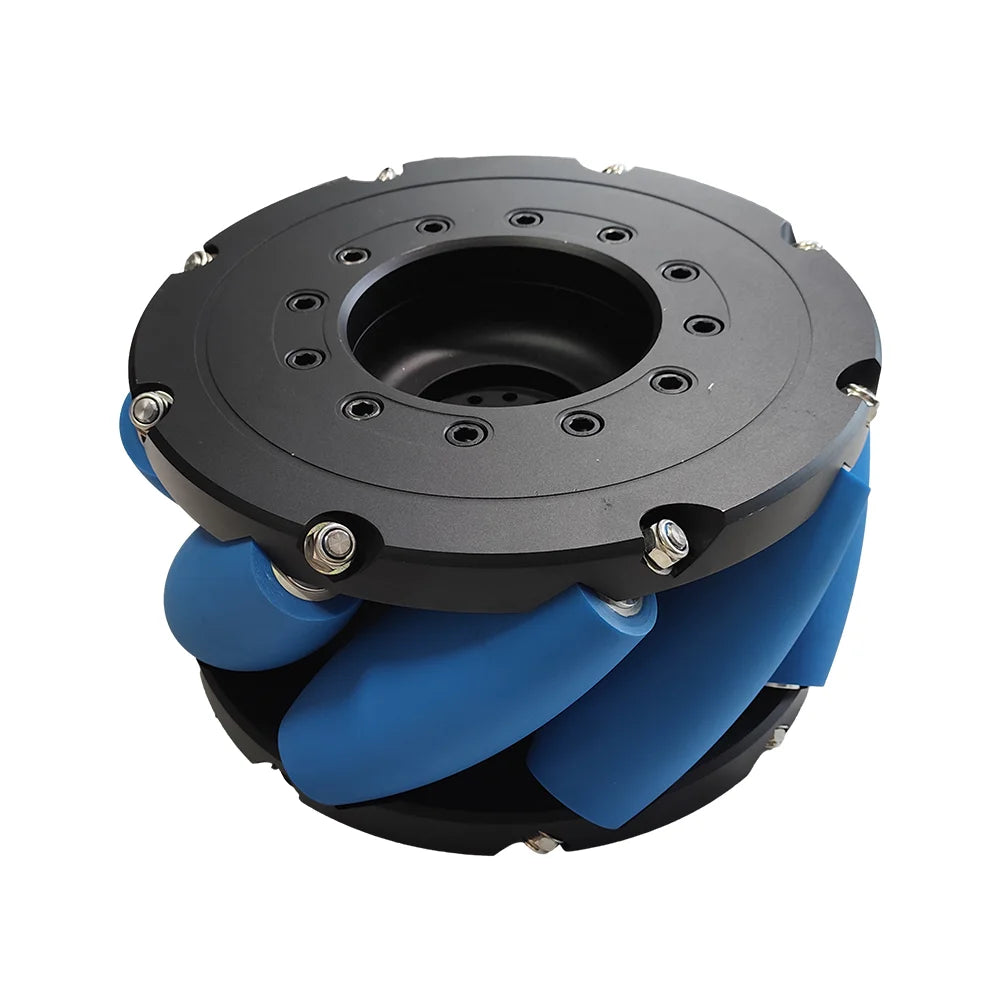

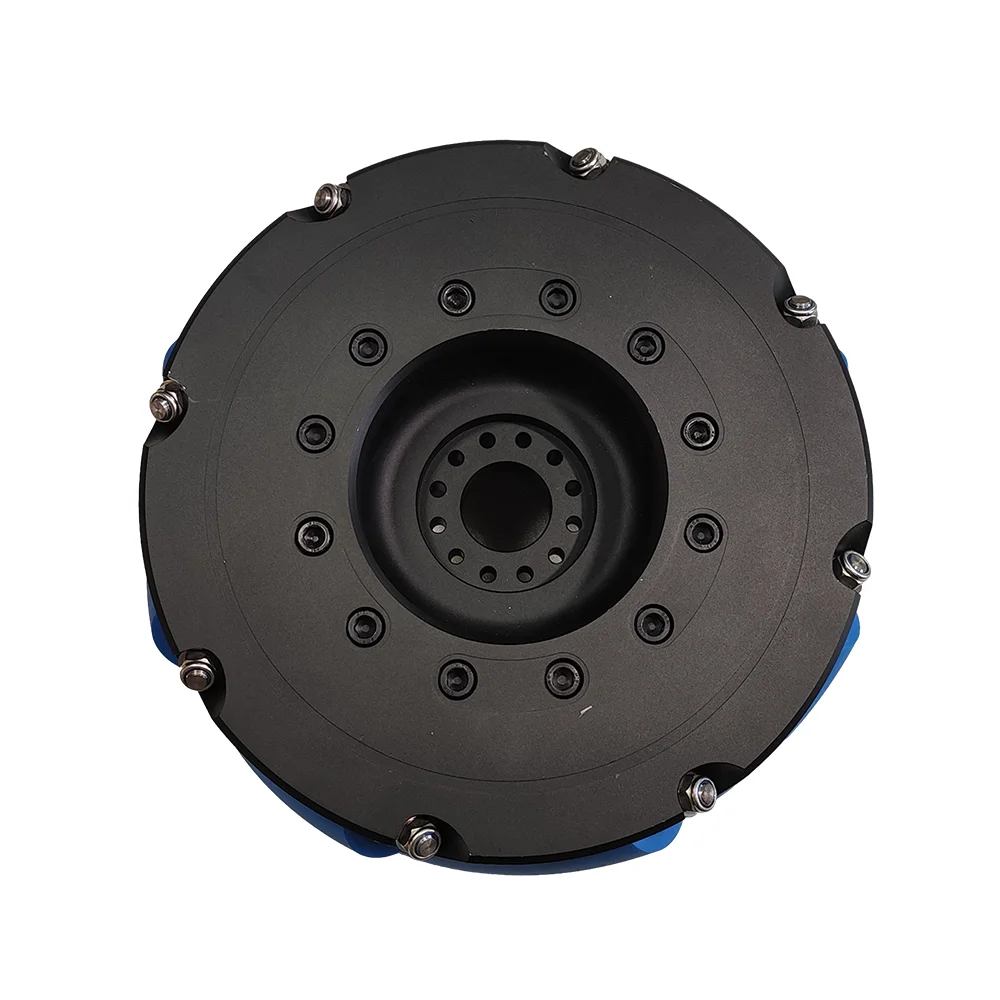

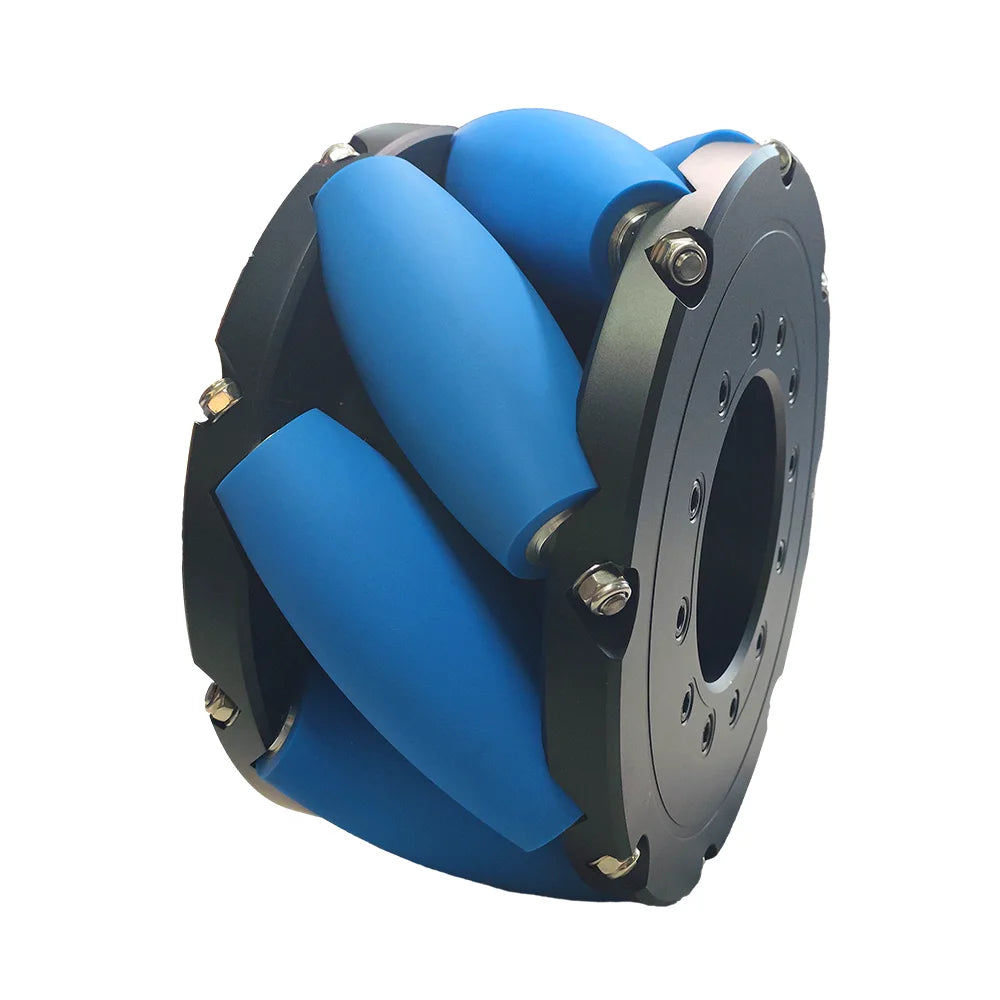

Details Images
