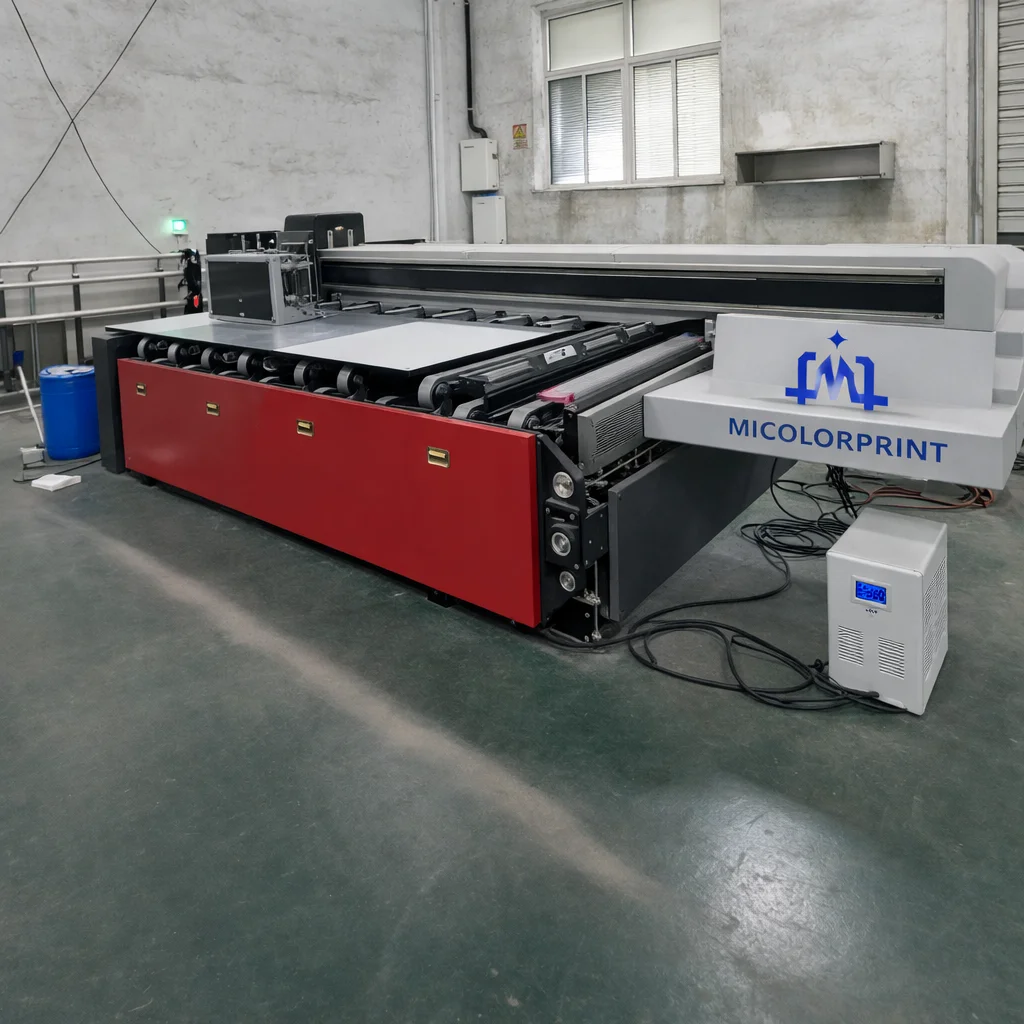

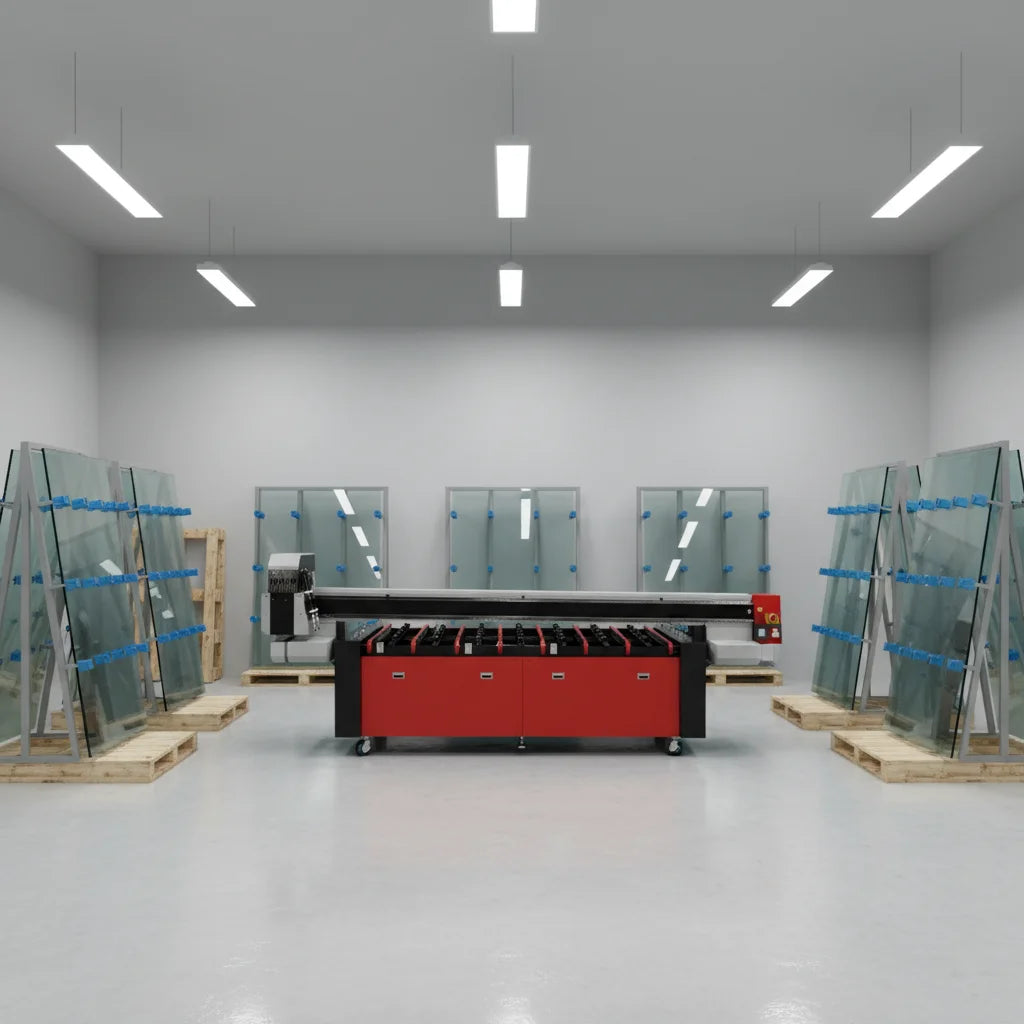

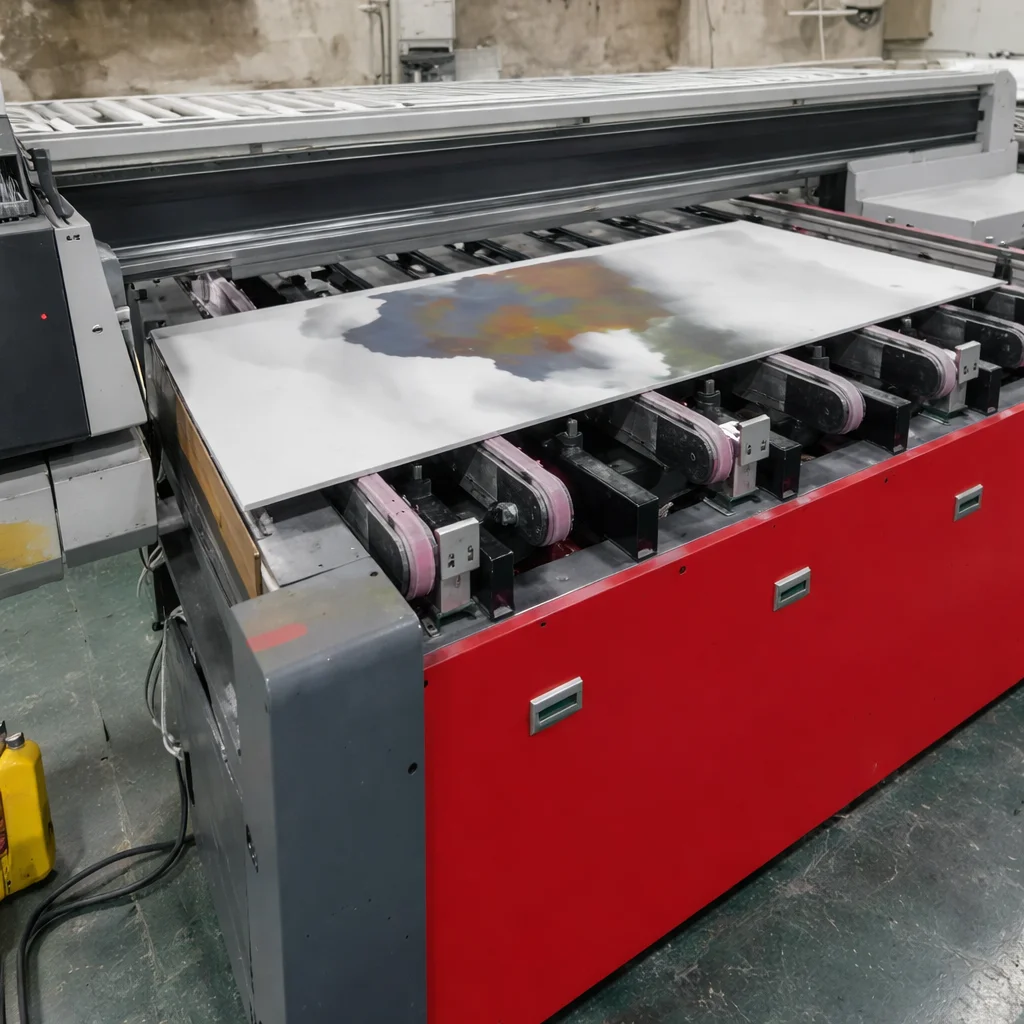

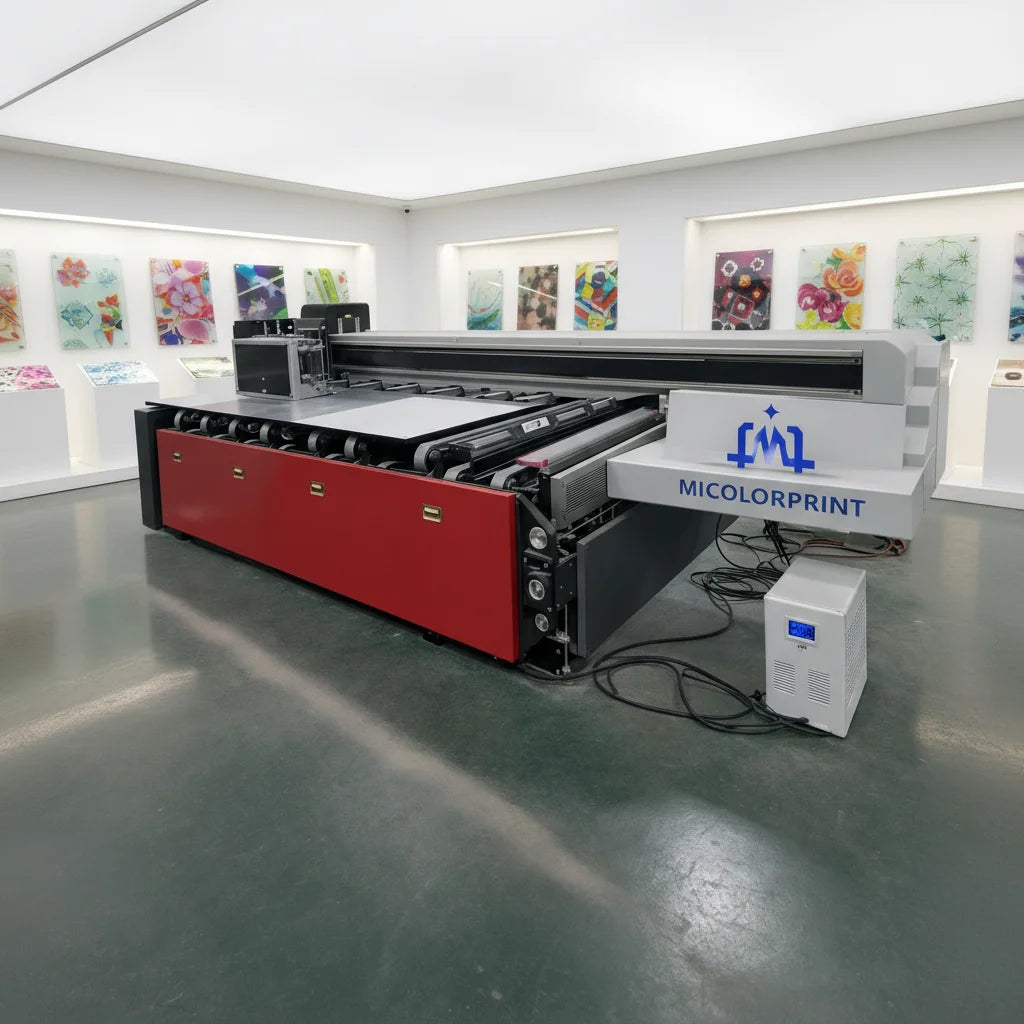

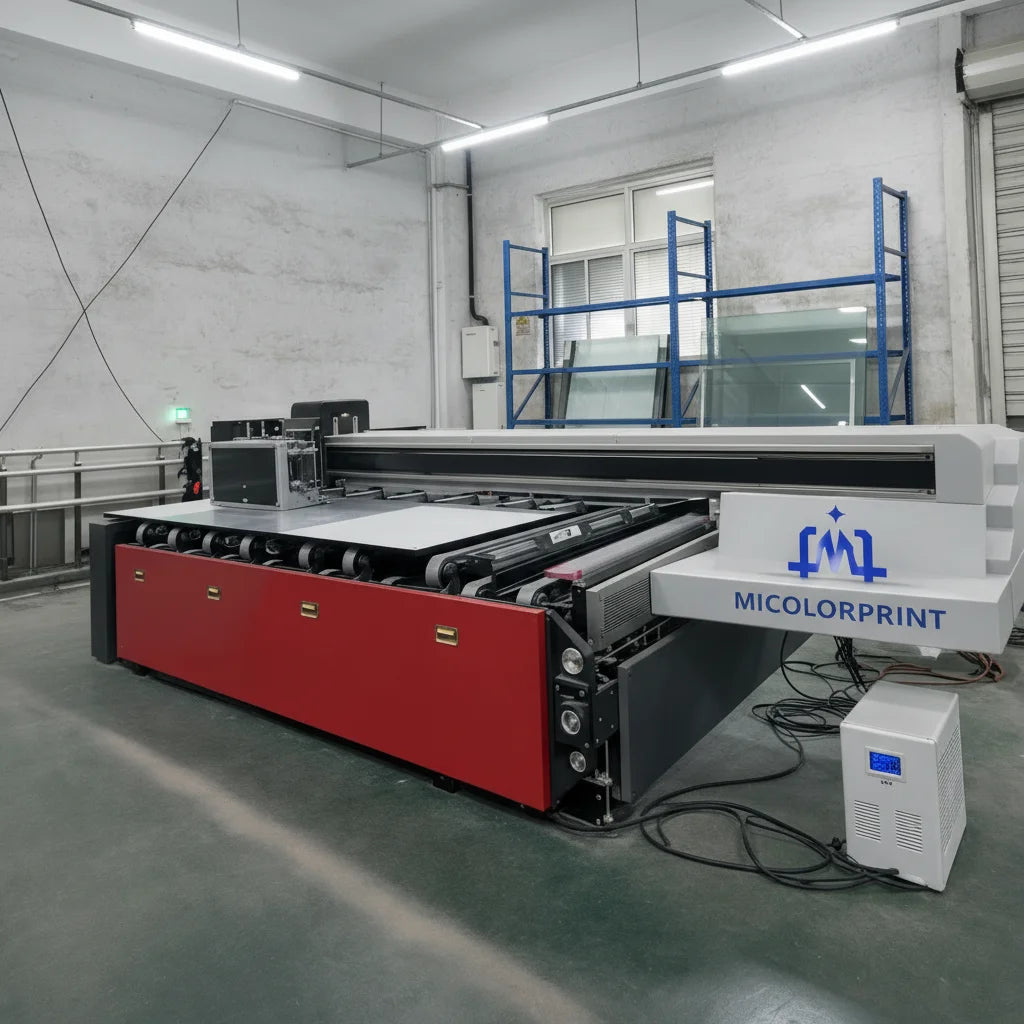

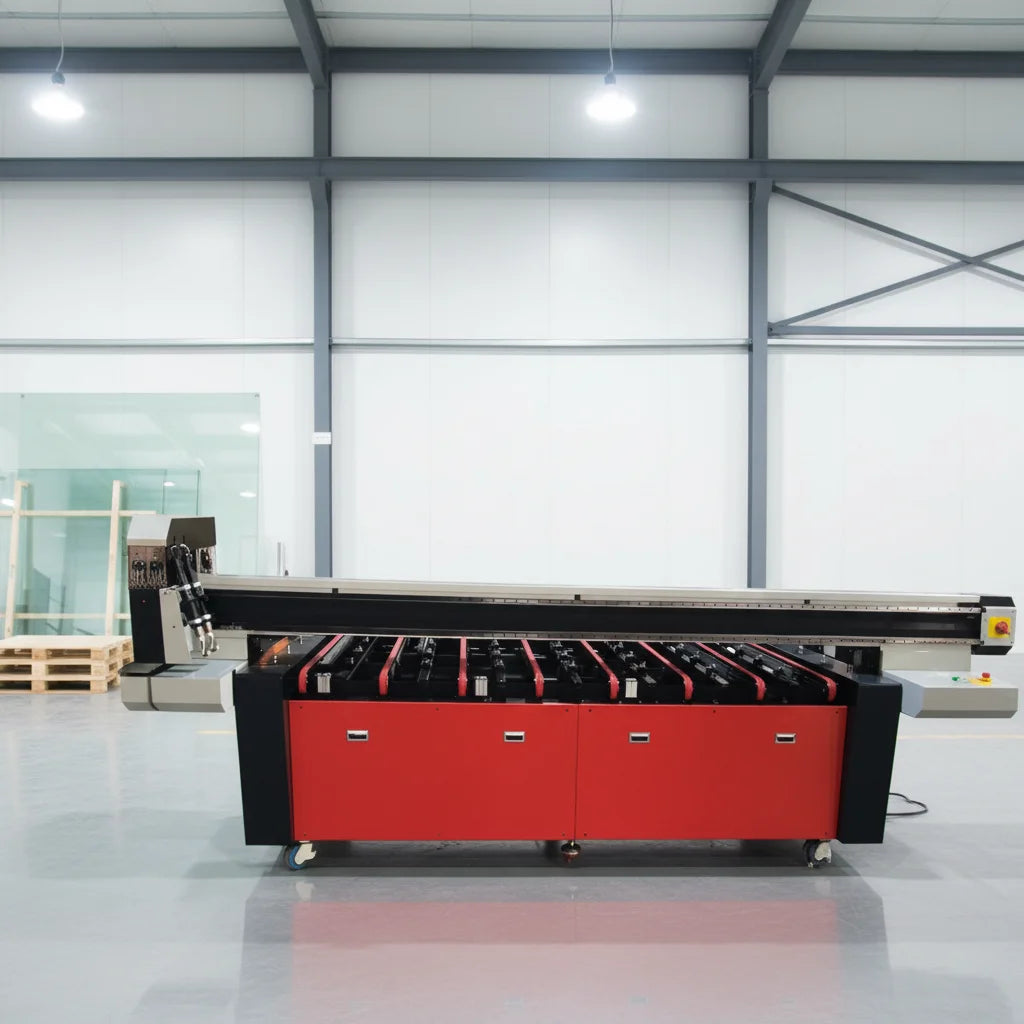

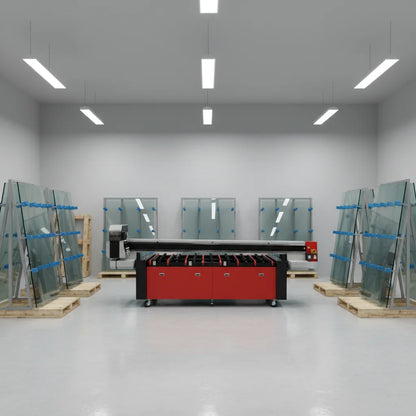

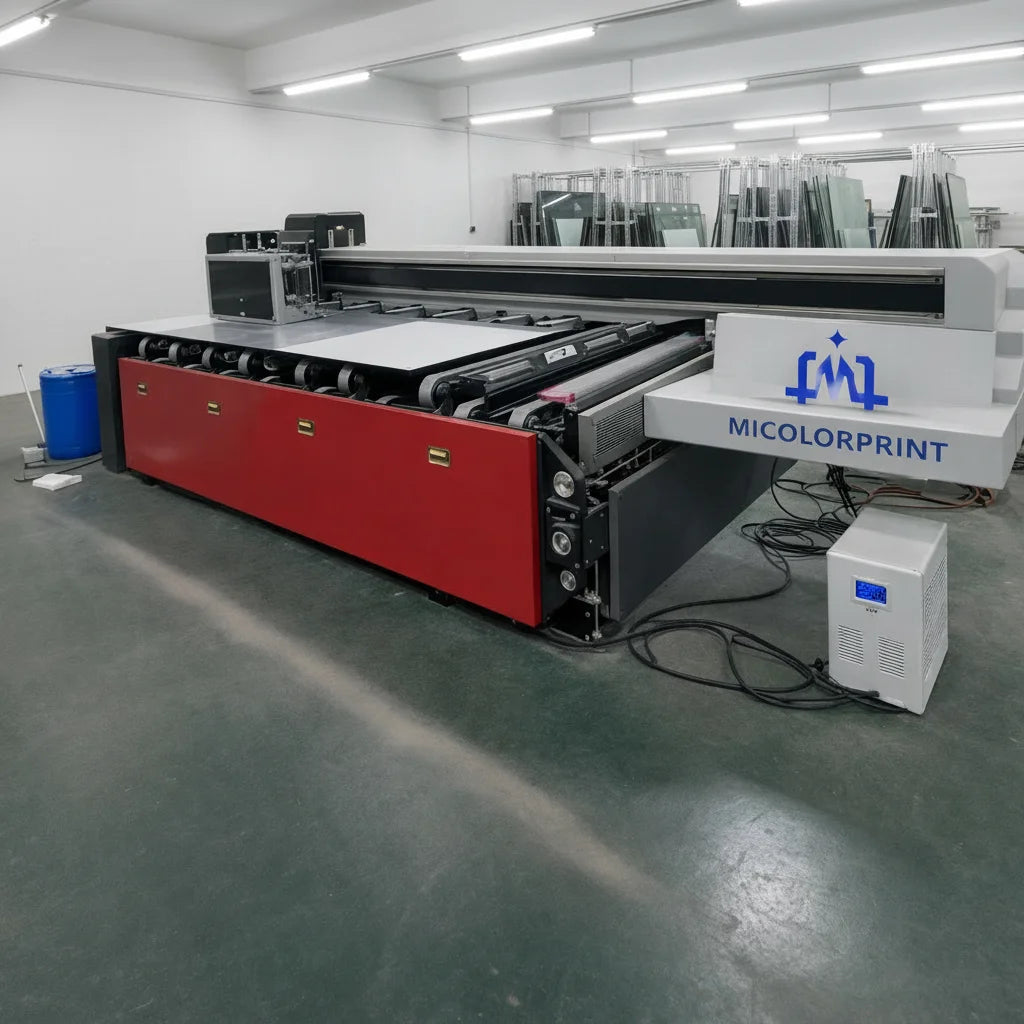

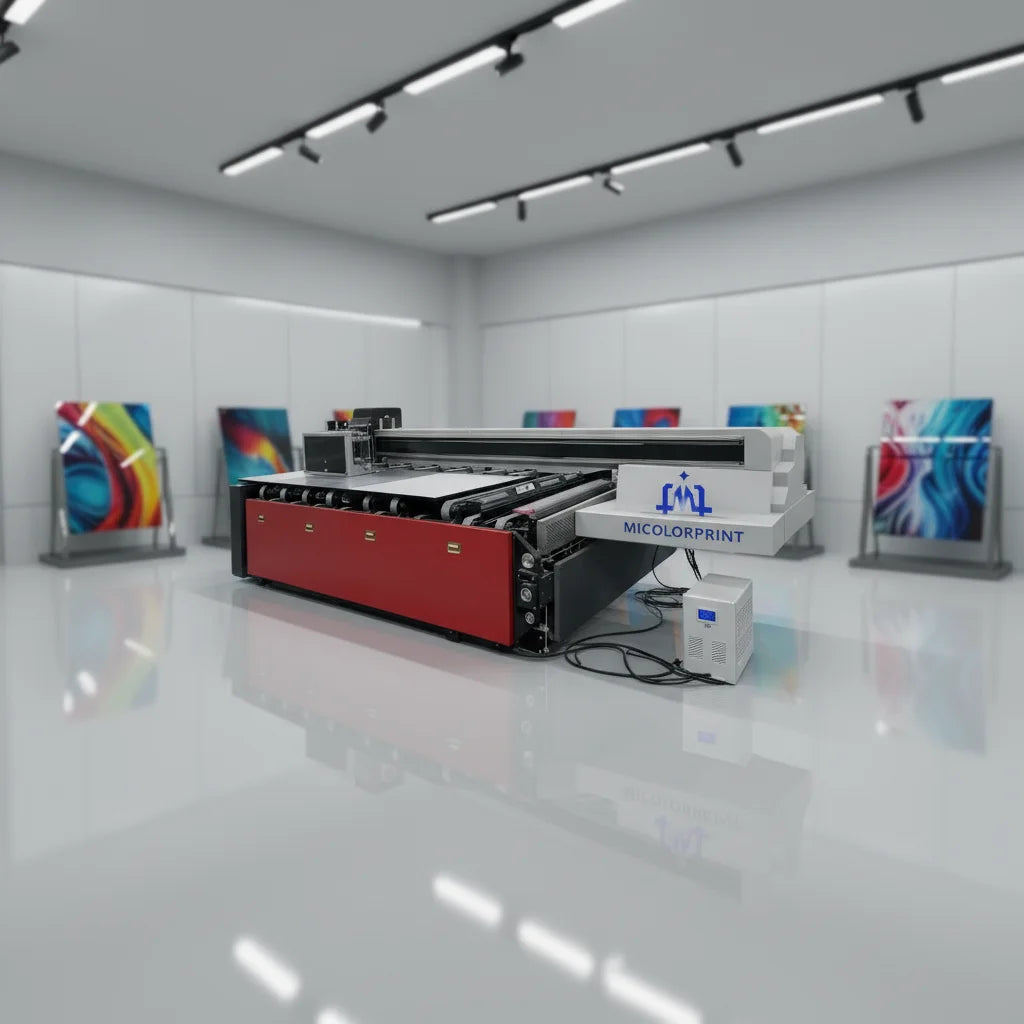

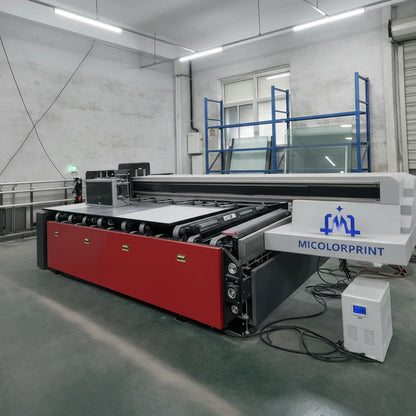

Micolorprint High-Temperature Hyperthermia UV Inkjet Printer for Glass/Ceramic for Background Wall
Micolorprint High-Temperature Hyperthermia UV Inkjet Printer for Glass/Ceramic for Background Wall
Couldn't load pickup availability
SPECIFICATIONS
Application: Glass/Ceramic
Color & Page: Multicolor
Control Type: Push Button
Electricity requirements: AC220/110±10,50HZ~60HZ,P 100W
Interface method: High speed USB transmission interface
Number of head: 3-9 head
Operating platform: MicrosoftWindows98/Me /2000 /XP/Win7/win10
Plate Type: Flatbed Printer
Print Media: Glass/Ceramic
Print Speed: Up To 10 ppm,7 ppm,10 ppm,15 ppm,19 ppm,20 ppm
Print head: Ricoh/Starshine,Ricoh/Starshine
Print height: 1-100mm (custom height available)
Print size: 2000mm*3000mm
Print speed: 10-40㎡/H
Printing Material: Glass/Ceramic
Product name: High-temperature Glass/Ceramic Priner
Type: Inkjet Printer
Voltage: 220v/110v
automatic grade: Automatic
brand name: Micolorprint
condition: New
dimensions(l*w*h): 5440*4800*1500mm
ink type: Hyperthermia ink UV
place of origin: Guangdong, China
warranty: 1 Years
weight: 3000
Specifications
| Item | Specification |
|---|---|
| Model | MC-High Temperature Printer |
| Machine Size | Height 1540 mm × Length 5520 mm × Width 2850 mm |
| Print Size | 3000 mm × 2000 mm |
| Max Load Weight | 500 kg (no-loss precision load) |
| Ink Supply System | 5 colors + 1 white, continuous intelligent ink circulation system |
| Operating System | Windows 7 |
| Optional Printheads | Configurable with 3 or 6 heads |
| Interface | Gigabit Ethernet |

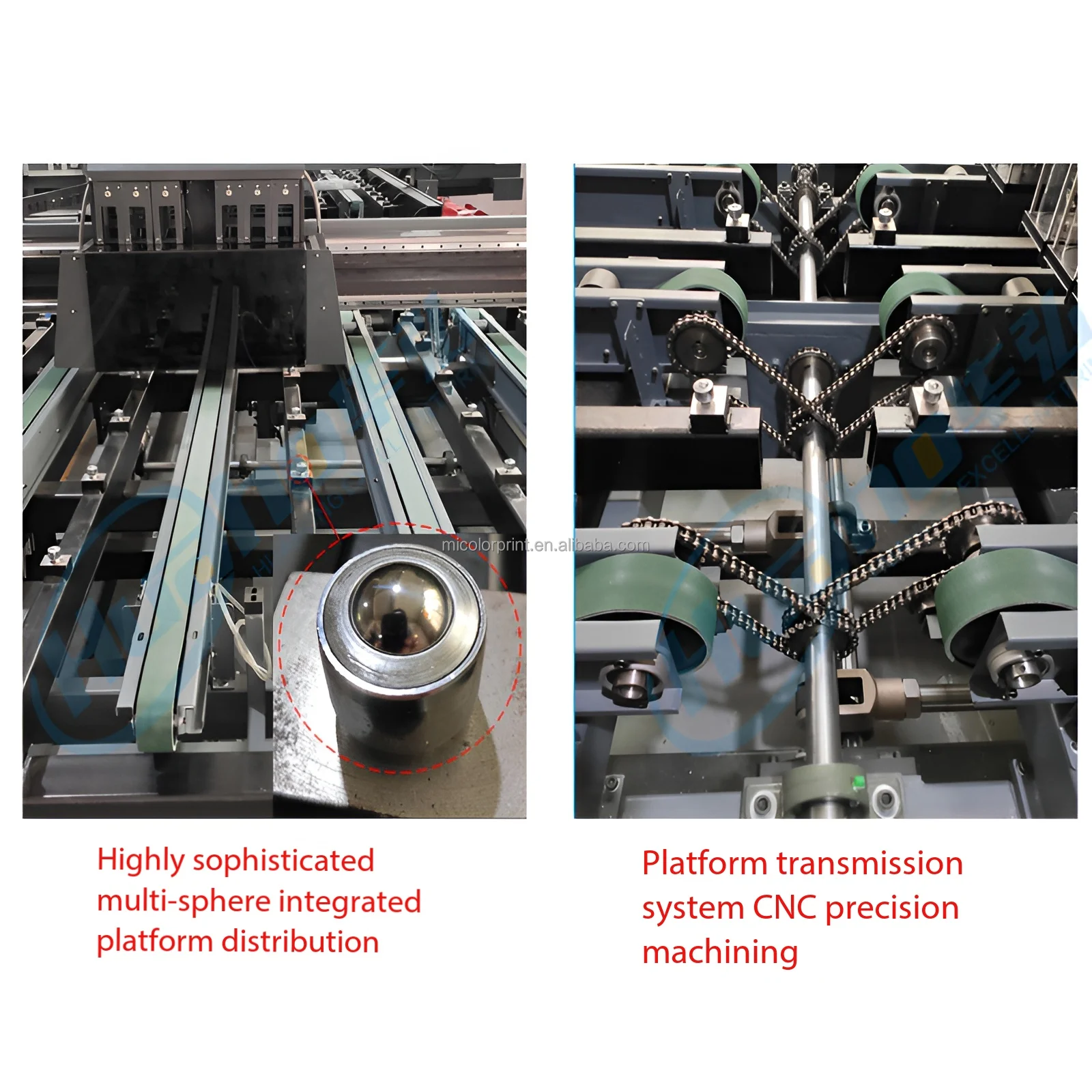

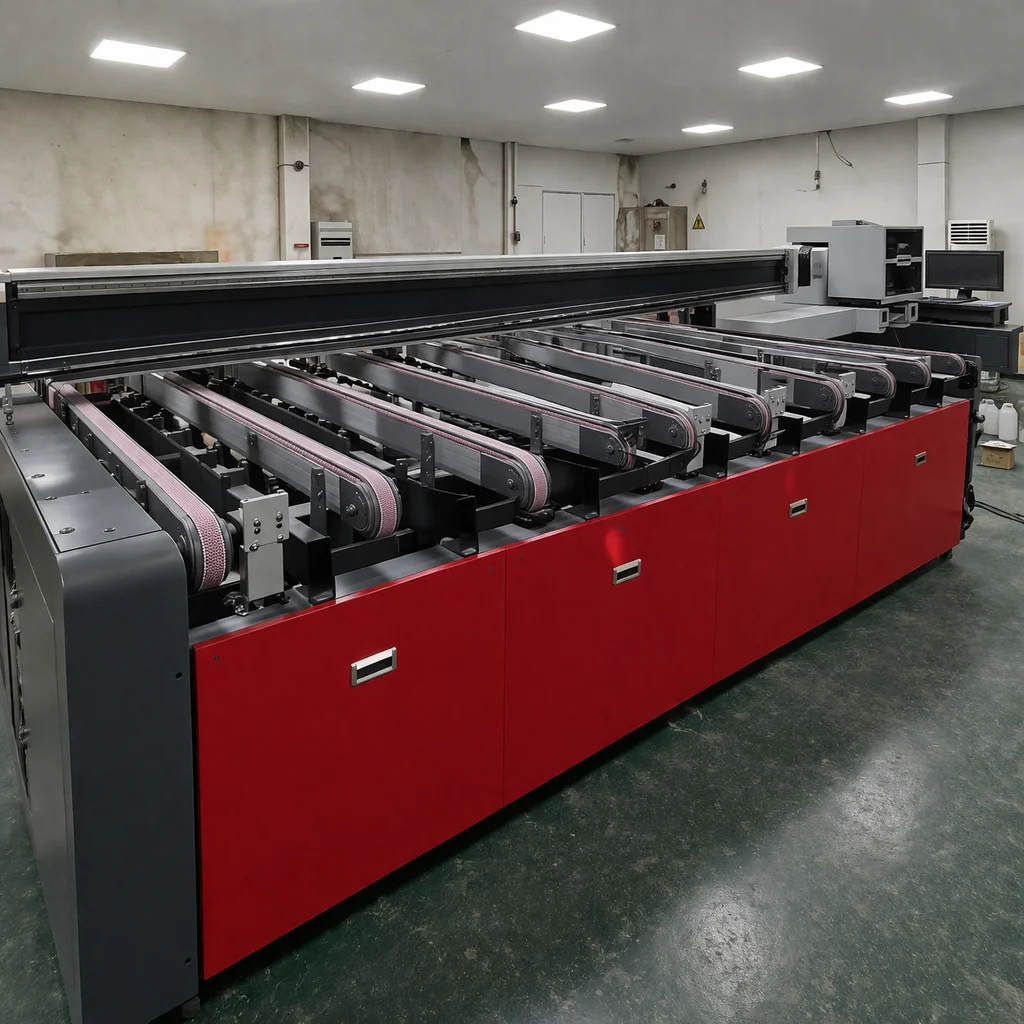

| Transmission System | Ultra-wide synchronous belt / precision arc rack & pinion / high-speed feed bearings |
| Media Thickness | 100 mm (customizable) |
| Lifting System | Platform lifting |
| Supported File Formats | TIFF (RGB & CMYK), BMP, PDF, EPS, JPEG, etc. |
| Printhead Option | Optional high-precision Ricoh G5 printhead (for high-viscosity inks) |
| Printing Platform | High-precision universal ball distribution platform |
| Working Environment | Temperature: 15°C–35°C; Humidity: 20%–80% |
| Ink Supply Structure | Independent single-color modular ink system |
| Power Supply | AC 220–240V, 50Hz, Rated power 3000W |
Printing Speed
| Mode | Speed |
|---|---|
| High-speed Mode | 30 m²/hour |
| Standard Mode | 15 m²/hour |
| High-precision Mode | 10 m²/hour |
Additional Features
| Item | Description |
|---|---|
| Drive System | Y-axis dual magnetic levitation drive for higher stability and precision |
| Print Resolution | 2880 dpi / 1440 dpi / 720 dpi / 360 dpi |
