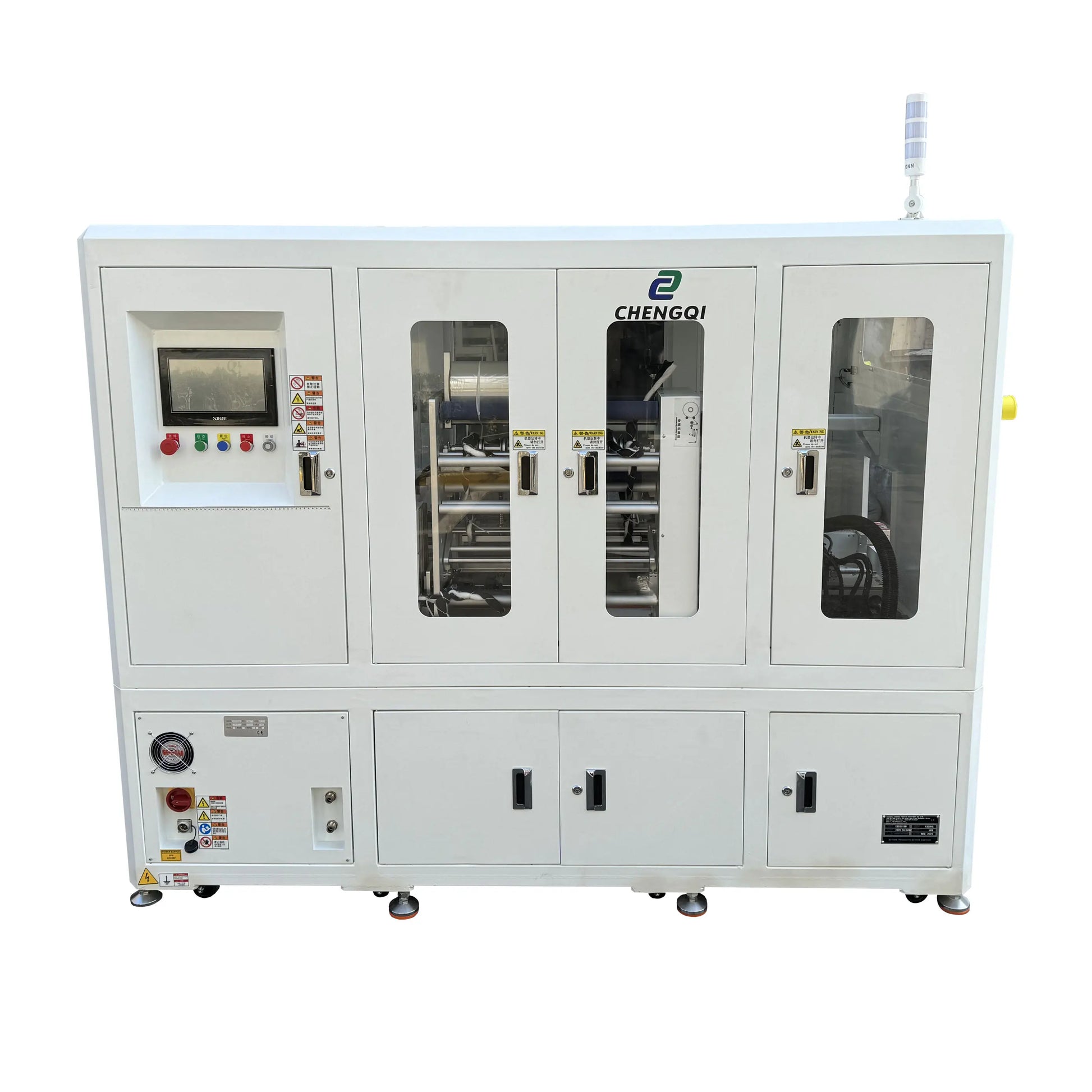

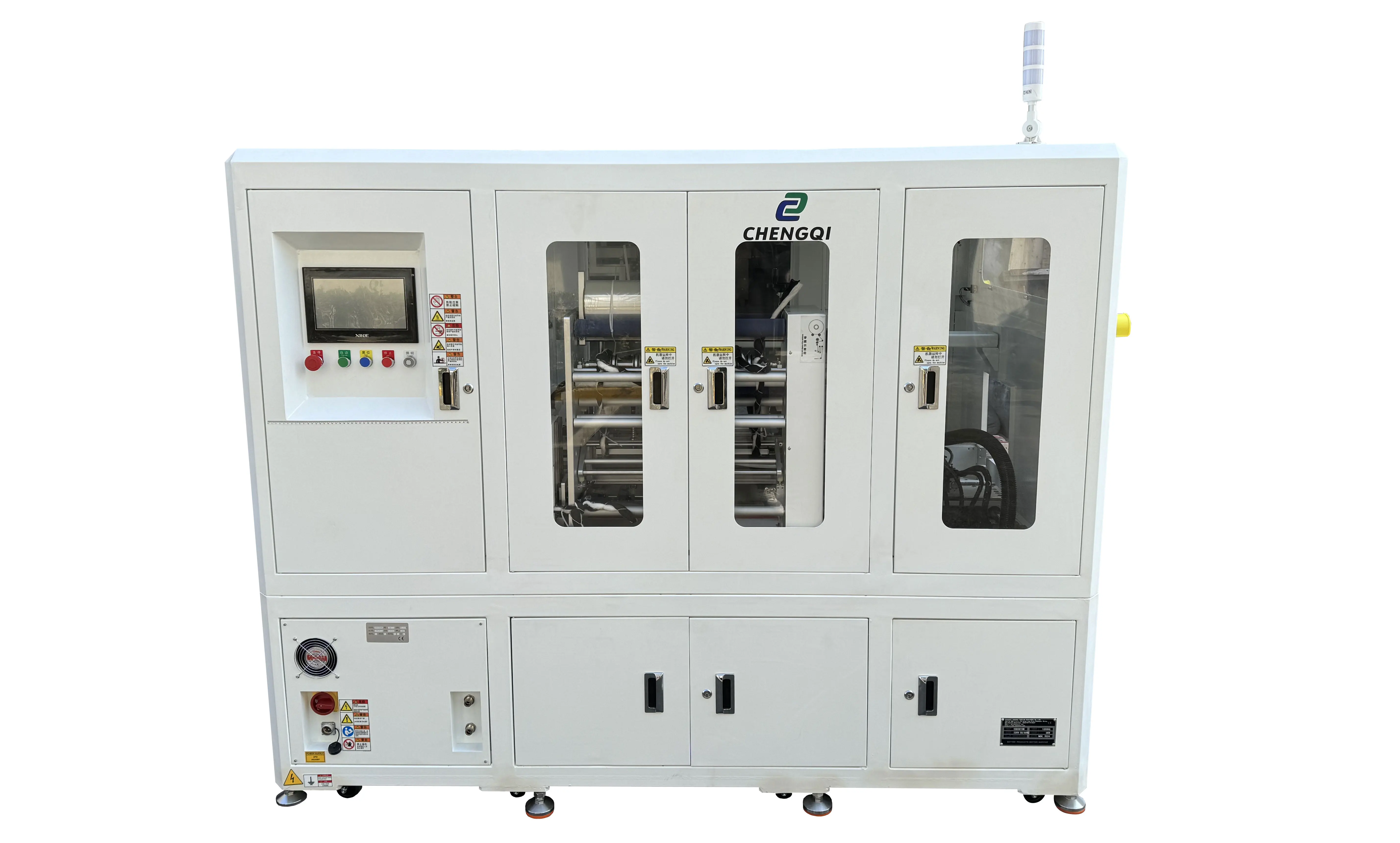

Mobile Phone Box Auto Shrink Packing Machine Shrink Wrapping Machine

$38,000.00

~~$38,000.00~~ $38,000.00

Sale Sold out

power 6KW+16KW

max speed 15pcs/min

model number ESD4520M+BS5030LW

SPECIFICATIONS

After-sales Service Provided: Online support,Video Technical Support,Free Spare Parts,Engineers available to service machinery overseas

Customize: Accept

Function: Sealing Cuttting Shrink

Item: FQL

Keyword: Mobile Phone Box Auto Shrink Packing Machine Shrink Wrapping Machine

Machine type: Fully automatic

Packing material: POF

Packing speed: 15~30pcs/min

Product name: Mobile Phone Box Auto Shrink Packing Machine Shrink Wrapping Machine

Voltage: 220/380V 50Hz/60Hz

Warranty: 12 Months

Weight (KG): 1200

application: APPAREL,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Textiles

automatic grade: Automatic

brand name: CHENGQI

core components: PLC,Motor

dimension(l*w*h): 2530*1420*1800+1900*1020*1260mm

driven type: Pneumatic

key selling points: Easy To Operate

machinery test report: Provided

packaging material: Plastic

packaging type: Film

place of origin: Shanghai, China

video outgoing-inspection: Provided

warranty: 1 Year

Product Description

Performance features

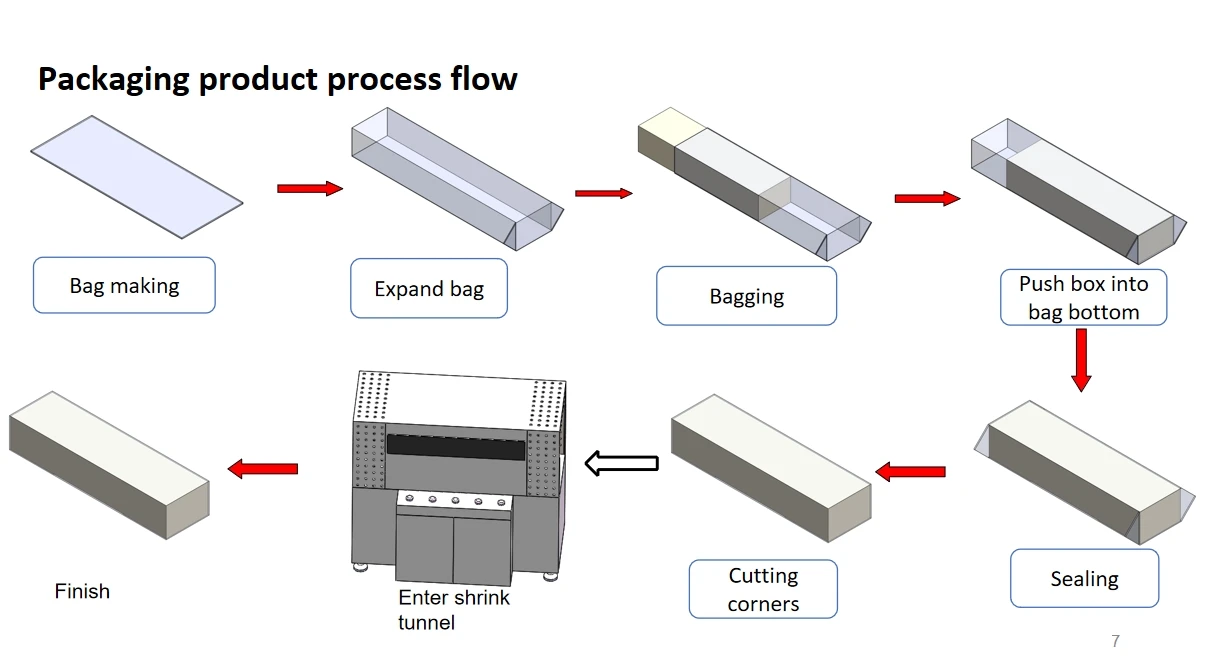

•Widely used in mass production packaging line with high efficiency. •Automatic make bags and put bag on products, seal and cut the bag corners.

•The sealing line can keep in the middle of the product and straight which very beautiful after heat shrink. •The entire machine realizes unmanned operation with the production line connecting. •Apply to digital industry, daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging.

Technical Parameter

Model	ESD4520M
Power supply	220V 1ph 50/60Hz
Power	6KW
Packing Size	(L)100~350mm, (W)65~250mm, (H)30~120mm, (W+H)＜350mm, (L+H)＜450mm,
Table height	Feeding 780+20mm, diacharge 850+20mm
Packaging speed	400-800pcs/hour（Determined by product size）
Air source	0.5 MPa～0.7MPa
Shrink film	POF
Shrink film size	(W)≤510mm, (D)≤260mm
Sealing form	L type full closed
Overall dimension	L2535W1390H1795mm
Weight	1200KG

Model	BS5030LW
Power supply	380V 3ph 50/60 Hz
Power	16KW
Table height	800mm
Conveyor load	30KG
Conveyor speed	1-15m/min
Tunnel size(L×W×H)	1500×500×300mm
Overall dimension(L×W×H)	1800×1100×1250mm
Weight	300Kg

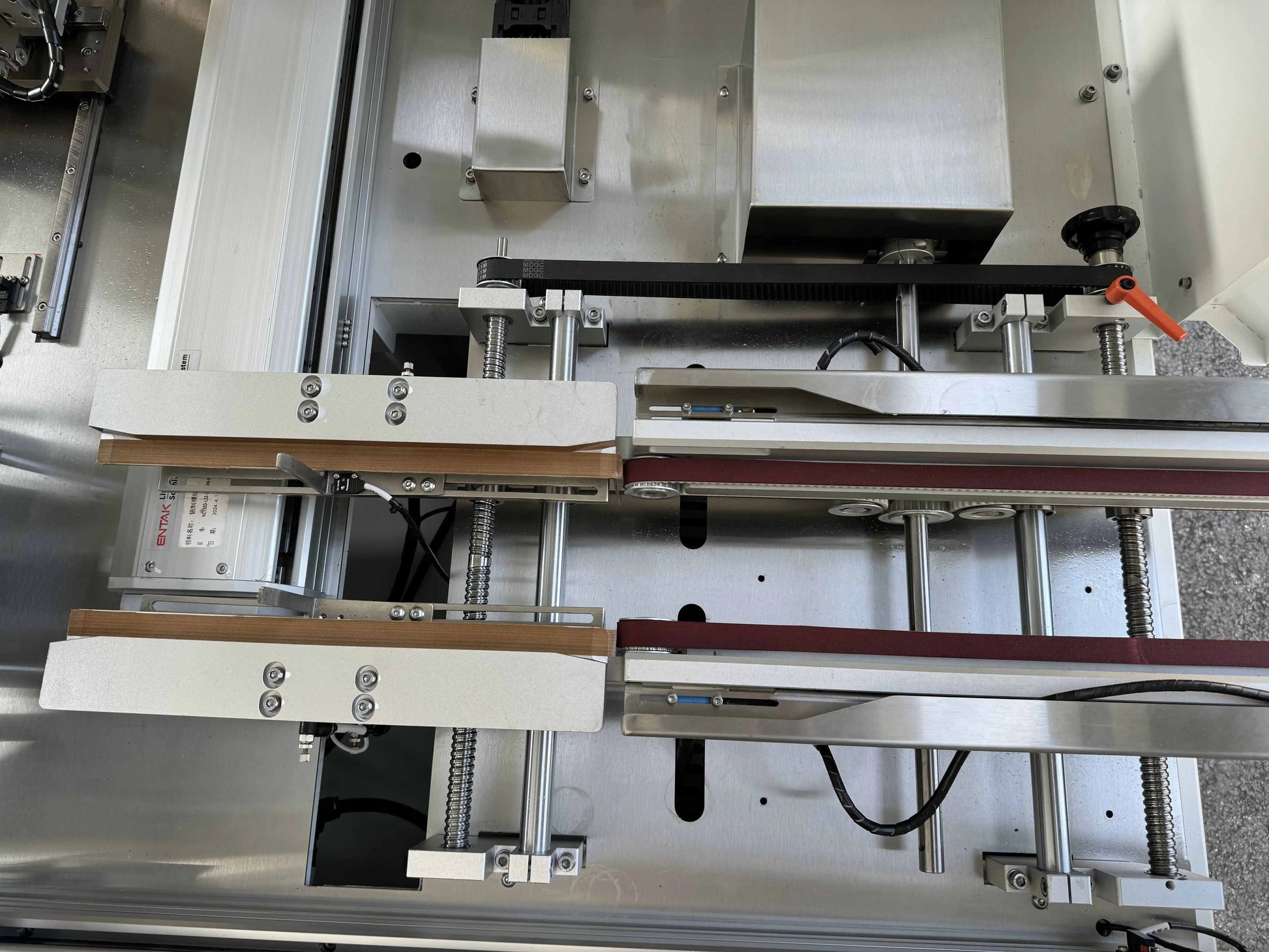

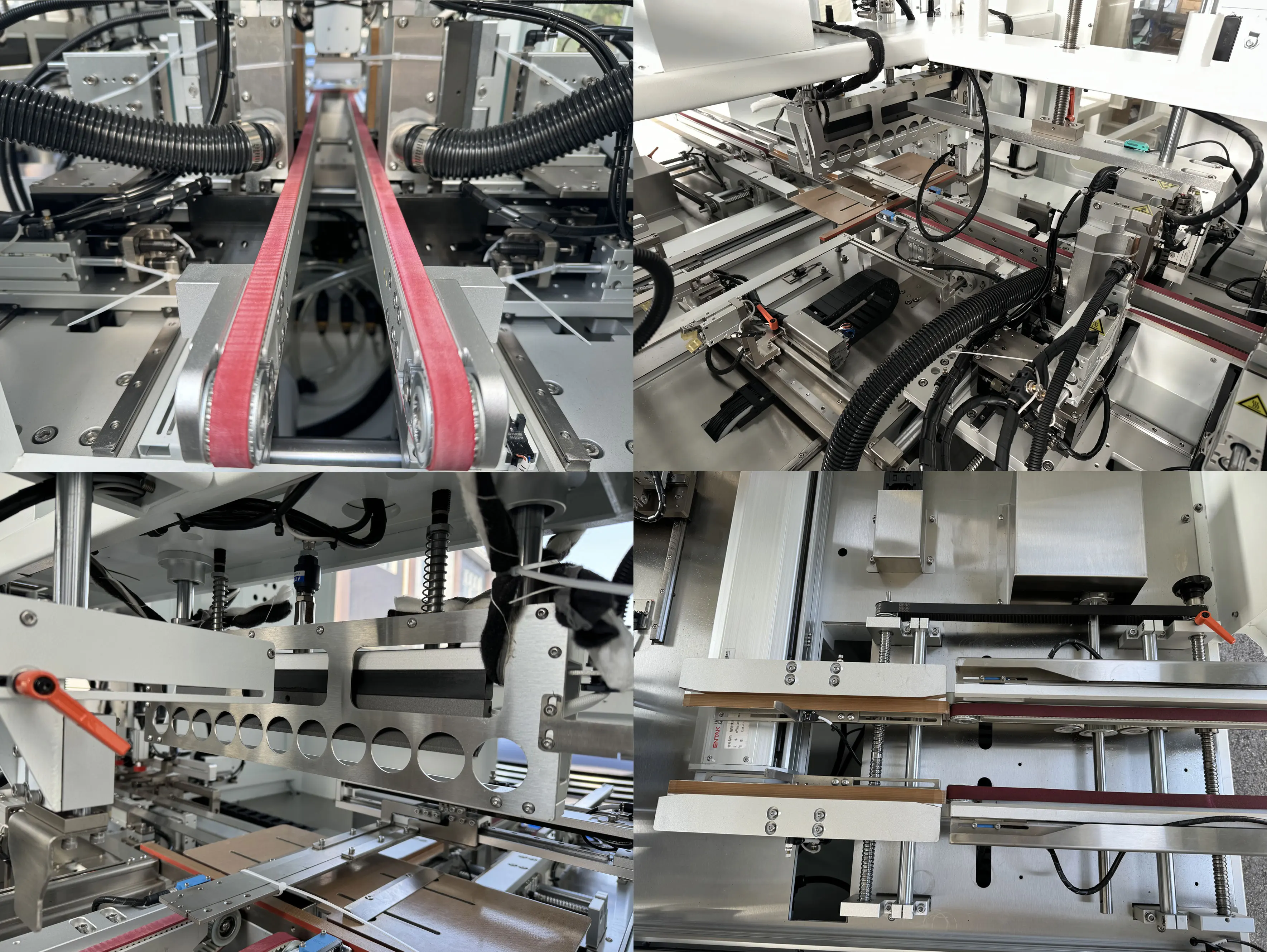

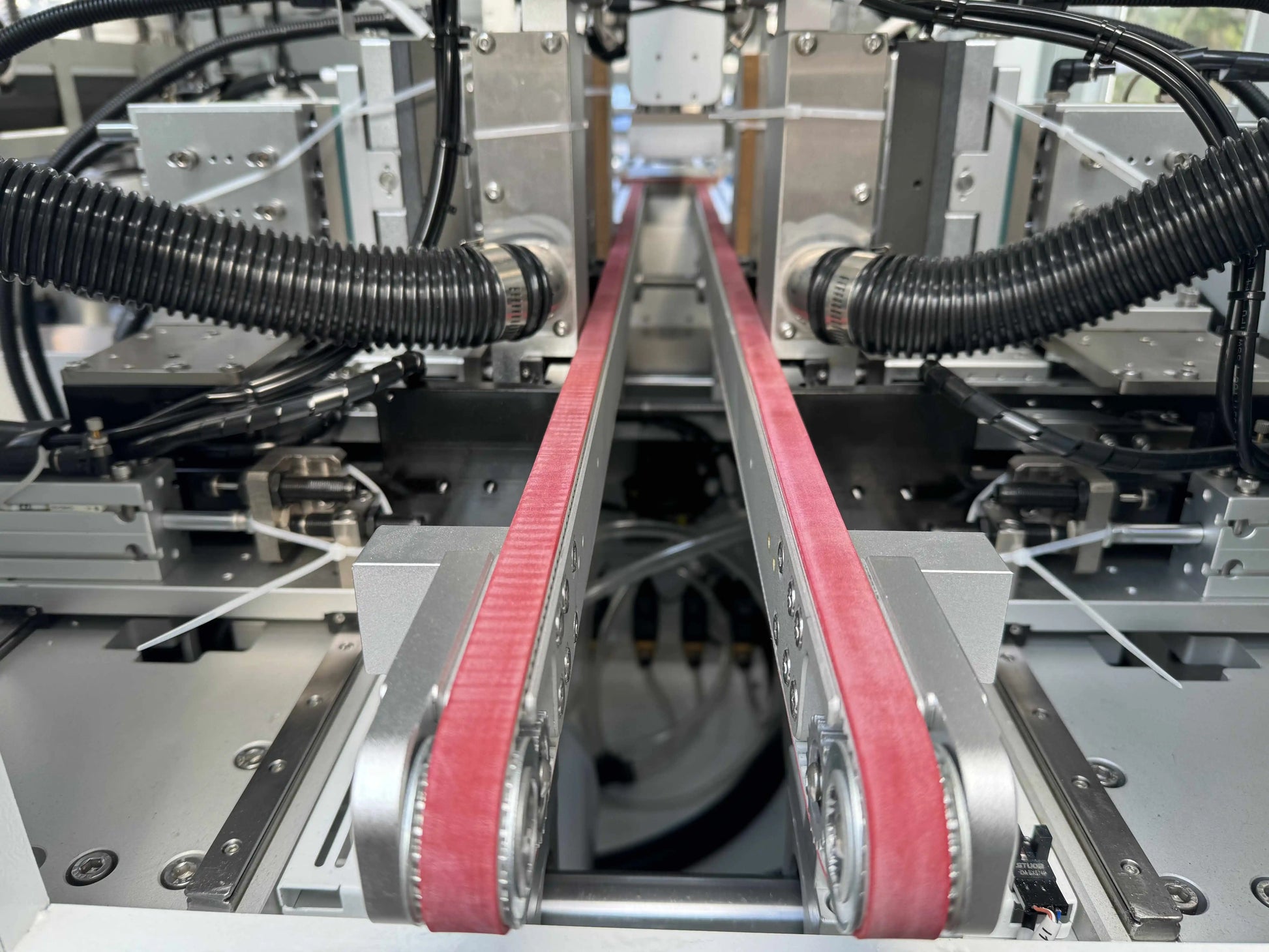

Detailed Images

Application Range

Apply to digital industry, daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging.

Our Company

Packing & Delivery

Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock

Our Service

1. We can customize machine according to your requirements and your products.

2. One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.

FAQ

Q1: How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.

Q2: What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send me your product size (L*W*H) with weight then we can quote exactly what you need.

Q3: More questions or information please feel free to contact us at any time!
