SPECIFICATIONS

Anilox roller: Ceramic Anilox Roller

Control Type: Android

Doctor blade: Doctor Blade

Maximum printing width: 830mm

Maximum web width: 850mm

Number of Colors: 4-Color

Plate Thickness: 1.7mm

Printing color: 4 Colors

Printing size: 175-370mm

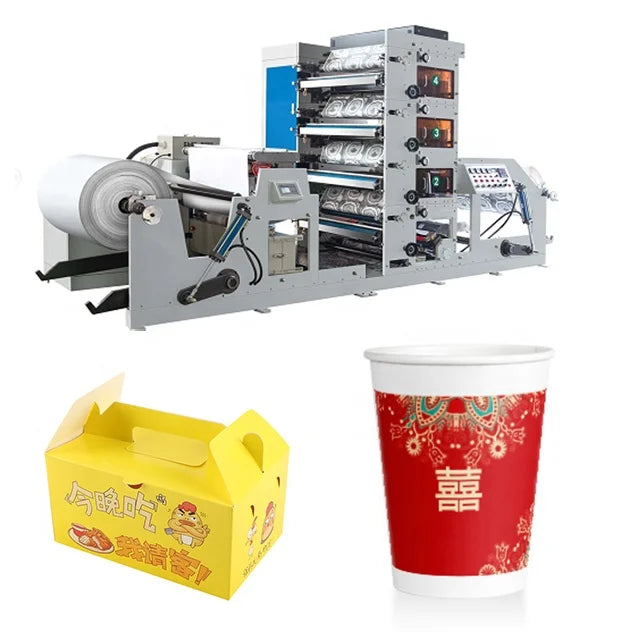

Product name: 4 colors flexo printing machine

Tension Controller: Auto Tension Contral

Type: Flexographic Printer

automatic grade: Automatic

brand name: HENGHAO

color & page: Multicolor

condition: New

dimensions(l*w*h): 4600mm*1900mm*2200mm

place of origin: Zhejiang, China

plate type: FLEXO

print speed: 60-80m/min

structure: Stack

usage: Paper Printer,Label Printer,Card Printer,Bill Printer,Plastic Bag

voltage: 380V/220V

warranty: 1 Year

weight: 3500

FEATURE

1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and long using life, etc. It can improve the printing efficiency. 2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type. 3. Printing unit of the flexo printing machine adopt 360º to regulate for registration. 4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional. 5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried. 6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion. 7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material. 8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label,paper cup, aluminum foil, plastic film, etc.

PRODUCT SPECIFICATIONS

Machine model	HH-RY850-4C	HH-RY950-4C	HH-RY1000-4C
Machine color quantities	4 colors
Printing speed	55-60m/min
Maximum web width	860mm	950mm	1010mm
Maximum printing width	850mm	940mm	1000mm
maximum unwinding diameter	1300mm
printing size	175-380mm
Total power	about 45kw	45kw	50kw
Registering precision	±0.10mm
Total air pressure	0.6-0.8MP
Voltage	380V±10%
Machine weight	4500KG	5000KG	5500KG
Machine dimension	4800*2050*2250mm	4800X2150X2250mm	4800X2200X2250mm

PRODUCT CONFIGURATION

IR dryer

1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven. 2).Infrared Heating Drying Oven is placed on material and after each printing station.

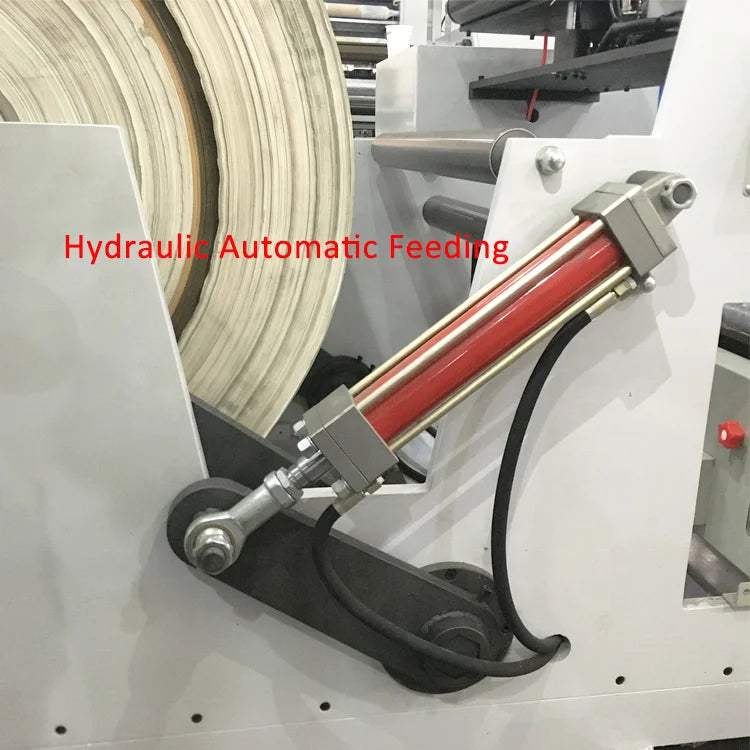

hydraulic lifting system for unwinding and rewinding

Whatever raw material weight is heavy or light, it doesnt need labor to move to unwinding/rewinding location, it can automatically load to unwinding location or unload on the ground.

web guide

can control material go straightly,then output final product with good edge.

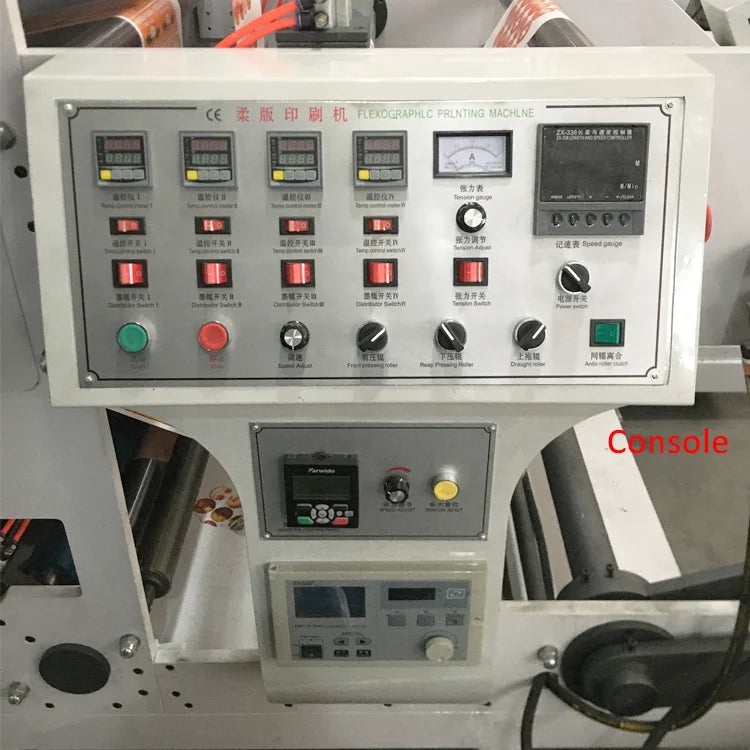

control panel

1).Power Supply, Stop Button, Start Button and Emergency Stop. 2).Temperature Controller for each Heating Oven. 3).Anilox Roller Rotation Button for each Printing Station. Length Counter and Speed Controller 4)bottom roller tension control

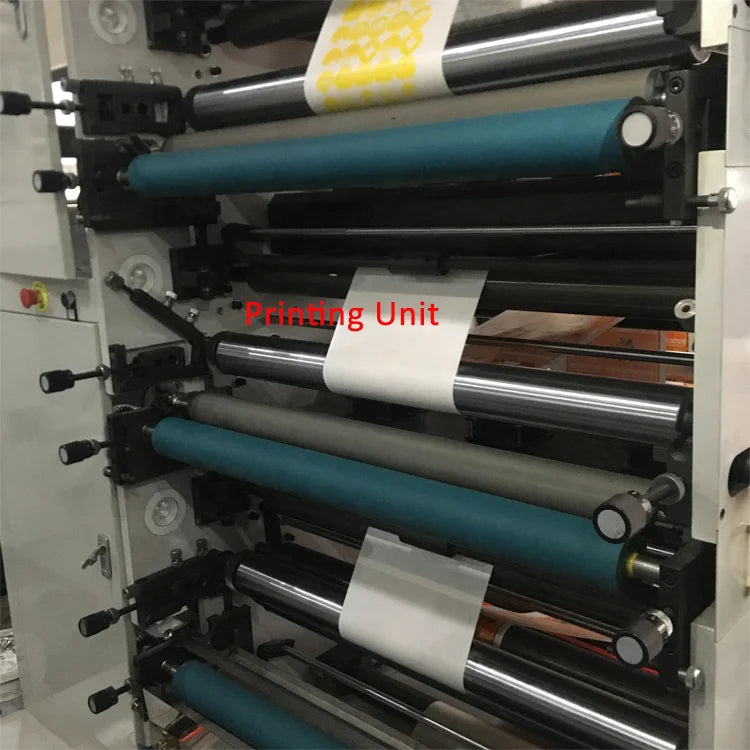

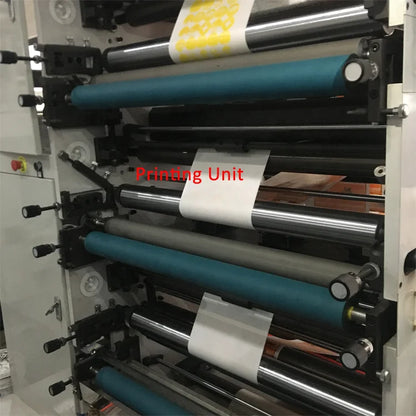

printing unit

Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Containe,depend roller, with Helical Gear

Automatic constant tension control

tension is control pulling material tight or loose.machine come with one Set Auto Constant Tension Controller For Unwind.
