SPECIFICATIONS
Application: SIP IP PBX PABX
Brand Name: KNTECH
Call Control: sip
Caller ID detection: ETSI-FSK, ETSI-DTMF
Color: Black
Dimensions: 430*246.7*44mm
Material: Metal body
Media encryption: SRTP, TLS, HTTPS, SSH
Model Number: KNTD-300
NAT router: Support (user configuration)
Place of Origin: Guangdong, China
Plug Type: Us Plug
Product Name: IP PBX
Register user: 300
Reset switch: Support, Web configuration
Type: Server
VoIP Telephone System SIP Phone Server IP PBX
UC features for up to 50 users
The KNTD-300 IP PBX appliance is designed to bring leading edge voice, video, data, and ability features to enterprises, small and medium businesses, retail and residential environments in an easy-to-manage fashion. This enterprise-grade on premise IP PBX supports E1, T1 and J1 networks and offers scalability by supporting up to 100 users. This secure and reliable IP PBX delivers unifed communication features at an unprecedented price point it hout any licensing fees, costs-per-feature, or recurring fees.Select ippbx telephone system, you do not need to deploy the phone line, can quickly multicast, system high security attack,intelligent office communication.
IP PBX Server Specification:
Model |
KNTD-300 IPPBX Enterprise - class unified communication system |
||||
Network Interface |
Using dual Gigabit interface (10/100 / 1000M Ethernet adaptive) and integrated POE (IEEE 802.3at-2009) The third Gigabit port for the hot backup cluster |
||||
Hardware interface |
|||||
Network Interface |
Using dual Gigabit interface (10/100 / 1000M Ethernet adaptive) and integrated POE (IEEE 802.3at-2009) The third Gigabit port for the hot backup cluster |
||||
NAT router |
Support (user configuration) |
||||
Reset switch |
Support, Web configuration |
||||
Audio / video capability |
|||||
Speech algorithm |
Support fax tone detection and automatic switching G.711, 7.29, 7.23, 7.26 encoding |
||||
Voice |
G.711 A-law / U-law, G.722, G.723.1, G.726, G.729A / B, AAL2-G.726-32 |
||||
Video coding |
H.264, H.263, H263 + |
||||
QoS |
Layer 3 QoS, Layer 2 QoS |
||||
Signaling protocol |
|||||
DTMF detection method |
Support three, In Audio, RFC2833, SIP INFO |
||||
Digital signal |
PRI, SS7, MFC / R2 |
||||
Terminal management and automatic deployment capabilities |
Support for SIP terminal plug-and-play auto-deployment (including DHCP Option 66 / multicast SIP SUBSCRIBE / MDNS Automatic detection and configuration), support TFTP / HTTP / HTTPS upgrade, local upgrade |
||||
Network protocol |
TCP / UDP / IP, RTP / RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP / HTTPS, SIP (RFC3261), STUN, SRTP, TLS / SIP, LDAP |
||||
PSTN disconnection method |
Support the PSTN line intelligent detection and automatic matching function, support five kinds of signaling detection methods (1, Busy Tone detection, 2, CPT detection, 3, polarity reversal detection, 4, Hook Flash Timing detection, 5, Loop Current Disconnect detection ) |
||||
Safety |
|||||
Media encryption |
SRTP, TLS, HTTPS, SSH |
||||
Advanced defense |
Fail2ban, Alert events, whitelists, blacklists, encrypted access controls |
||||
Physical characteristics |
|||||
Global universal power supply |
Input: 100 ~ ~ 240VAC, 50 / 60Hz; |
||||
weight |
Equipment weight: 2.165 Kg; Package weight: 3.012 Kg |
||||
Use the environment |
Operating environment: 32 - 113ºF / 0 ~ 45ºC, humidity 10 - 90% (No condensation) Storage environment: 14 - 140ºF / - 10 ~ ~ 60ºC, humidity 10 - 90% (No condensation) |
||||
size |
440mm (L) x 185mm (W) x 44mm (H) IU standard |
||||
installation |
Desktop or cabinet installation |
||||
Additional features |
|||||
Multi-language support |
Web user interface supports English / Simplified Chinese, customizable IVR / voice prompts in English, Chinese, english English |
||||
Caller ID detection |
ETSI-FSK, ETSI-DTMF |
||||
Polarity reversal / Wink |
Support, option on / off control call setup and termination |
||||
Call Center |
Supports multiple call queues and queue queuing sounds |
||||
Customize Auto Attendant |
Supports Layer 3 IVR (Interactive Voice Response) |
||||
Concurrent call capability |
Up to 5,000 SIP terminals can be registered, up to 500 concurrent calls |
||||
Meeting room capacity |
Supports up to 10 voice conference rooms, up to 100 voice conference members |
||||
Call function |
Call Park, Call Forward, Call Forward, Do Not Disturb, DISA, ring Group, Pickup Group, blacklist, call / intercom, etc.
|
||||
Host Standby N+1 redundancy System design |
|||||

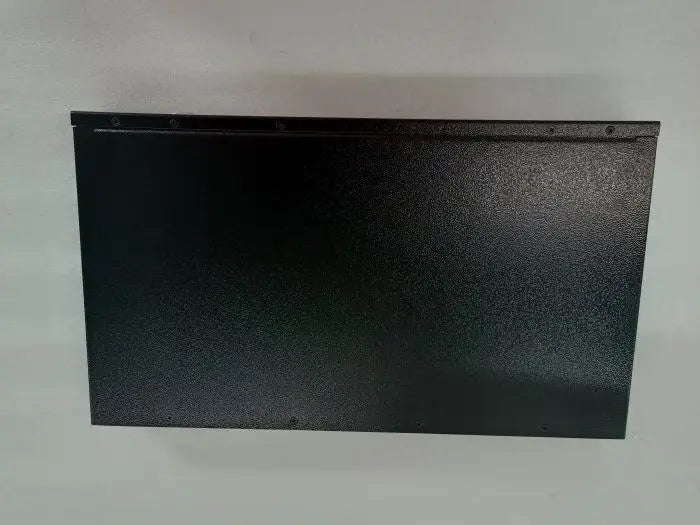

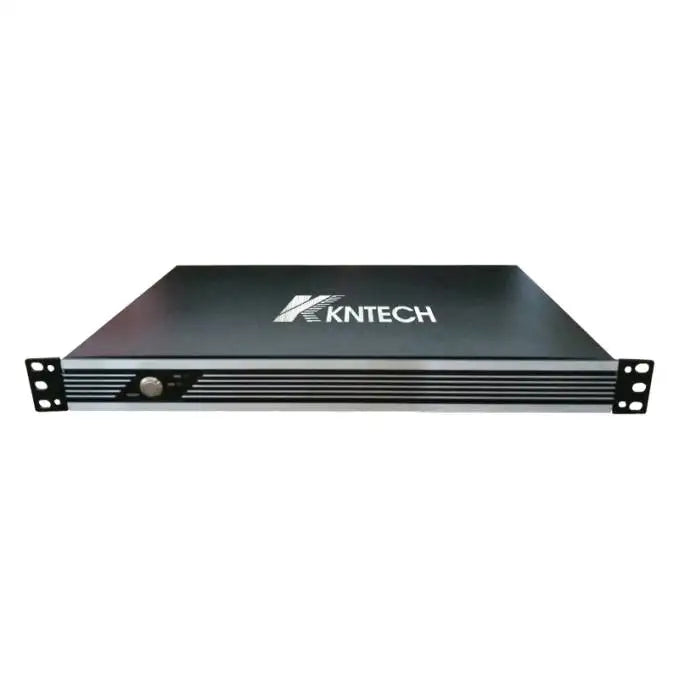

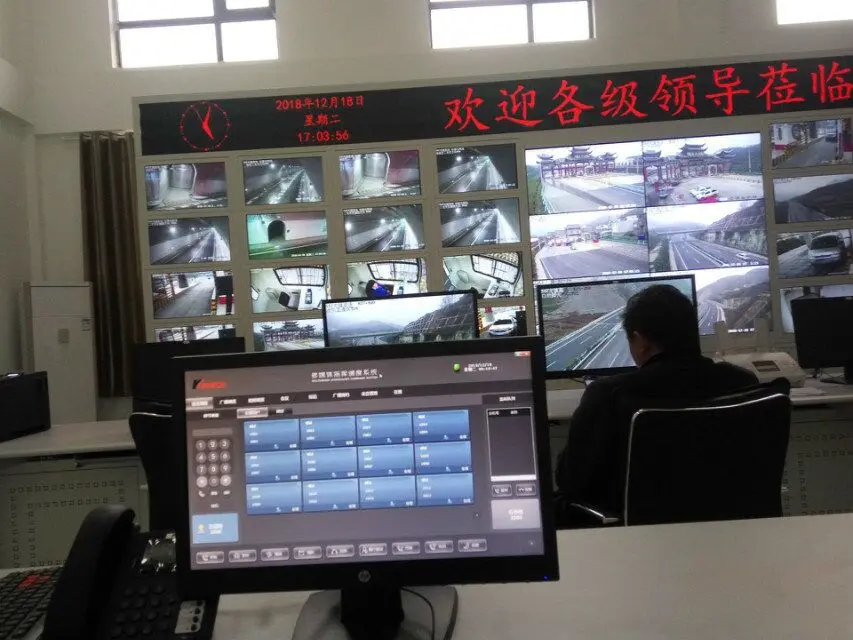

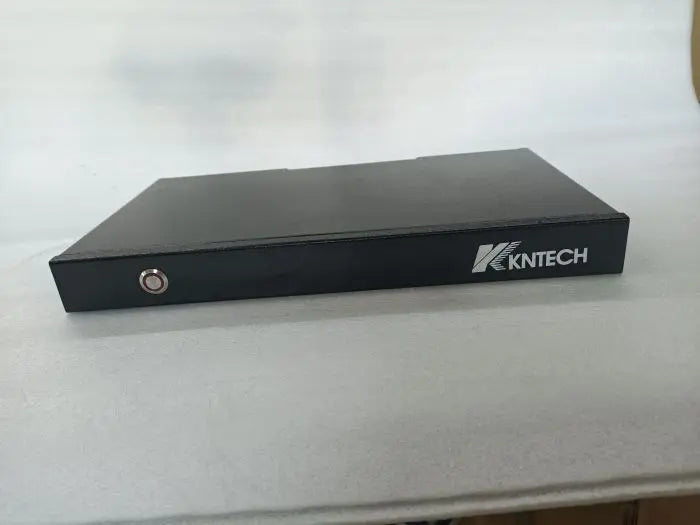

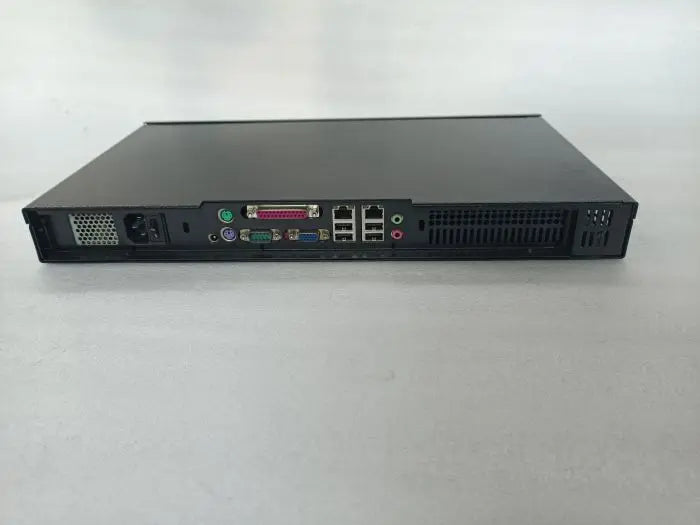

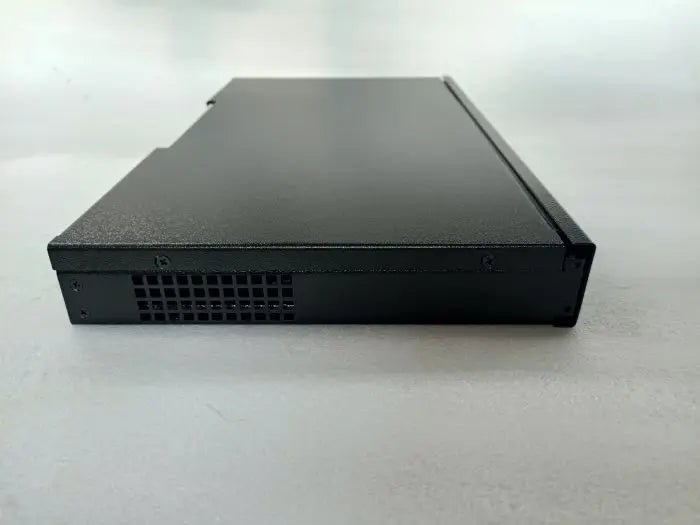

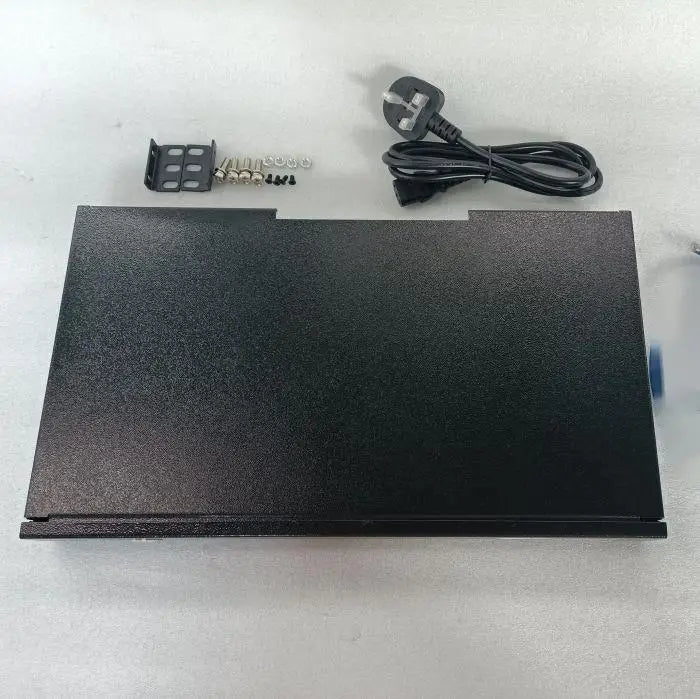

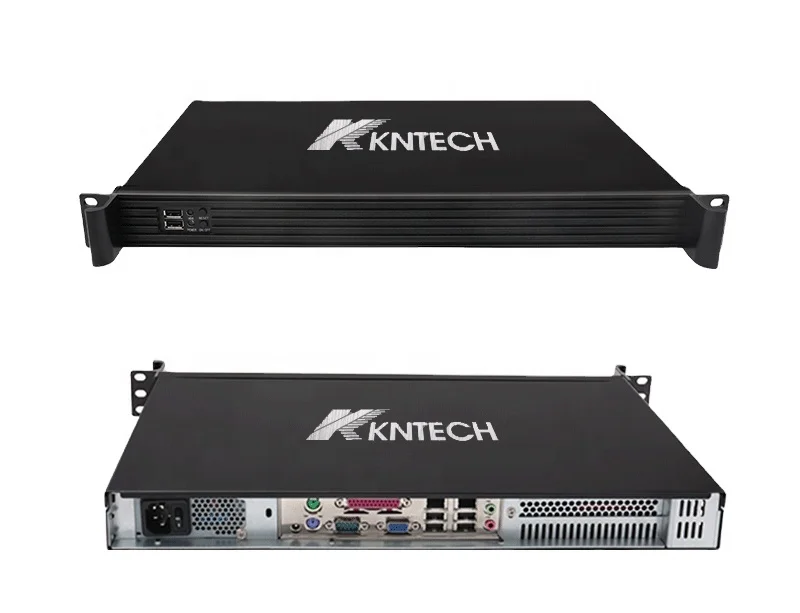

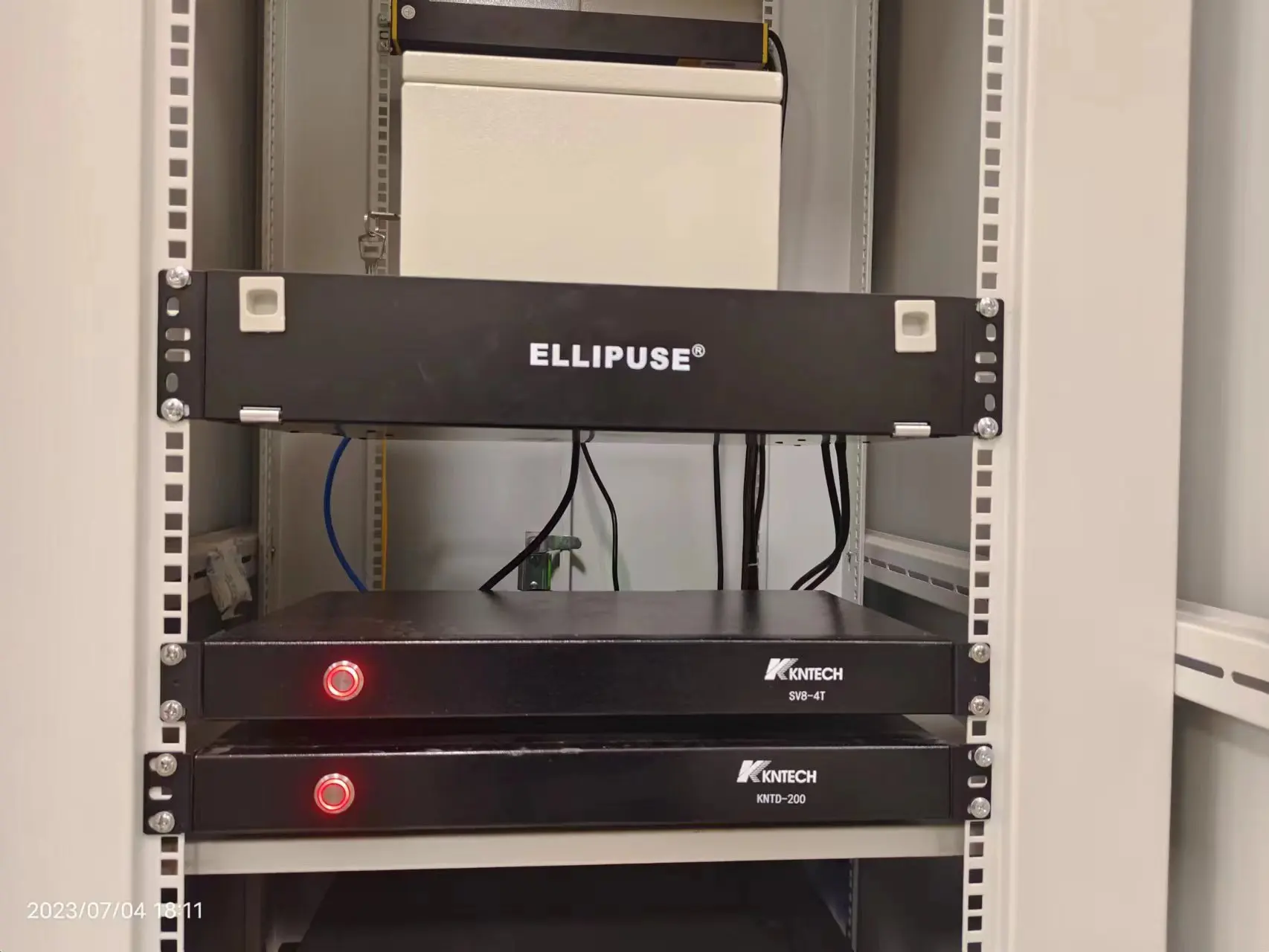

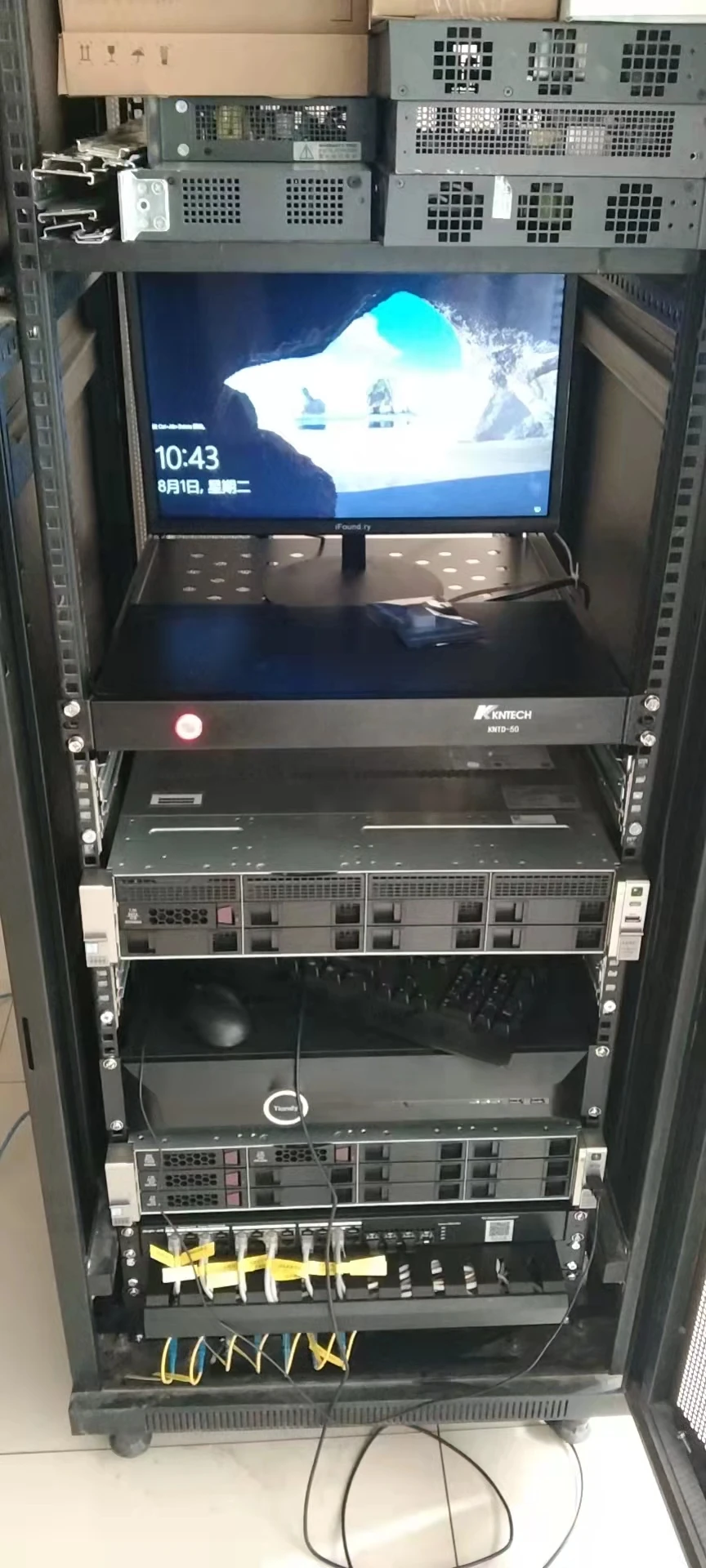

KNTECH IP PBX Telephone System IP PABX Server Dispatch Communication Center Photos Show:

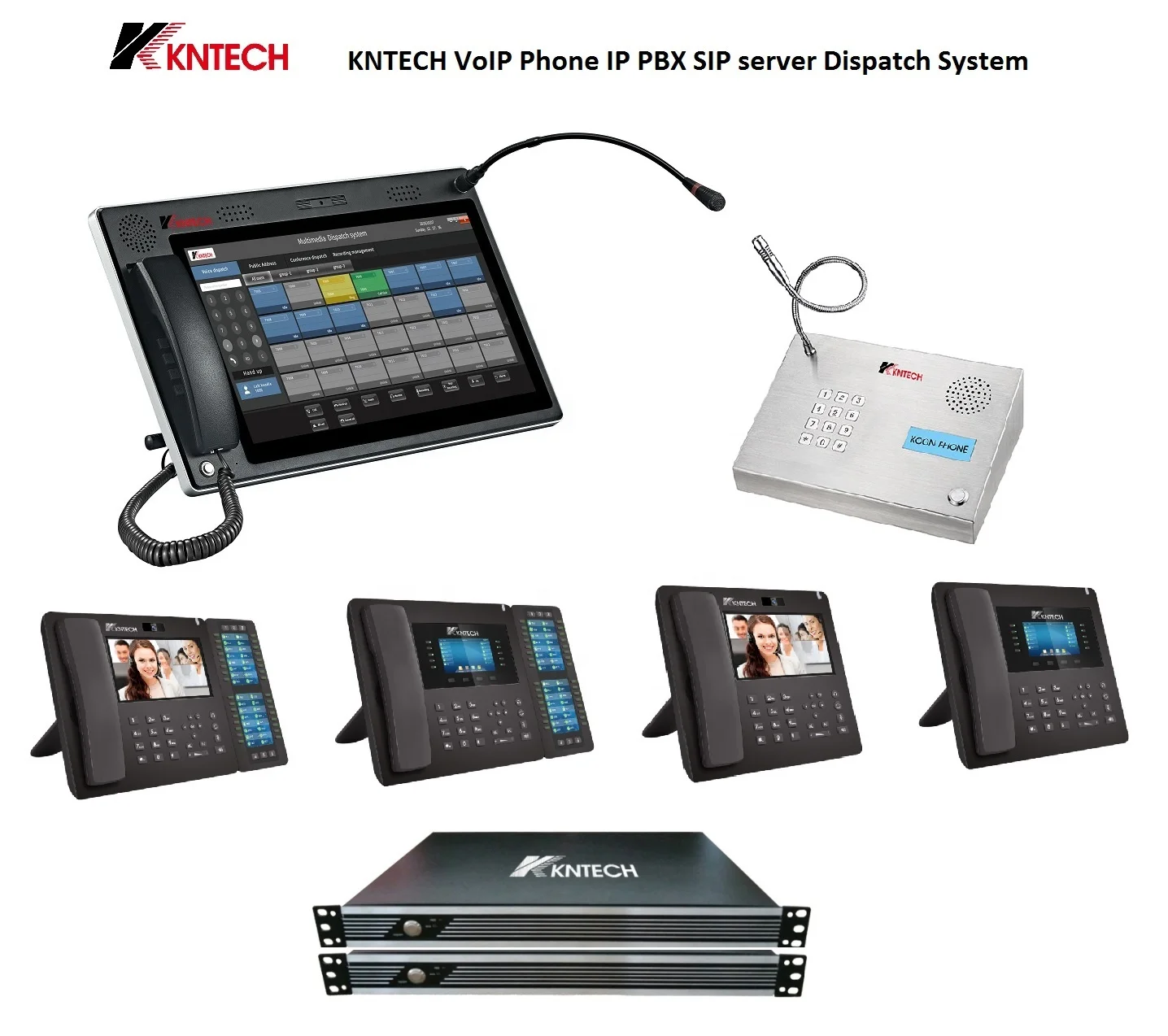

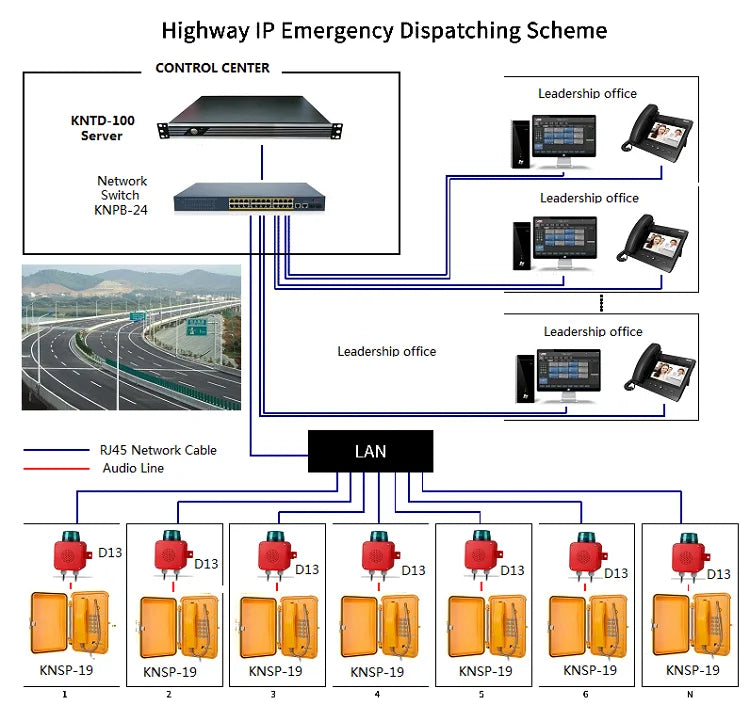

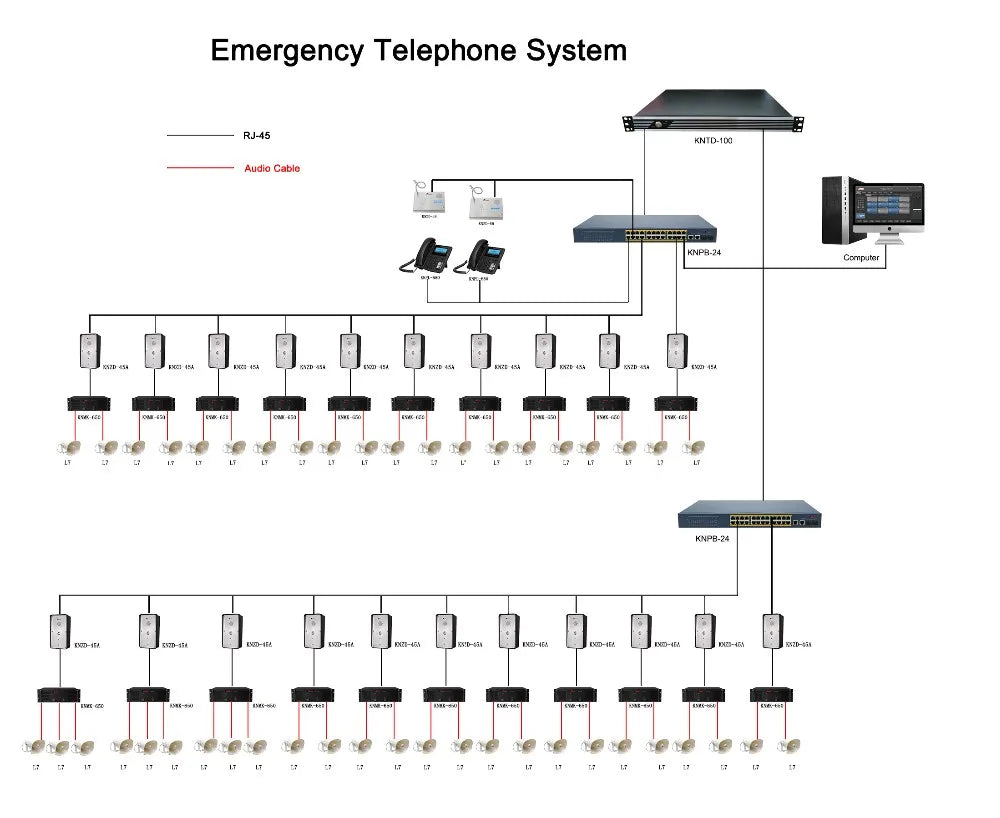

Except terminal, we also provide customer complete system and solution.

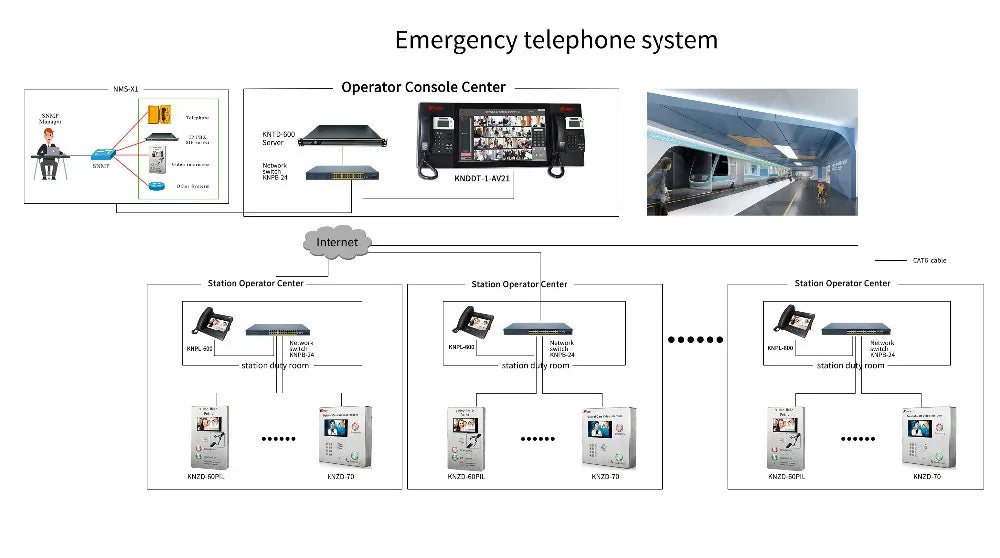

Telecom solution, IP PBX, telephone self-diagnostic system, PAGA system, customization function, etc.
HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.
With professional and strong R&D team, we offer further customization in firmware, software, and solution requirement.
High productivity factory, short lead time and fast delivery for you.
We KNTECH team are always here at your prompt and best service.

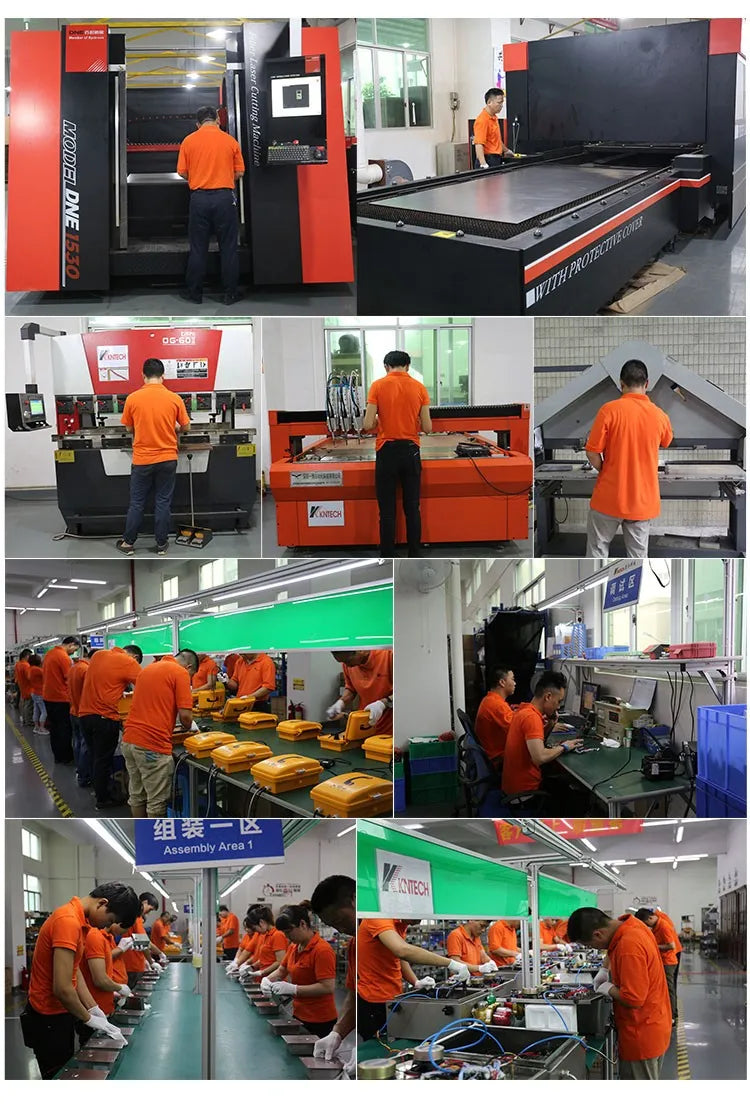

Production Equipment and Production Plant.
